DESCRIPTION
DESCRIPTION

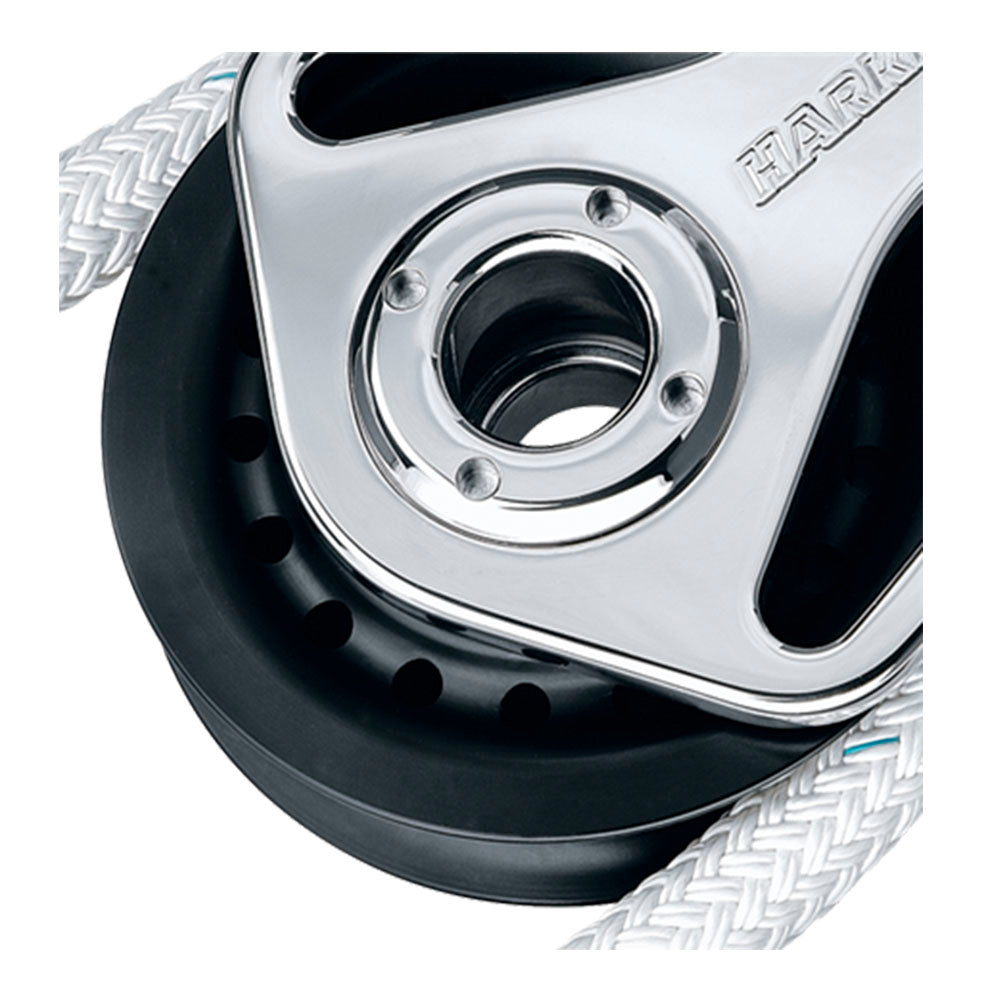

Stainless sideplates are mirror-polished for durability and unmatched esthetics. The ultralight composite bearing system (ULC) rides on a heat-treated stainless steel inner race to handle extremely high loads.
Our Part # HARHC9078 | Mfr. Part # HC9078
FEATURES
FEATURES

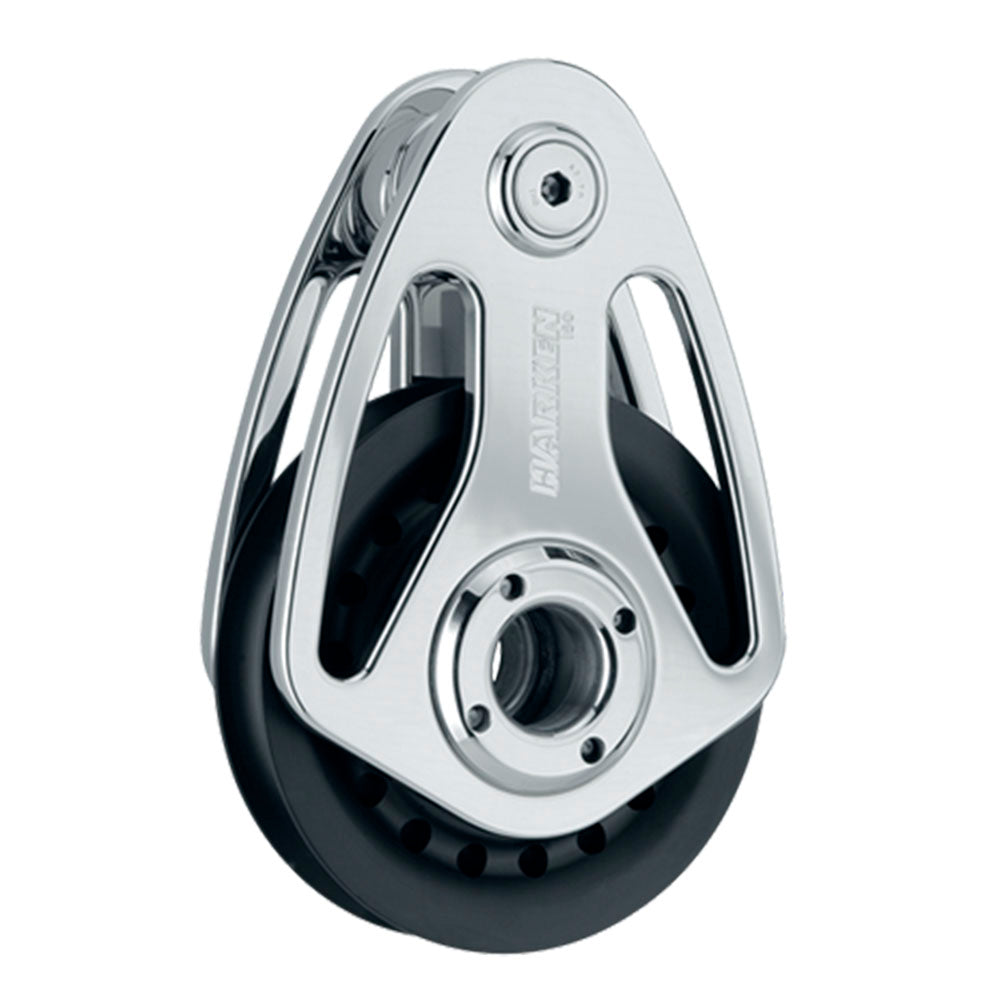

- 100mm single teardrop block.
- Made from durable stainless steel.
- Low-profile design for tight spaces.
- Optimized for megayacht use.
- Minimizes snagging and interference.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Sheave Ø | 4.0 in | 10.1 cm |
| Length | 6 3/8 in | 162.0 mm |
| Weight | 2.98 lb | 1.35 kg |
| Max line Ø | 5/8 in | 16.0 mm |
| Maximum working load | 11025.0 lb | 5000.0 kg |
| Breaking load | 22050.0 lb | 10000.0 kg |
