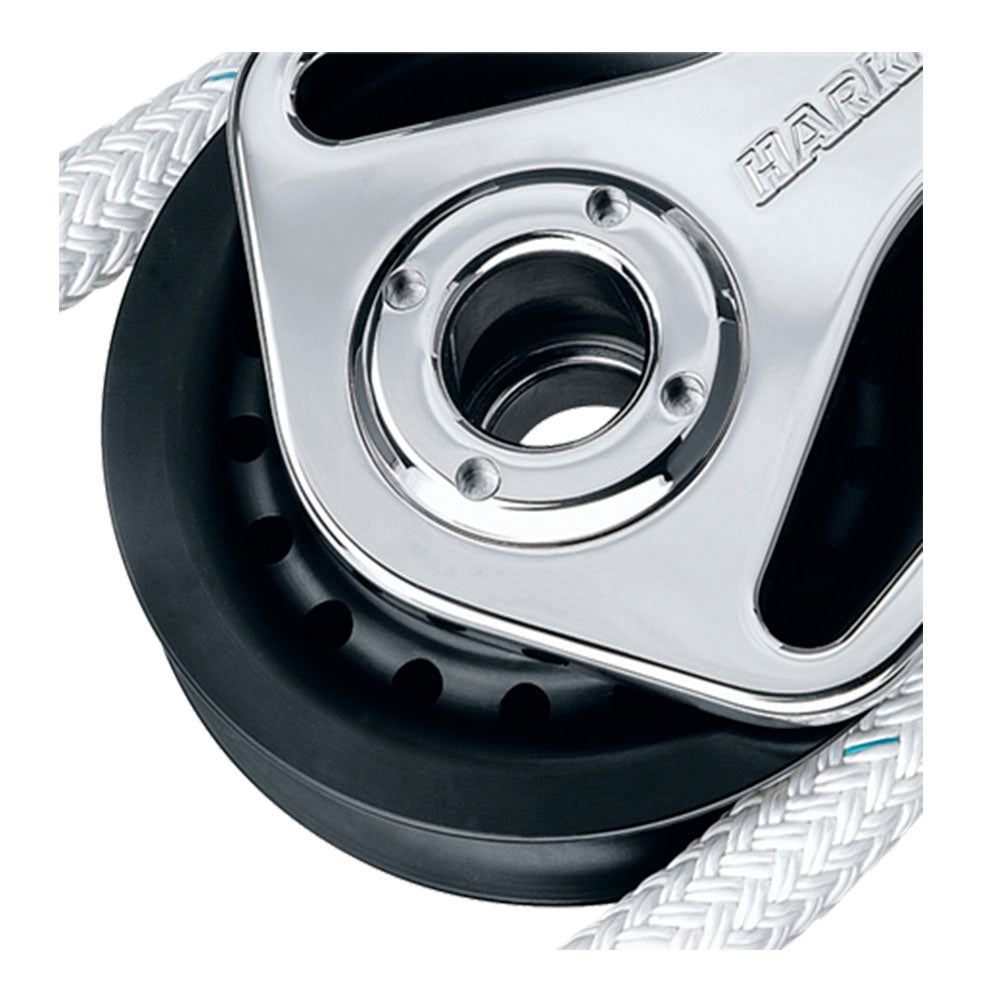

Stainless sideplates are mirror-polished for durability and unmatched esthetics. The ultralight composite bearing system (ULC) rides on a heat-treated stainless steel inner race to handle extremely high loads.
Our Part # HARHC9082 | Mfr. Part # HC9082
FEATURES
FEATURES

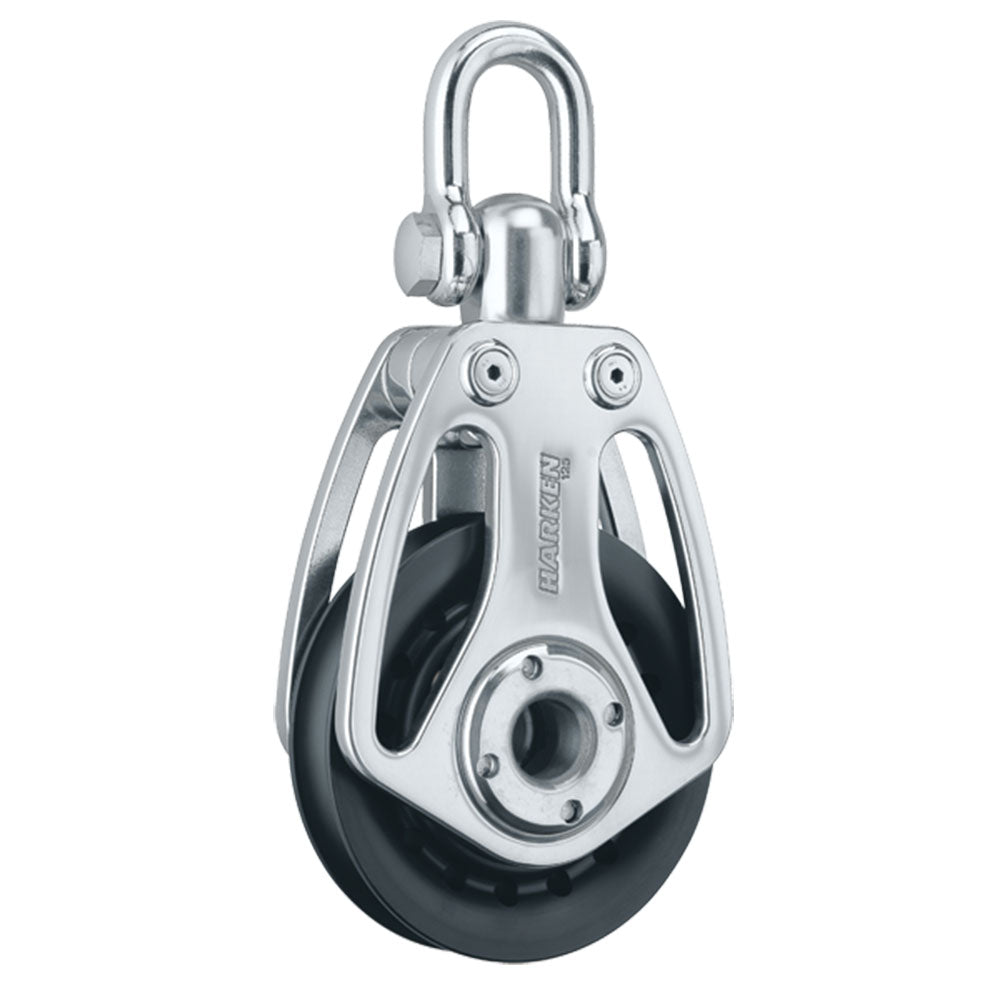

- 125mm single swivel block.
- Constructed from robust stainless steel.
- High-load capacity for demanding applications.
- Low-friction bearing system ensures smooth operation.
- Swivel head for versatile line management.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Sheave | 4 15/16 in | 125.0 mm |
| Length | 10 3/8 in | 263.5 mm |
| Weight | 6.09 lb | 2.76 kg |
| Maximum line | 3/4 in | 19.0 mm |
| Maximum working load | 15435.0 lb | 7000.0 kg |
| Breaking load | 30870.0 lb | 14000.0 kg |
