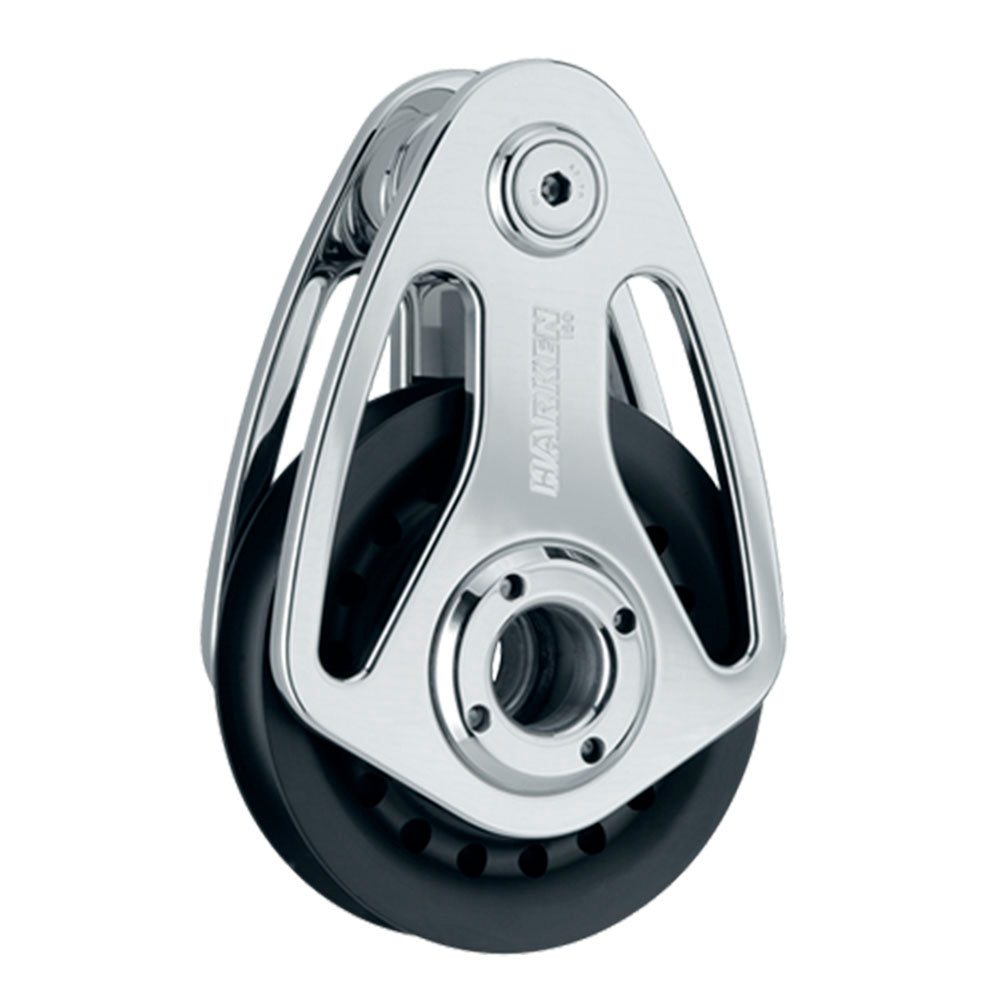

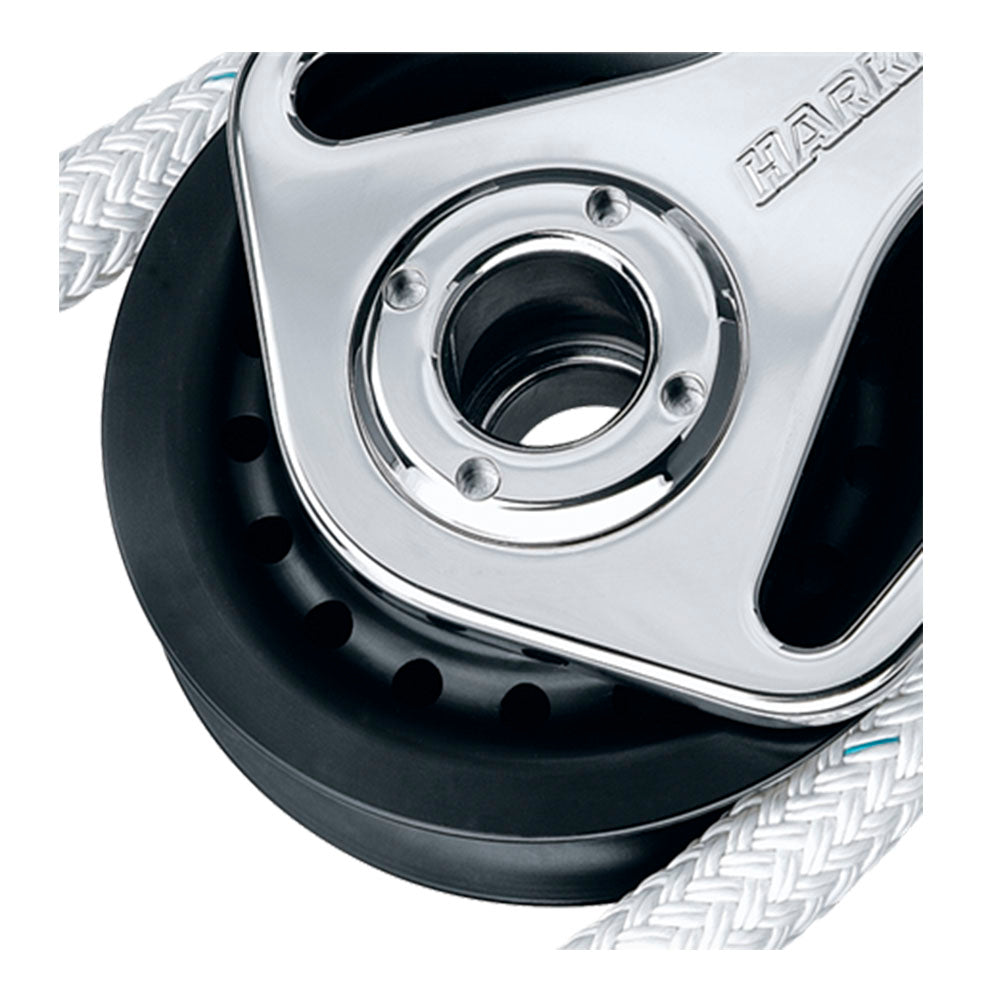

Stainless sideplates are mirror-polished for durability and unmatched esthetics. The ultralight composite bearing system (ULC) rides on a heat-treated stainless steel inner race to handle extremely high loads.
Our Part # HARHC9083 | Mfr. Part # HC9083
Technical Information
Technical Information
| Description | Imperial | Metric |
|---|---|---|
| Sheave Ø | 5.0 in | 125.0 mm |
| Length | 7 1/2 in | 190.5 mm |
| Weight | 4.7 lb | 2.11 kg |
| Max line Ø | 3/4 in | 19.0 mm |
| Maximum working load | 15435.0 lb | 7000.0 kg |
| Breaking load | 30870.0 lb | 14000.0 kg |
