DESCRIPTION
DESCRIPTION

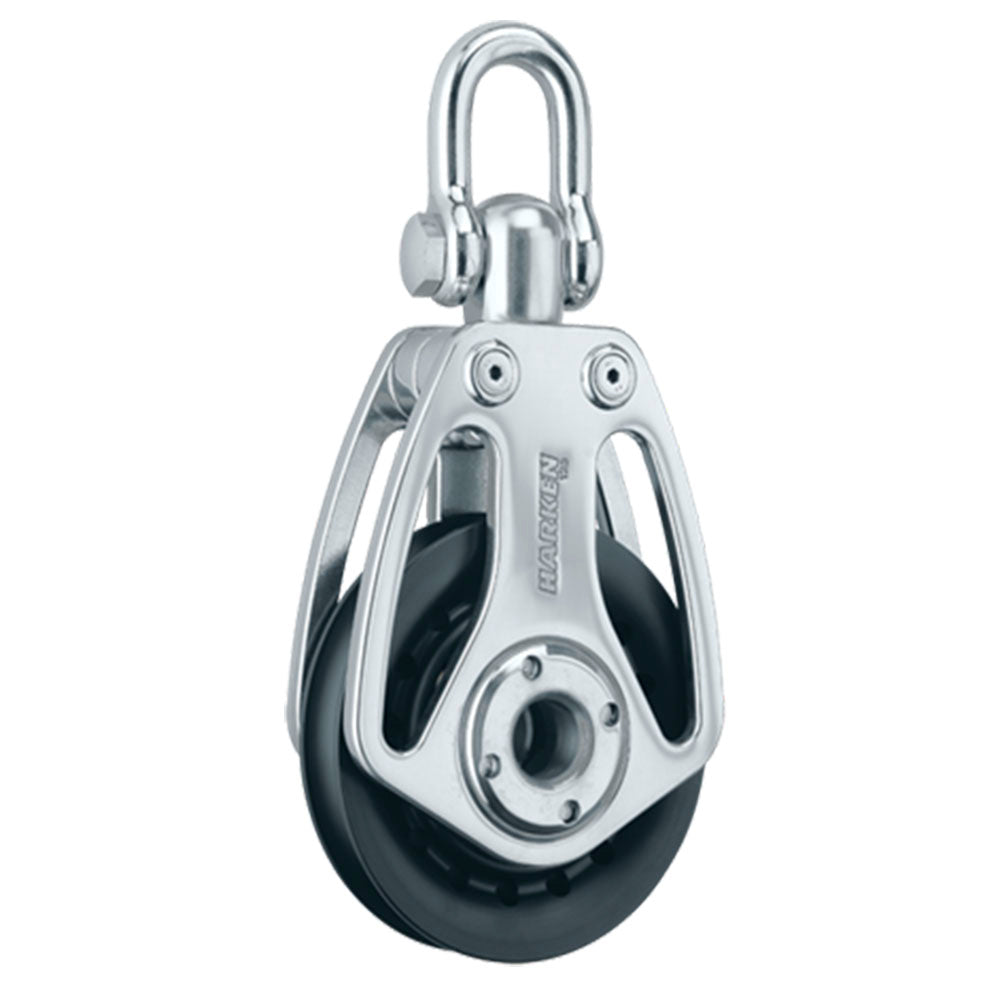

Stainless sideplates are mirror-polished for durability and unmatched esthetics. The ultralight composite bearing system (ULC) rides on a heat-treated stainless steel inner race to handle extremely high loads.
Our Part # HARHC9087 | Mfr. Part # HC9087
FEATURES
FEATURES
- 150mm single swivel block.
- Premium stainless steel for extreme durability.
- Swivel head allows dynamic line angle changes.
- High working load capacity.
- Precision bearings reduce friction efficiently.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Sheave | 5 15/16 in | 15.0 cm |
| Length | 12 7/8 in | 327.0 mm |
| Weight | 11.3 lb | 5.12 kg |
| Maximum line | 1.0 in | 25.0 mm |
| Maximum working load | 19405.0 lb | 8800.0 kg |
| Breaking load | 38810.0 lb | 17600.0 kg |
