DESCRIPTION
DESCRIPTION

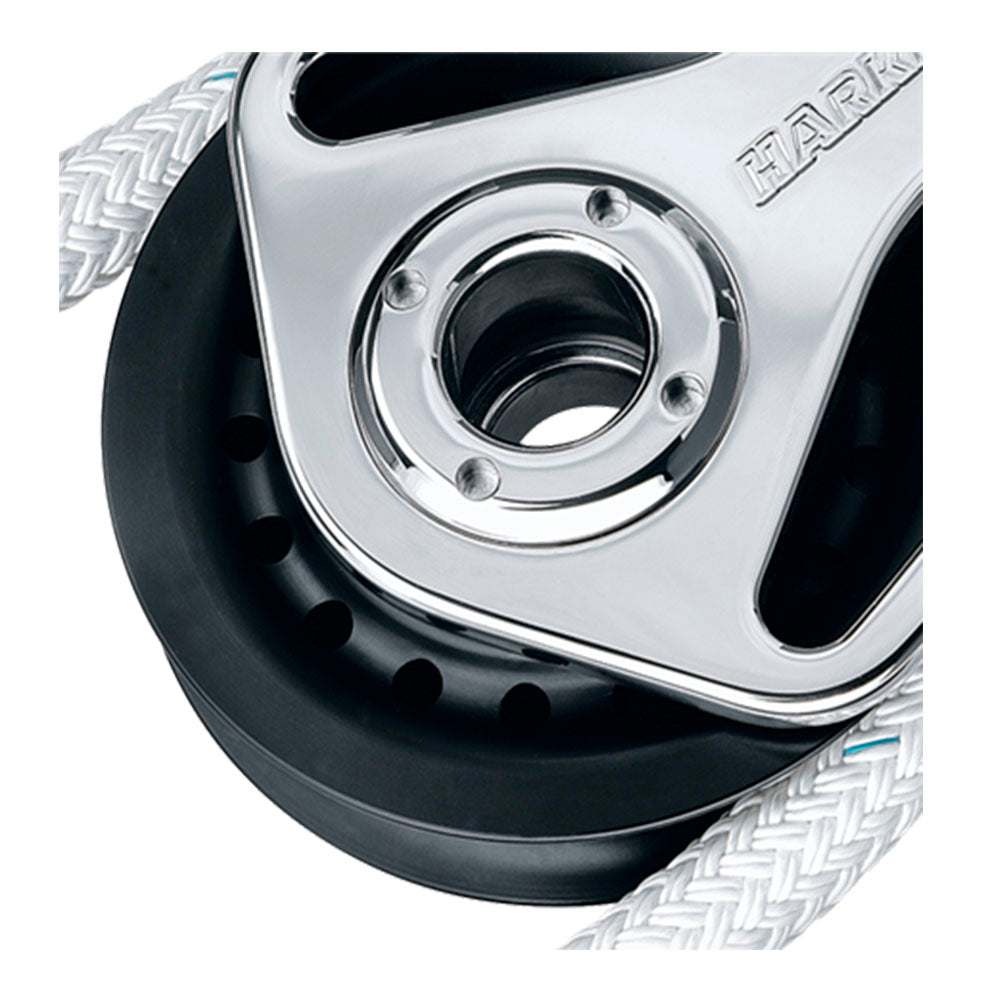

Stainless sideplates are mirror-polished for durability and unmatched esthetics. The ultralight composite bearing system (ULC) rides on a heat-treated stainless steel inner race to handle extremely high loads.
Our Part # HARHC9092 | Mfr. Part # HC9092
FEATURES
FEATURES

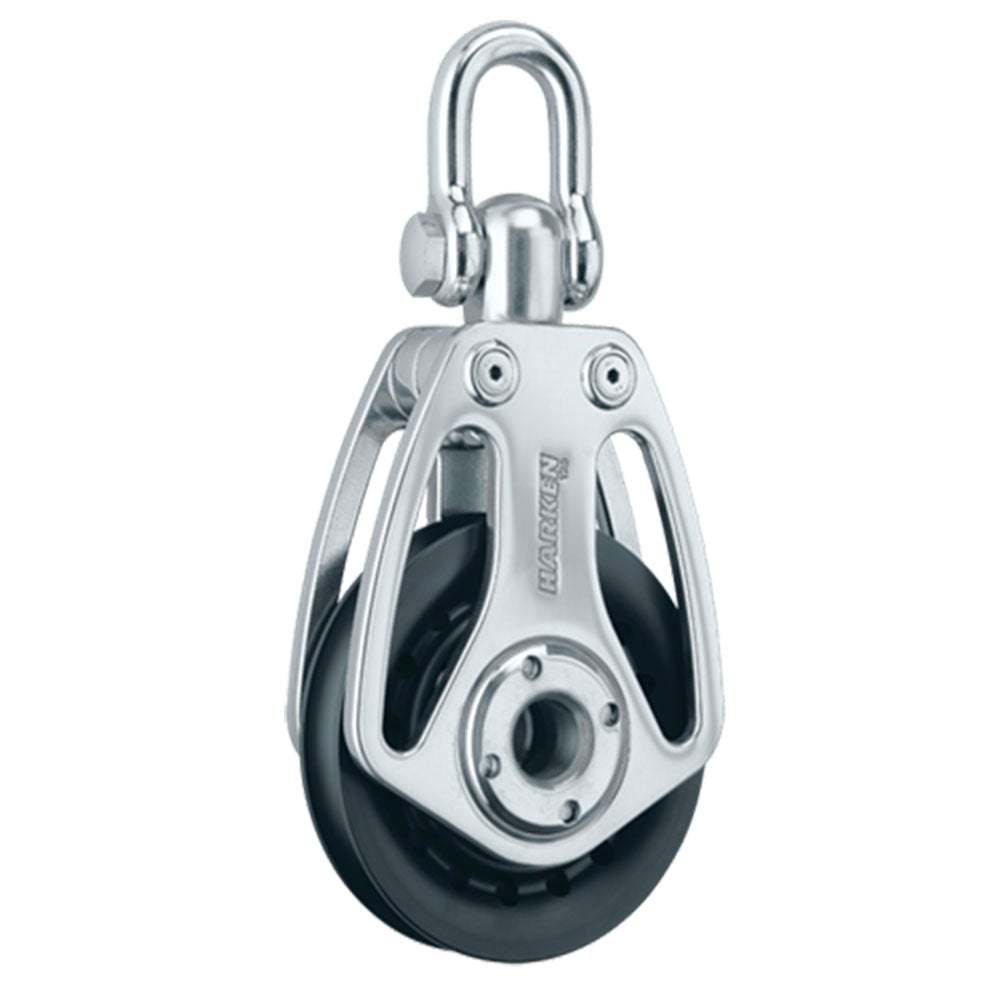

- 175mm single swivel block.
- Premium stainless steel for ultimate strength.
- Swivel head provides maximum articulation.
- Exceptional working load capacity.
- Advanced bearing system for minimal friction.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Sheave | 6 7/8 in | 175.0 mm |
| Length | 16 15/16 in | 414.0 mm |
| Weight | 18.99 lb | 8.59 kg |
| Maximum line | 1.0 in | 25.0 mm |
| Maximum working load | 28225.0 lb | 12800.0 kg |
| Breaking load | 56450.0 lb | 25600.0 kg |
