DESCRIPTION
DESCRIPTION

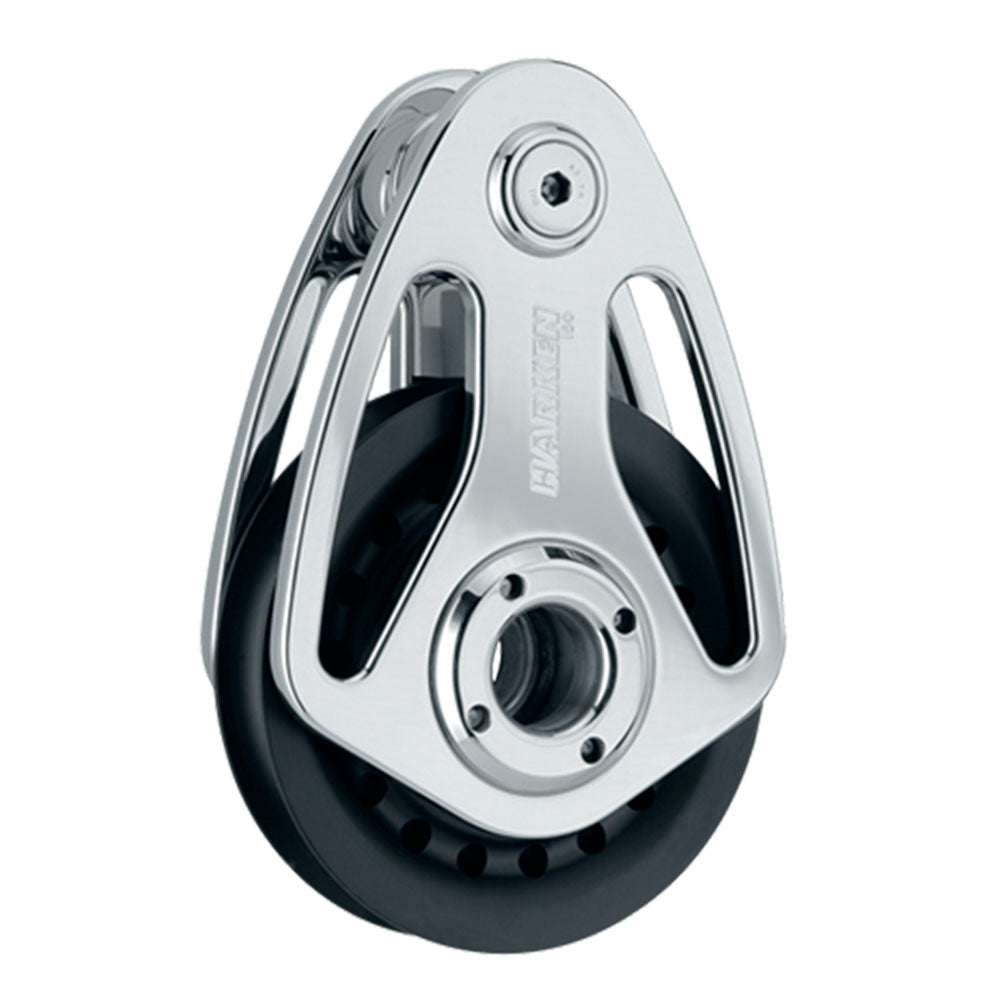

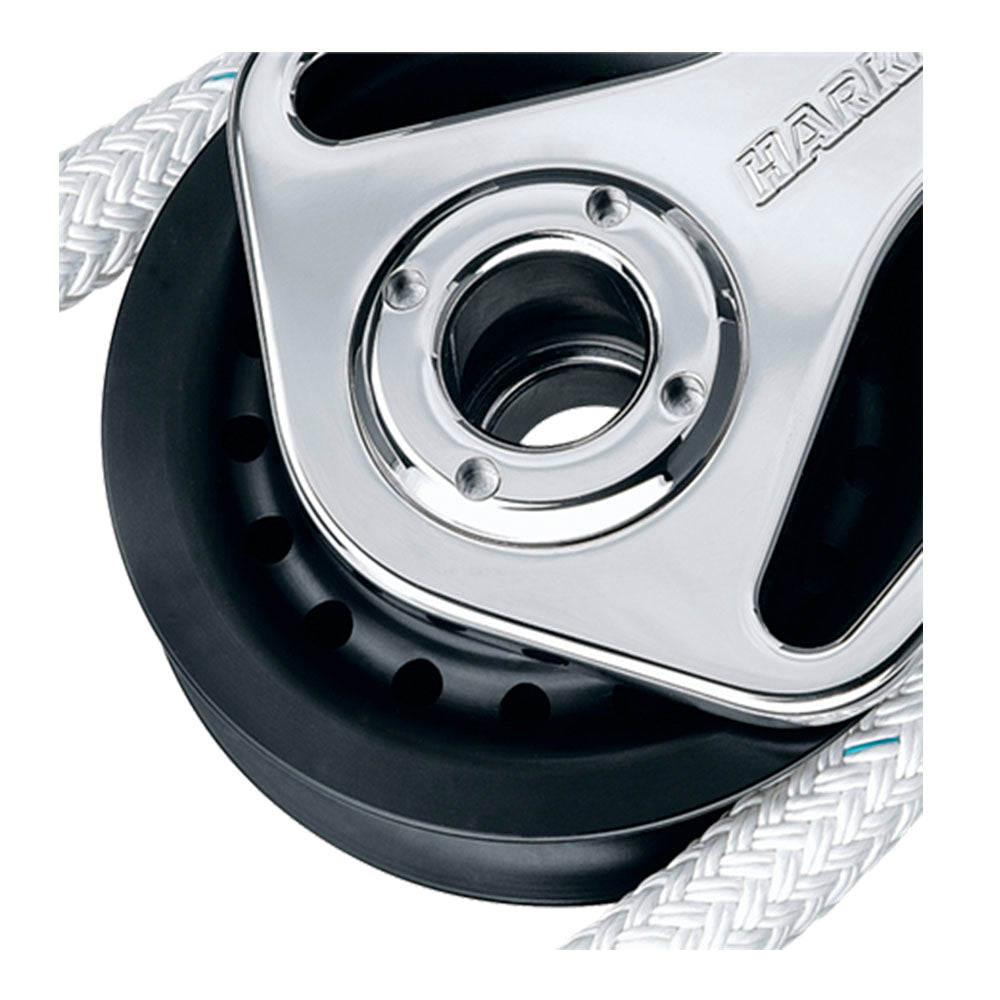

Stainless sideplates are mirror-polished for durability and unmatched esthetics. The ultralight composite bearing system (ULC) rides on a heat-treated stainless steel inner race to handle extremely high loads.
Our Part # HARHC9093 | Mfr. Part # HC9093
FEATURES
FEATURES
- 175mm single teardrop block.
- Heavy-duty stainless steel frame.
- Teardrop shackle for fixed, secure mounting.
- Built for very high static loads.
- Efficient low-friction sheave.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Sheave Ø | 6 7/8 in | 175.0 mm |
| Length | 10 1/2 in | 267.0 mm |
| Weight | 12.02 lb | 5.5 kg |
| Max line Ø | 1.0 in | 25.0 mm |
| Maximum working load | 33075.0 lb | 15000.0 kg |
| Breaking load | 66150.0 lb | 30000.0 kg |
