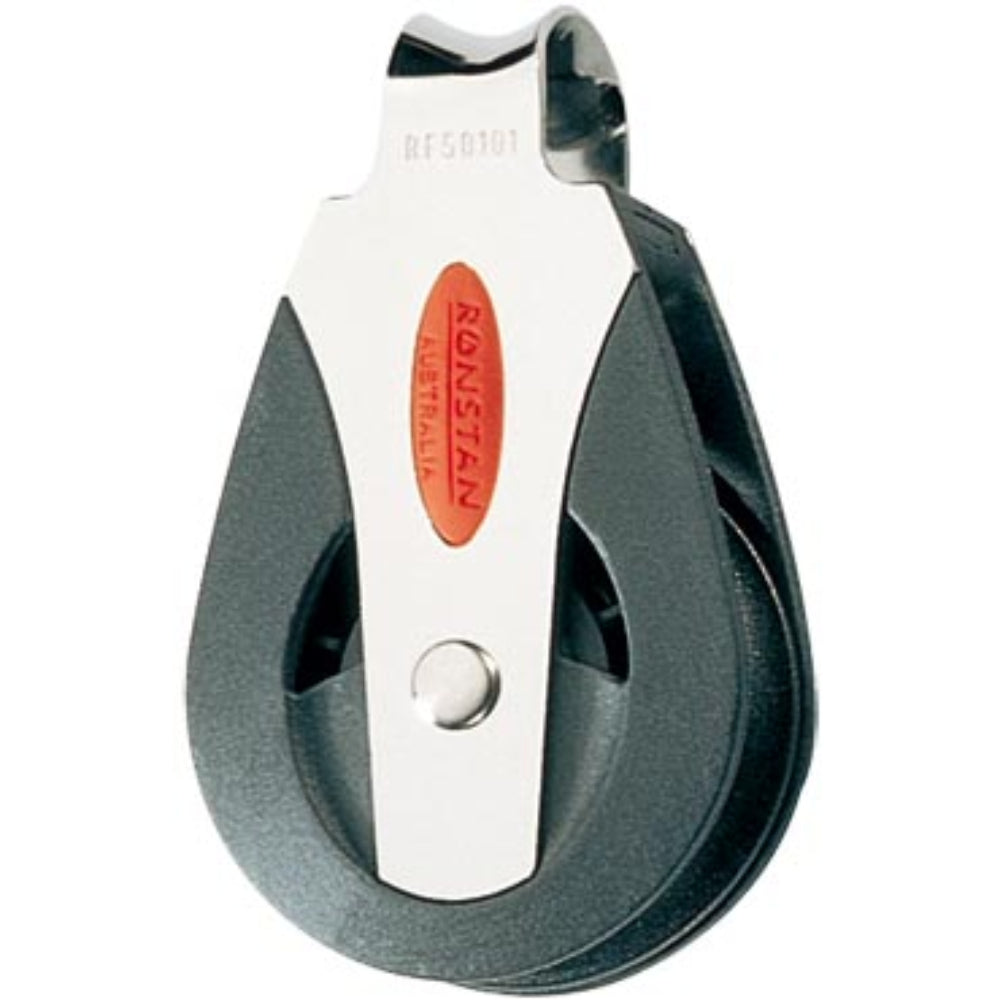

Ronstan Series 50 BB Block, Single Loop Top (RF50101)
SKU:
RON-RF50101
|
Manuf. Code:
RF50101
25% off
Unit price
/
Unavailable
Ronstan Series 50 BB Block, Single Loop Top (RF50101) is backordered and will ship as soon as it is back in stock.
Knowledgeable STAFF
Ronstan Series 50 BB Block, Single Loop Top (RF50101)
Unit price
/
Unavailable
Description
Description
Sheaves running on Acetal or Torlon ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.
Our Part # RON-RF50101 | Ronstan Part # RF50101
Features
Features
Features:
- Low friction, 2-stage ball bearing system
- High static and dynamic load capacity
- Lightweight
- Cheek cut-outs for easy bearing maintenance
Technical Information
Technical Information
| Description | Imperial | Metric |
|---|---|---|
| Sheave Ø | 2.00 in. | 50.00 mm. |
| Maximum Rope | 1/2 in. | 12.00 mm. |
| Maximum Working Load | 1102.50 lb. | 500.00 kg. |
| Breaking Load | 3307.50 lb. | 1500.00 kg. |
| Weight | 3.42 oz. | 97.00 gr. |
