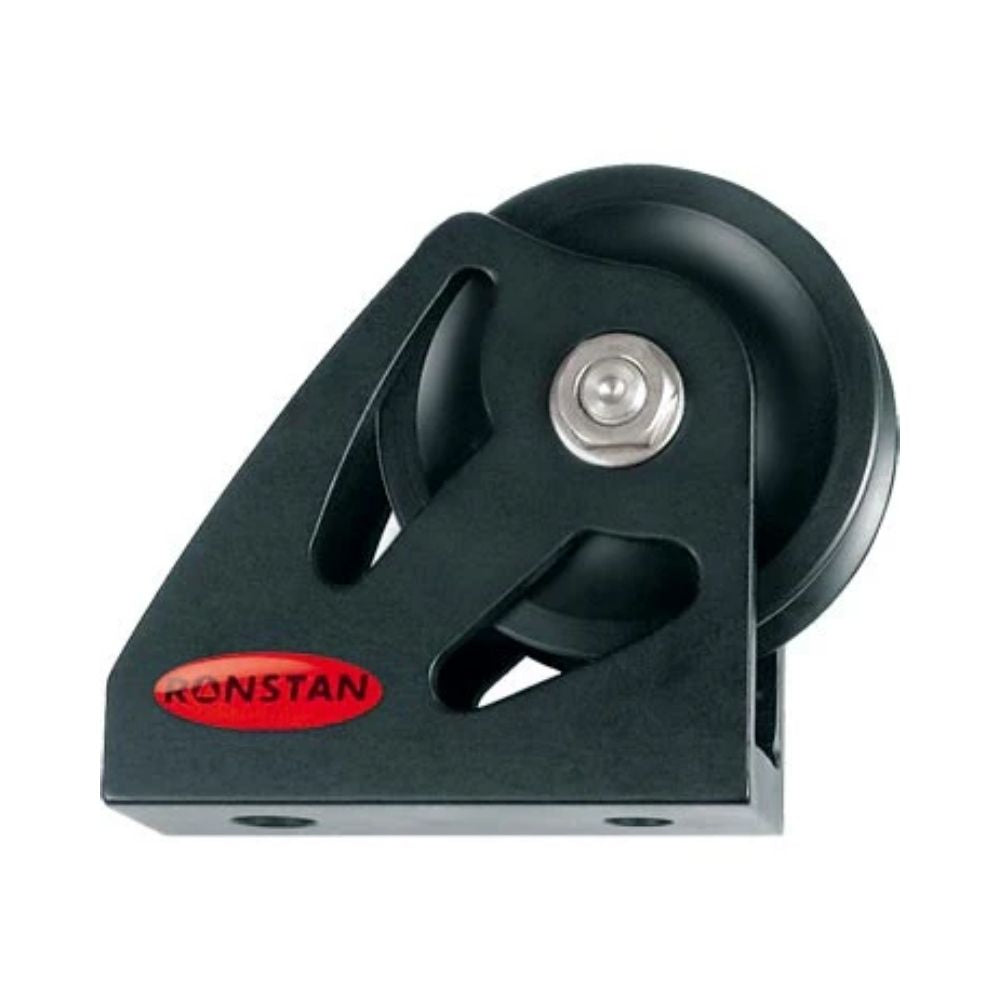

Ronstan Series 60 AP Block, Single Upright Lead (RF61171)
SKU:
RONRF61171
|
Manuf. Code:
RF61171
23% off
Unit price
/
Unavailable
Ronstan Series 60 AP Block, Single Upright Lead (RF61171) is backordered and will ship as soon as it is back in stock.
Knowledgeable STAFF
Ronstan Series 60 AP Block, Single Upright Lead (RF61171)
Unit price
/
Unavailable
Description
Description
Ball Bearing models have Torlon needle rollers for axial loads, and acetal ball bearings for side thrust loads. Blocks can be disassembled for servicing or customisation
Our Part # RONRF61171 | Mfr. Part # RF61171
Features
Features
- High static and dynamic load capacity
- Keeps lines close to the deck
- Cheek cut-outs for easy bearing cleaning and maintenance
- Blocks can be disassembled for servicing
Technical Information
Technical Information
| Description | Imperial | Metric |
|---|---|---|
| Sheave Ø | 2 1/3 in. | 60.00 mm. |
| Max. Rope | 5/9 in. | 14.00 mm. |
| Maximum Working Load | 2205.00 lb. | 1000.00 kg. |
| Breaking Load | 6615.00 lb. | 3000.00 kg. |
| Weight | 7.23 oz. | 205.00 gr. |
