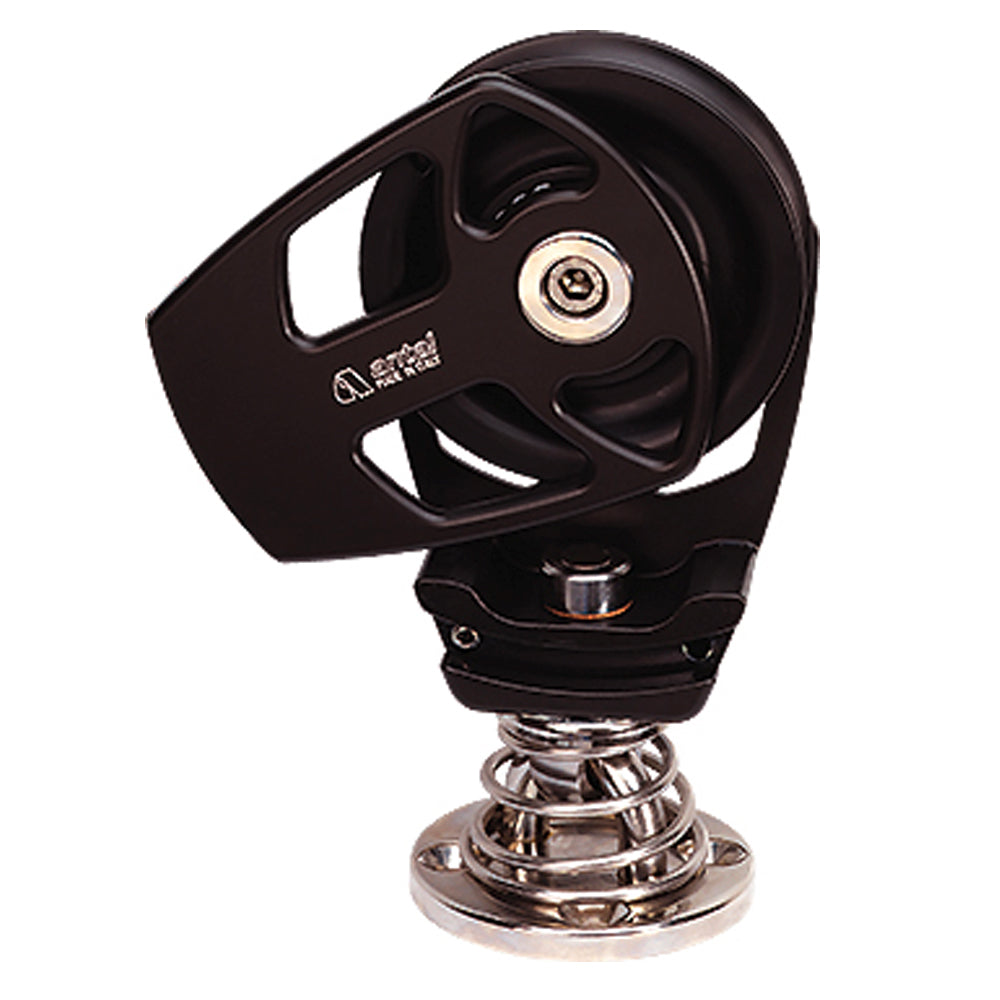

Snatch block on screwed pad-eye, sheave Ø 90, SWL 2500 kg.
The cheekplate revolves around the sheave axle allowing the block to open; a safety pin, which engages automatically on closing, stops the block from opening accidentally. Materials: high-strength resin sheaves, hard anodized alloy cheekplates.
Our Part # ANT928095 | Mfr. Part # 928.095
Technical Information
Technical Information
| Description | Imperial | Metric |
|---|---|---|
| Sheave diameter | 3 1/2 in. | 90.00 mm. |
| Side bearing | Delrin balls | |
| Radial bearing | Composite fibre | |
| Weight | 2.51 lb. | 1.14 kg. |
| Max line | 5/7 in. | 18.00 mm. |
| Safe Working Load | 5512.50 lb. | 2500.00 kg. |
| Pad eye base | 3 1/7 in. | 80.00 mm. |
