Description
Description

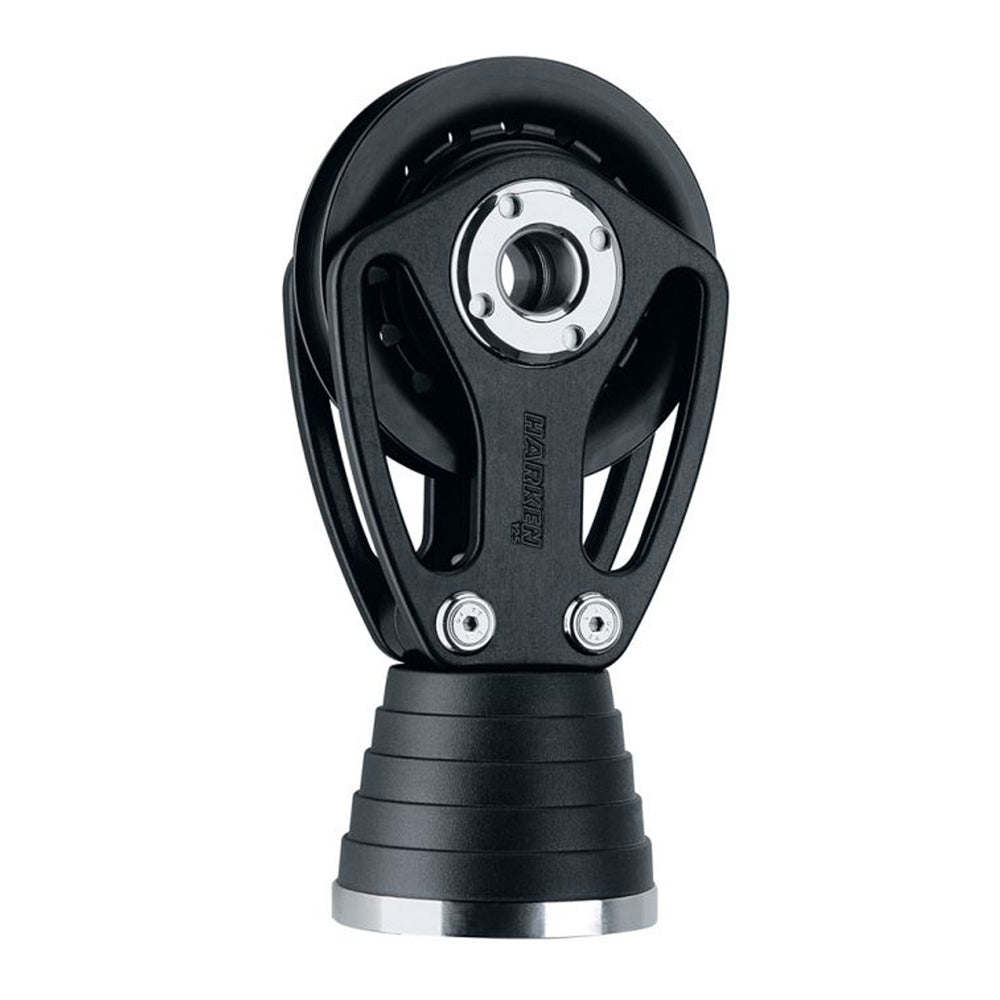

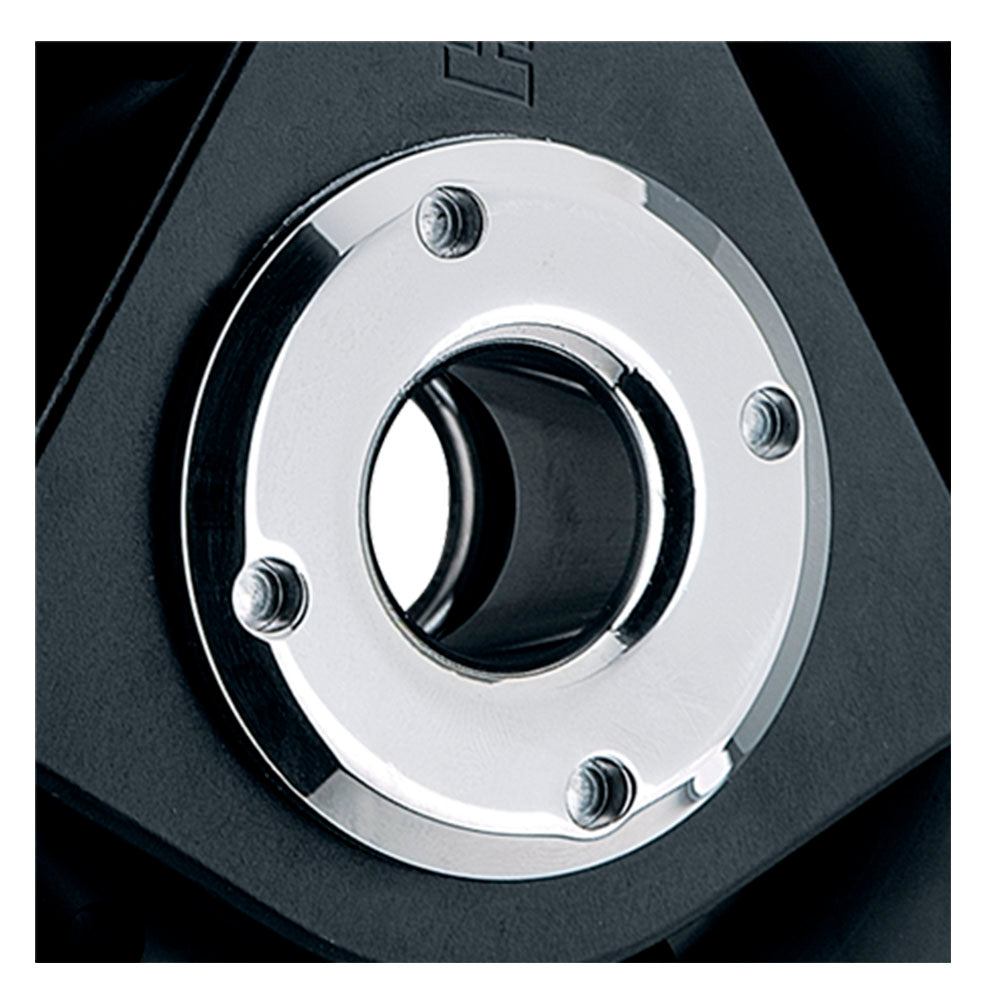

Sideplates are constructed of hardcoat-anodized 6061-T6 aluminum for strength and corrosion resistance. The ultralight composite bearing system (ULC) rides on a heat-treated stainless steel inner race to handle extremely high loads.
Our Part # HARHC8675 | Mfr. Part # HC8675
Technical Information
Technical Information
| Description | Imperial | Metric |
|---|---|---|
| Sheave | 6.0 in | 15.0 cm |
| Length | 11 2/3 in | 297.0 mm |
| Weight | 10.3 lb | 4.67 kg |
| Maximum Line | 1.0 in | 25.0 mm |
| Maximum working load | 22050.0 lb | 10000.0 kg |
| Breaking Load | 44100.0 lb | 20000.0 kg |
