Description
Description

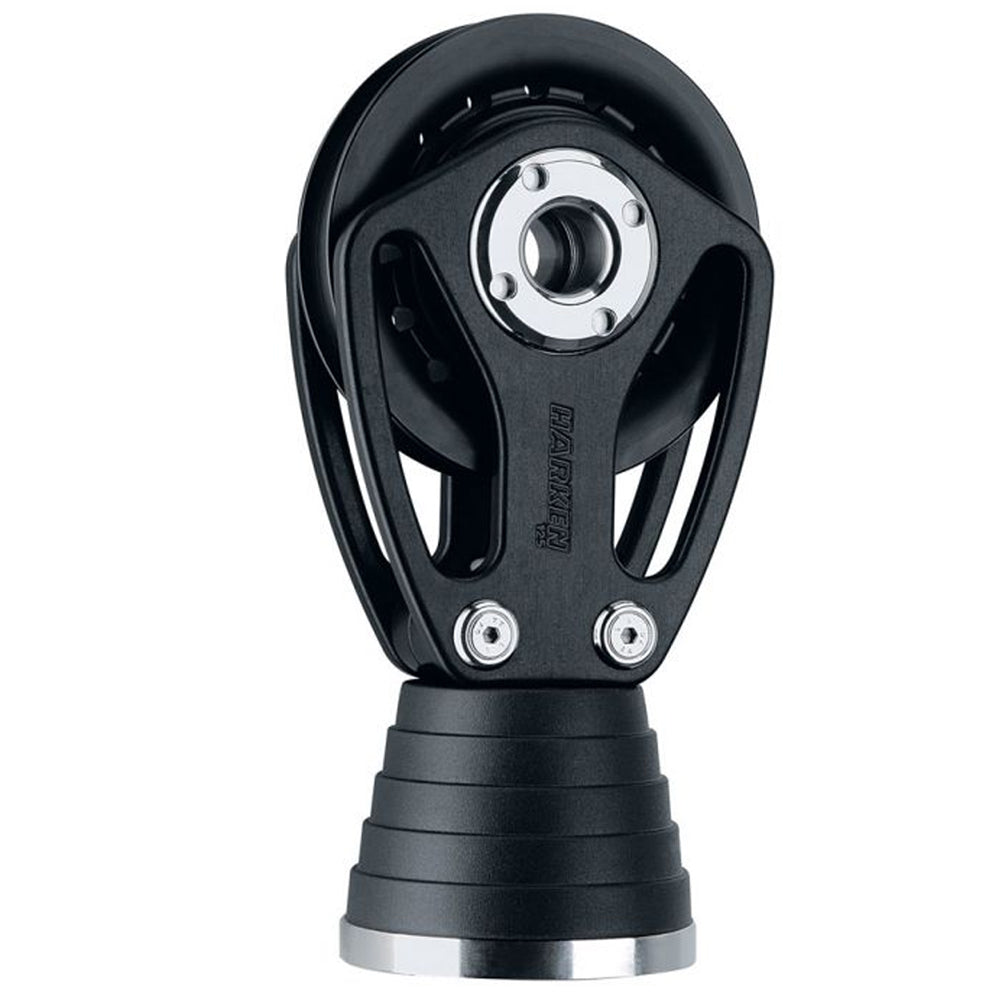

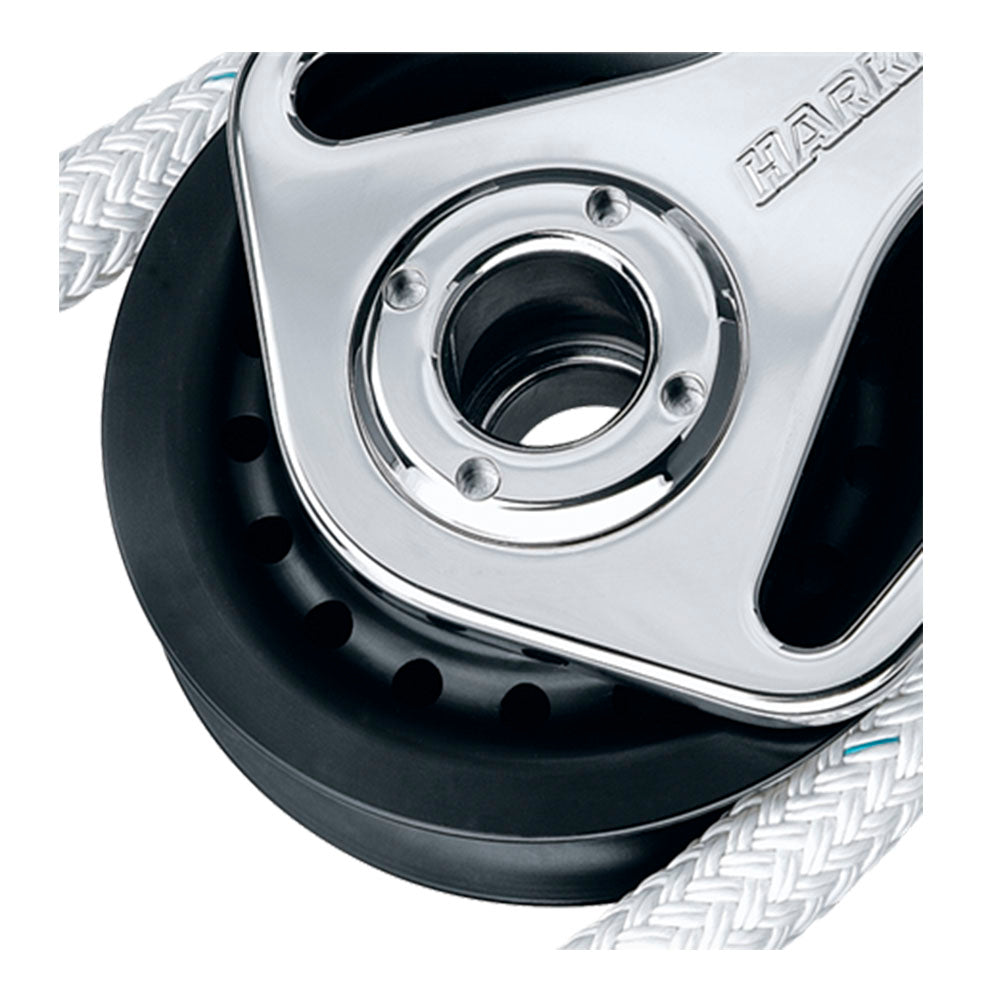

Sideplates are constructed of hardcoat-anodized 6061-T6 aluminum for strength and corrosion resistance. The ultralight composite bearing system (ULC) rides on a heat-treated stainless steel inner race to handle extremely high loads.
Our Part # HARHC8932 | Mfr. Part # HC8932
Technical Information
Technical Information
| Description | Imperial | Metric |
|---|---|---|
| Sheave | 6 8/9 in | 175.0 mm |
| Length | 13 1/4 in | 336.5 mm |
| Weight | 14.02 lb | 6.36 kg |
| Maximum Line | 1.0 in | 25.0 mm |
| Maximum working load | 33075.0 lb | 15000.0 kg |
| Breaking Load | 66150.0 lb | 30000.0 kg |
