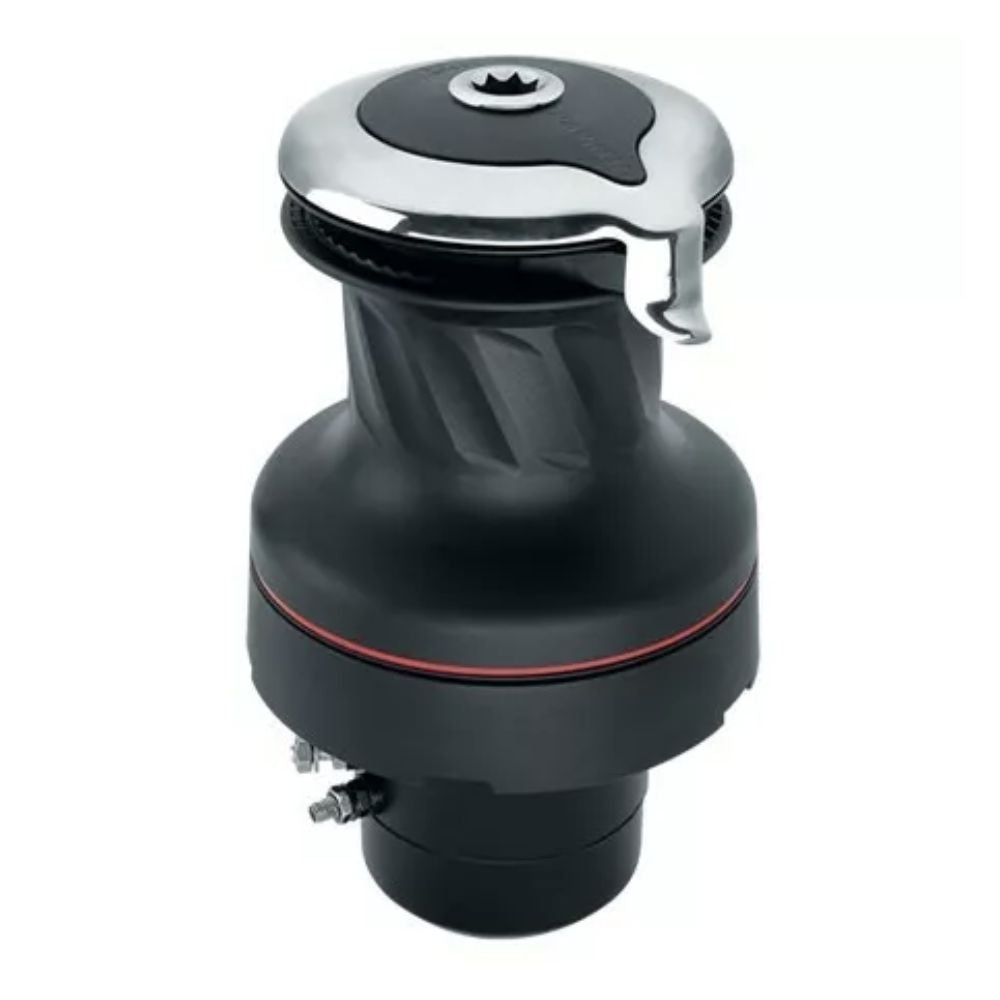

Harken UniPower Radial Winch Alum 24 Volt w/DFCB
Unit price
/
Unavailable
DESCRIPTION
DESCRIPTION
The UniPower is a single-speed winch that combines the advantages of a low-profile manual winch with the power of a 12, 24, or 48 volt, low-amp-draw motor. What makes it unique is that the motor is partially imbedded inside the drum, so that it extends only 105 mm (4 1/8 in.) below the winch base - a critical feature for small boats where space under the cabintop is limited.
Our Part # HAR500UPWA24 | Mfr. Part # 500UPWA24
FEATURES
FEATURES
- 24-volt electric UniPower Radial Winch.
- Robust, lightweight aluminum drum.
- Integrated dual-function control box (DFCB).
- Offers powerful, consistent line pulling.
- Ideal for larger yacht applications.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Height | 7 7/8 in | 20.0 cm |
| Weight | 15.0 lb | 6.7 kg |
| Maximum line dia. | 9/16 in | 14.0 mm |
| Fasteners | 1/4 SH in | M6 SH mm |
| Fastener circle | 4 13/16 in | 123.0 mm |
| Minimum line dia. | 5/16 in | 8.0 mm |
| E | 1 7/8 in | 48.0 mm |
| F | 3.0 in | 76.0 mm |
| Material | Aluminum | |
| Base dia. | 5 3/4 in | 146.0 mm |
| Available power | Electric vertical 24V | |
| Maximum pulling load | 1102.0 lb | 500.0 kg |
| G | 3 3/8 in | 85.0 mm |
| Configuration | Self-tailing | |
| Speed | 1 | |
| Drum dia. | 3 7/8 in | 99.0 mm |
| Line entry height upper | 3 1/4 in | 83.0 mm |
| Voltage | 24 | |
