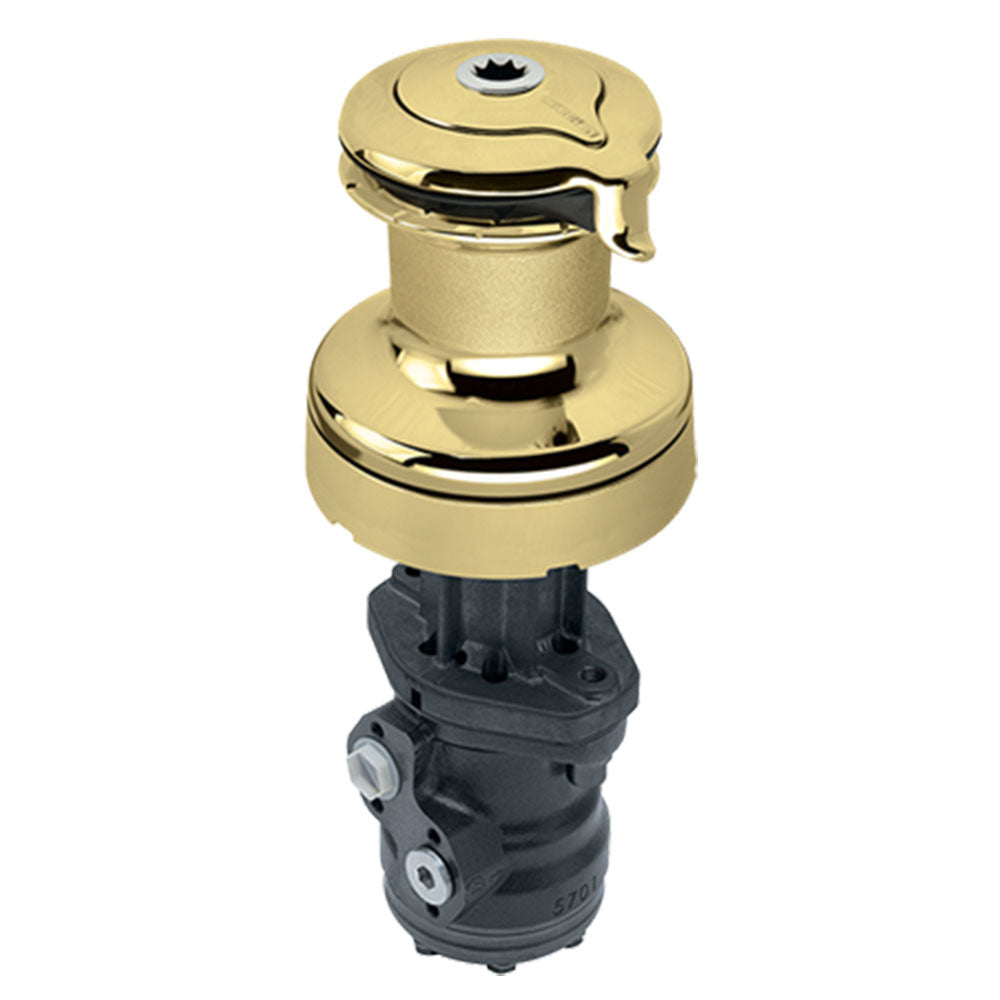

Harken Hydraulic Winch Radial Size 60 - Bronze All / Two Speed (60.2STHBBB)

SKU: HAR602STHBBB  |  Manuf. Code: 60.2STHBBB
List Price:  12942.00 USD
$11,000.80 USD
You Save $1942 This Week!

Description

Hydraulic Radial winches let you relax in luxury and trim any size sail with the push of a button.

The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails. High-strength composite roller bearings and bushings reduce friction under load.

Load-carrying gears and pins are 17-4 PH stainless steel for strength, corrosion resistance.

Motors attach to central drive shaft and drive through winch gears for two-speed mechanical advantage. Low-power first gear for fast trimming; higher-power second gear for fine-tuning loaded sheets. Efficient design allows smaller motor size.

Efficient design allows smaller motor size.

Our Part # HAR602STHBBB | Mfr. Part # 60.2STHBBB

Technical Information

DescriptionImperialMetric
MaterialBronzeBronze

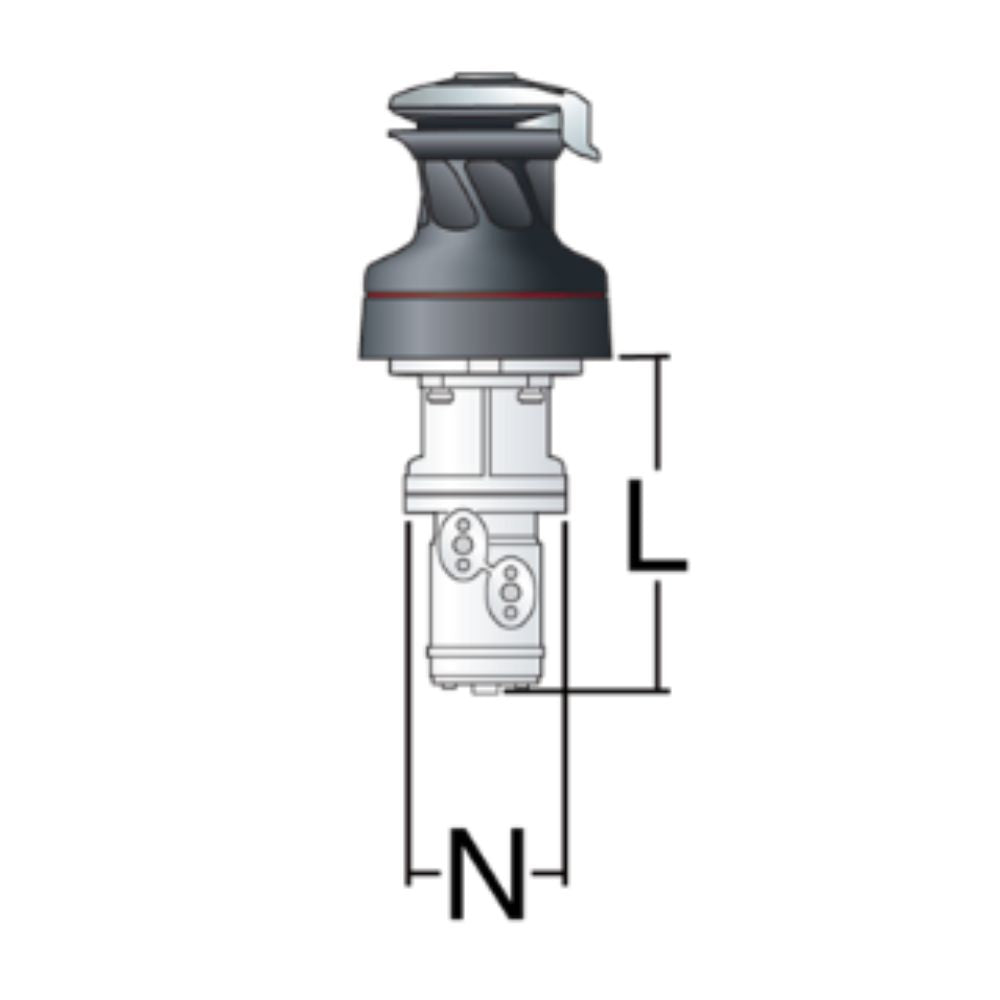

Hydraulic L9 1/4 in234.0 mm
Hydraulic N5 1/8 in13.0 cm
ConfigurationSelf-TailingSelf-Tailing
Speed2.02.0
Drum4 3/4 in12.0 cm
Base9 5/16 in236.0 mm
Height9 11/16 in246.0 mm
Weight of Winch and Motor50.5 lb22.9 kg
Motor Weight16.6 lb8.0 kg
Line Entry Height4 9/16 in116.0 mm
Minimum Line5/16 in8.0 mm
Maximum Line5/8 in16.0 mm
Fastener Circle8.0 in204.0 mm
Fasteners5/16 HH, 5/16 SH inM8 HH, M8 SH mm
Number of Fasteners6.06.0
Gear Ratio - 14.84.8
Gear Ratio - 214.414.4
Power Ratio - 120.320.3
Power Ratio - 261.061.0
Available PowerHydraulicHydraulic
