This cost effective cable tensioning system utilizes high quality closed turnbuckle assemblies and surface mount Termination Studs. Installation is easy by simply drilling holes in your verticals for the cable to pass through. Tensioning is accomplished by the Termination Stud cap or top pulling against the end verticals/posts in the run. This system supports any type or style of post with available wire sizes ranging from 1/8" to 3/8". All hardware is made from high quality 316 grade stainless steel for superior corrosion resistance.

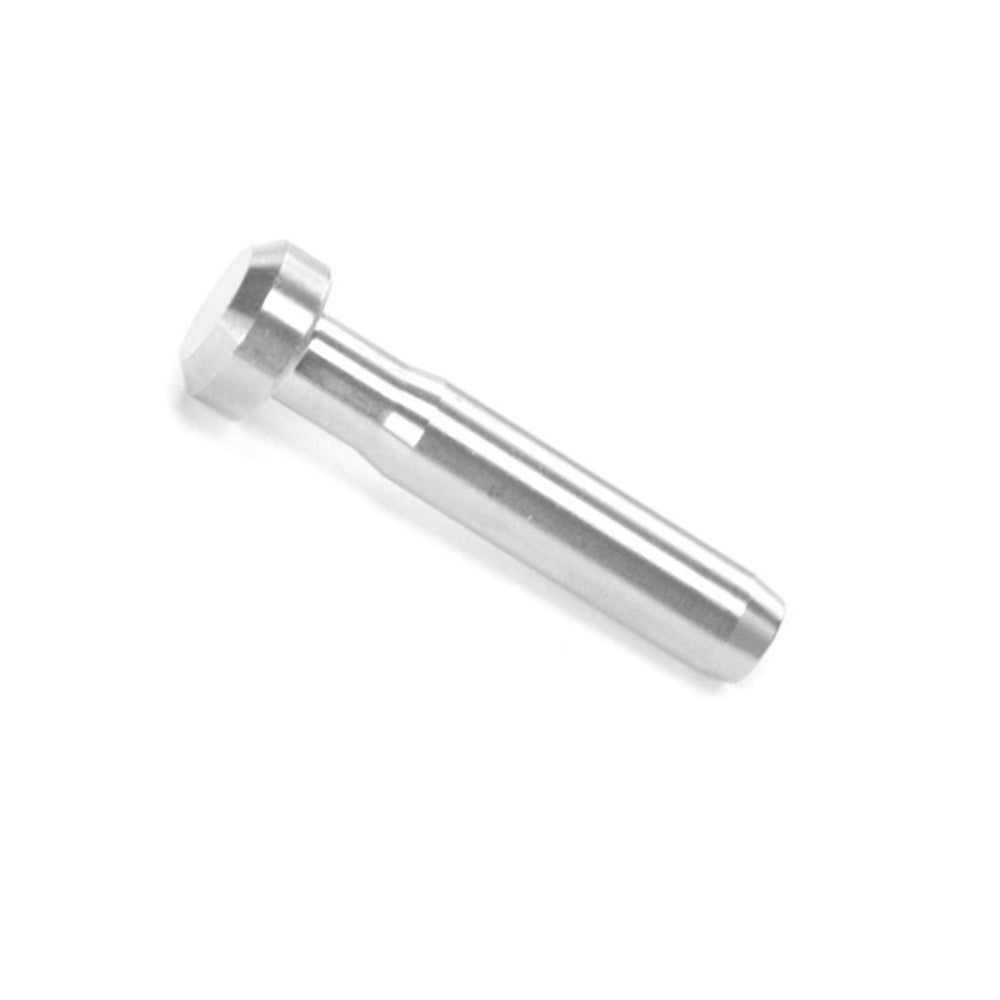

Our Part # HAYTSLL532 | Hayn Part # TSLL532
FEATURES
FEATURES
- Designed for 5/32 inch wire.
- Reliable lifeline termination stud.
- Premium marine-grade stainless steel.
- Provides a durable end fitting.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Overall Length | 2 in | 50.8 mm |
| Pin Diameter | 5/32 in | 4.0 mm |
| Inside Width | 5/8 in | 15.9 mm |
| Working Load Limit | 1,500 lb | 680.4 kg |
| Breaking Strength | 7,500 lb | 3,401.9 kg |
| Size | 32 in | 812.8 mm |
