Wichard Self-Locking D Shackle - Pin Dia: 5/16 in (8.0 mm) (1204W)

Wichard Self-Locking D Shackle - Pin Dia: 5/16 in (8.0 mm) (1204W)

Name: Wichard Self-Locking D Shackle - Pin Dia: 5/16 in (8.0 mm) (1204W)
Brand: Wichard
SKU: WIC1204
Price: 29.99 USD
Availability: InStock

SKU: WIC1204 | Manuf. Code: 1204W

~~List Price: $39.99 USD~~

$29.99 USD

Unit price /

Unavailable

Price Match Guarantee

Our Best Price Guarantee

We Price Match against authorized dealers only, based on the total order cost (product + shipping).
No auction sites
No unauthorized sellers
Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

Qty

Questions? Chat with our Tech Team

Backed by MAURIPRO Support.

Simple 30-Day Returns.

Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

0â€“15 days: Free returns or exchanges
16â€“30 days: Returns accepted with a 20% restocking fee
Returns after 30 days are not accepted.
Request a Return Authorization (RA#) prior to shipping.
Return shipping is the customerâ€™s responsibility.

International Shipping — Duties & VAT Not Included

International Shipping — How It Works

Orders ship from our US warehouse worldwide. Prices shown are in USD and do not include import duties, VAT, GST, customs fees, or any taxes charged by your country on arrival.

These charges are set by your local customs authority and are the buyer's responsibility, payable to the carrier (DHL, FedEx, UPS, or your national postal service) at the time of delivery.

Rates vary by country and product category. For an estimate, check your country's customs authority website or contact us before ordering.

Questions? Chat with our Tech Team.

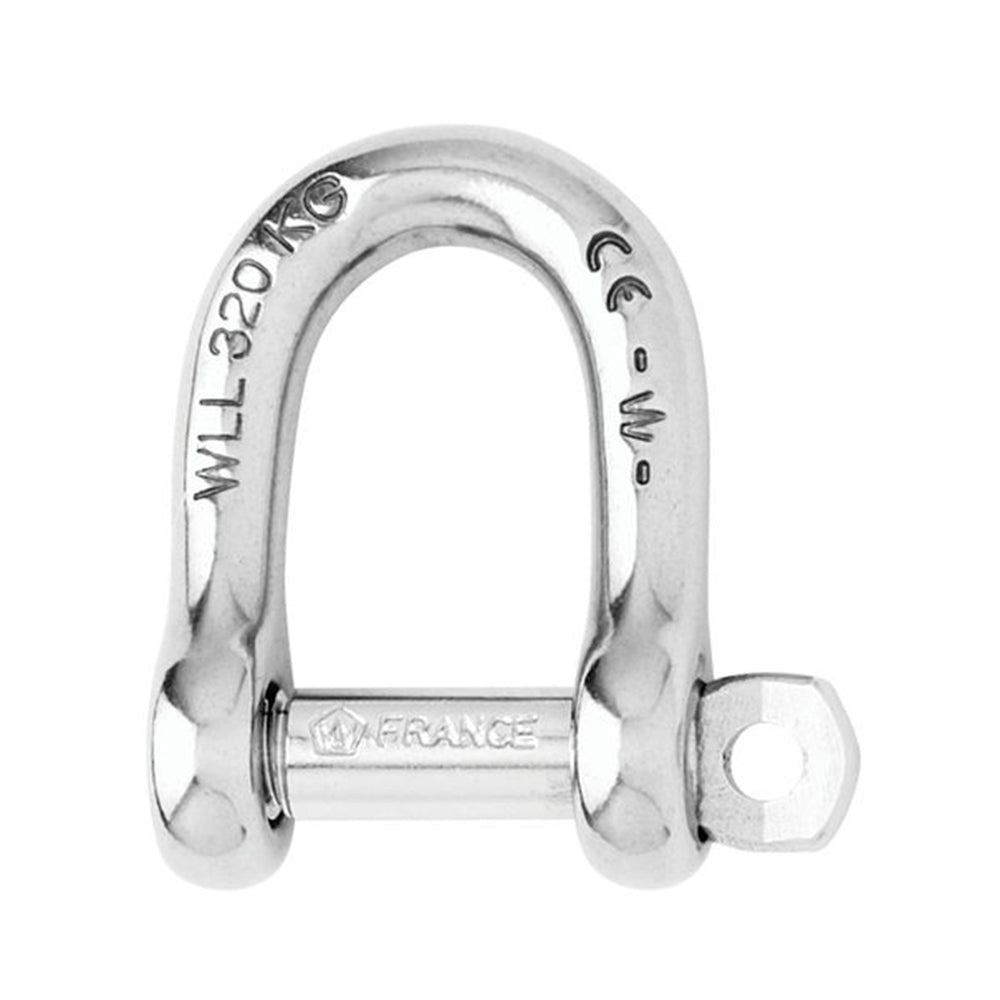

Wichard Self-Locking D Shackle - 5/16 in.

Wichard Self-Locking D Shackle - Pin Dia: 5/16 in (8.0 mm) (1204W)

~~List Price: $39.99 USD~~

$29.99 USD

Unit price /

Unavailable

View details

DESCRIPTION

Self-locking D shackle forged in grade 316L stainless steel. The pin is locked into one of the indentations and no risks of loose due to vibrations. Outstanding working and breaking loads. This product is only for industrial applications. Counts with CE marking.

Our Part # WIC1204 | Wichard Part # 1204

TECHNICAL INFORMATION

Description	Imperial	Metric
Material	316 stainless steel grade	316 stainless steel grade
Working load	2200.00 lb.	1000.00 kg.
WLL	1190.00 lb.	540.00 kg.
Breaking load	5950.00 lb.	2700.00 kg.
Weight	0.12 lb.	55.00 g.
A	1 1/32 in.	26.00 mm.
B	5/8 in.	16.00 mm.
C	5/16 in.	8.00 mm.
D	5/8 in.	16.00 mm.
D diameter	5/16 in.	8.00 mm.
E	9/32 in.	7.00 mm.
F	1 49/64 in.	45.00 mm.
G	1 39/64 in.	41.00 mm.
