Wichard Self-Locking Long D Shackle - Pin Dia: 5/16 in (8.0 mm) (1214W)
SKU:
WIC1214
|
Manuf. Code:
1214W
18% off
Unit price
/
Unavailable
Wichard Self-Locking Long D Shackle - Pin Dia: 5/16 in (8.0 mm) (1214W) is backordered and will ship as soon as it is back in stock.
Knowledgeable STAFF
Wichard Self-Locking Long D Shackle - Pin Dia: 5/16 in (8.0 mm) (12...
Unit price
/
Unavailable
Description
Description
Self-locking D shackle forged in grade 316L stainless steel. The pin is locked into one of the indentations. No risks of loose due to vibrations. Outstanding working and breaking loads. WLL: only for industrial applications. CE marking. Standard applications of shackle requiring more length.
Our Part # WIC1214 | Wichard Part # 1214
Technical Information
Technical Information

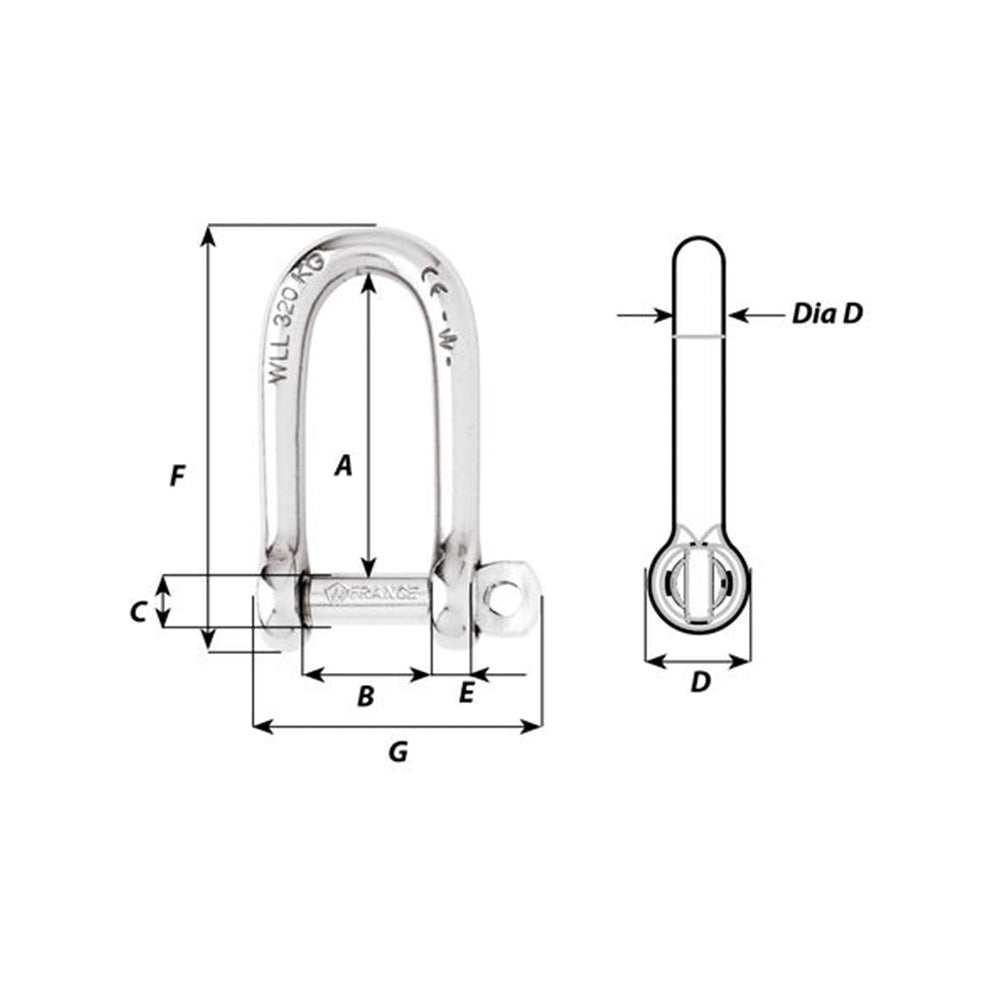

| Description | Imperial | Metric |
|---|---|---|
| Material | 316 stainless steel grade | 316 stainless steel grade |
| Working load | 2204.62 lb. | 1000.00 kg. |
| WLL | 1190.50 lb. | 540.00 kg. |
| Breaking Load | 5952.48 lb. | 2700.00 kg. |
| Weight | 0.15 lb. | 66.00 g. |
| A | 1 3/4 in. | 45.00 mm. |
| B | 5/8 in. | 16.00 mm. |
| C | 5/16 in. | 8.00 mm. |
| D | 5/8 in. | 16.00 mm. |
| D diameter | 5/16 in. | 8.00 mm. |
| E | 1/4 in. | 7.00 mm. |
| F | 2 1/2 in. | 64.00 mm. |
| G | 1 5/8 in. | 41.00 mm. |
