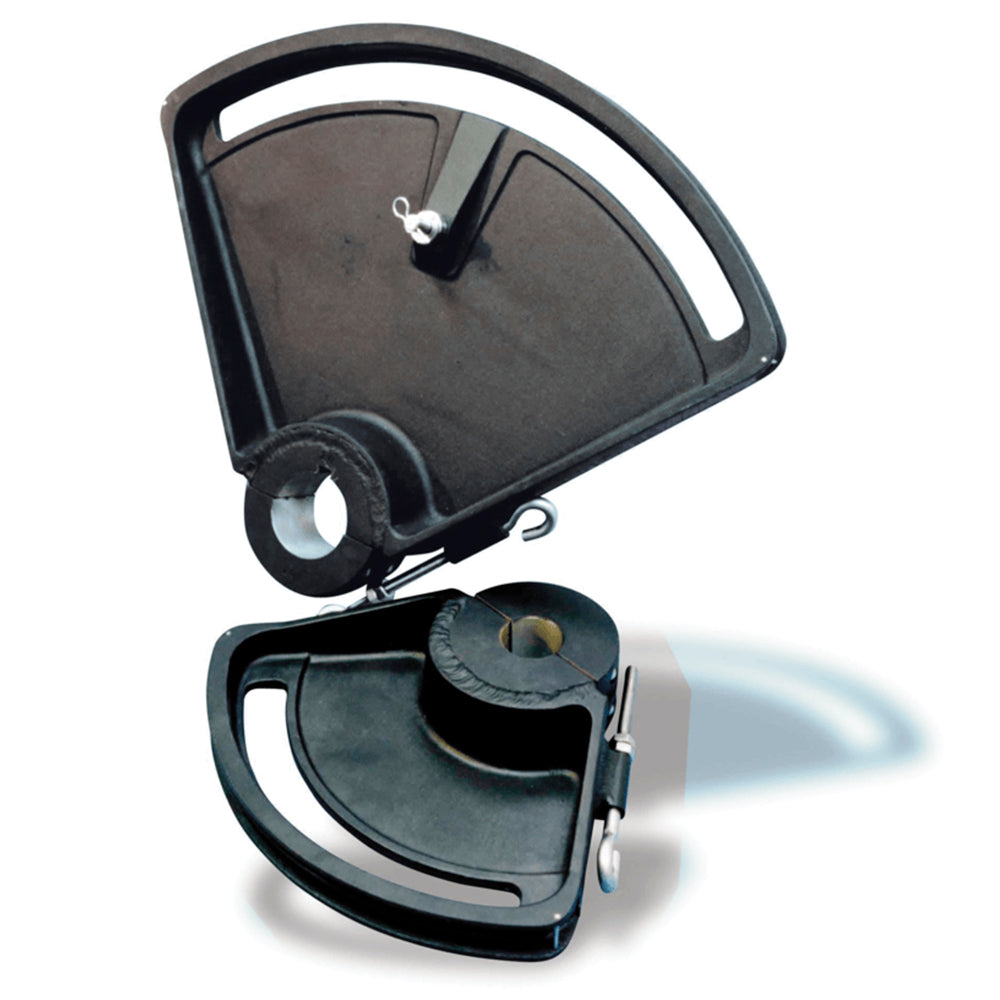

Lewmar Sailboat Quadrant - Constellation 80 degrees - Max. Bore: 3 in (80 mm) & Radius: 7.5 in (190 mm)

SKU: LEW89100058  |  Manuf. Code: 89100058
$440.00 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

Lewmar offers a range of Alloy 80° and 260° quadrants. Fabricated from 6082 aluminium alloy.

Our Part # LEW89100058 | Lewmar Part # 89100058

FEATURES

Features:

  • Strong yet ductile, almost impossible to fracture under impact loading.
  • Compact, where transom space is restricted.
  • Attachment point for linear drives on larger quadrants.
  • Quadrants with integral stopping surfaces for use against the rudder stop.
  • Radial versions supplied pre-drilled for optional bolt on stop block.
  • Generous groove depths and large guide bend radii, longevity of the cable.
  • All rudder stocks diameters and key way sizes are available on request.

TECHNICAL INFORMATION

Operating Radius: 190 mm / 18 in
Max Bore Size: 80 mm / 5 in
Typical Boat Length: 10 m / 55-80 ft

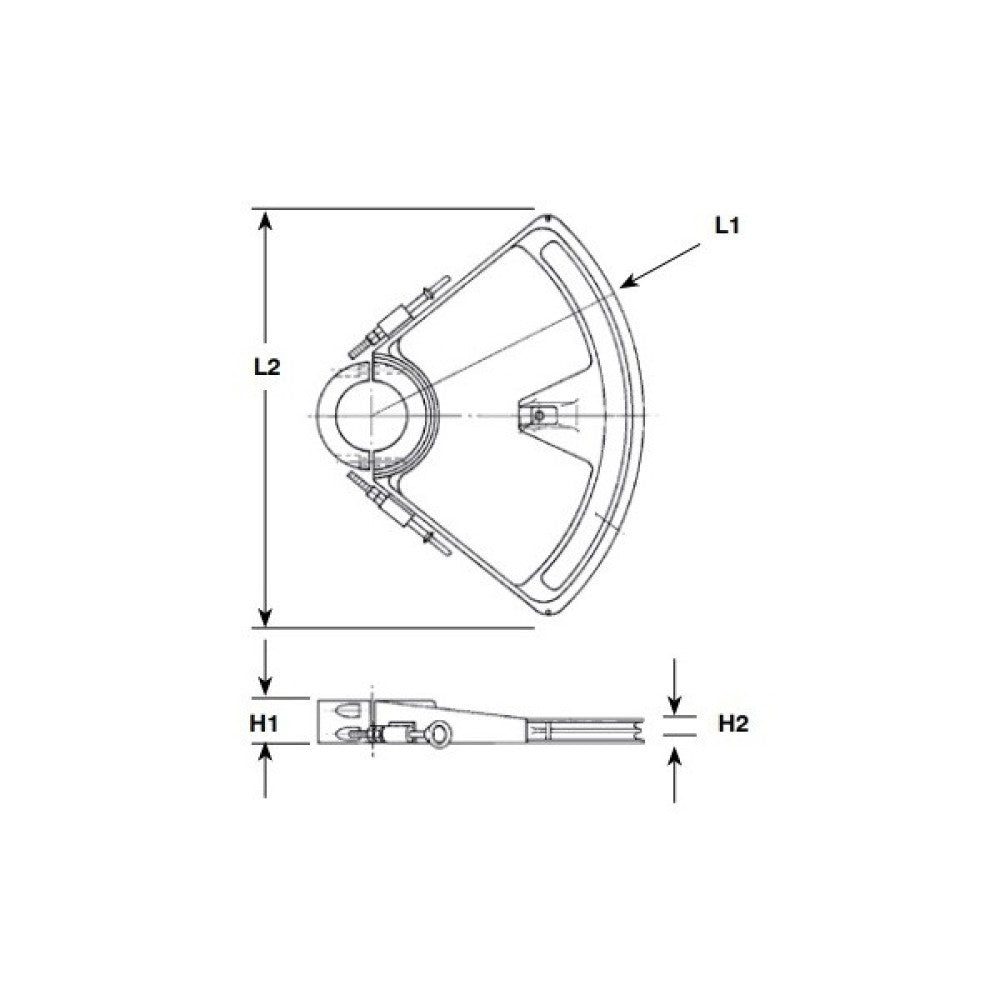

Boss Height H1: 60 mm / 2.4 in
Boss Height H2: 35 mm / 1.3 in
Max Rad Width L1: 195 mm / 7.7 in
Max Rad Width L2: 290 mm / 11 in
