DESCRIPTION

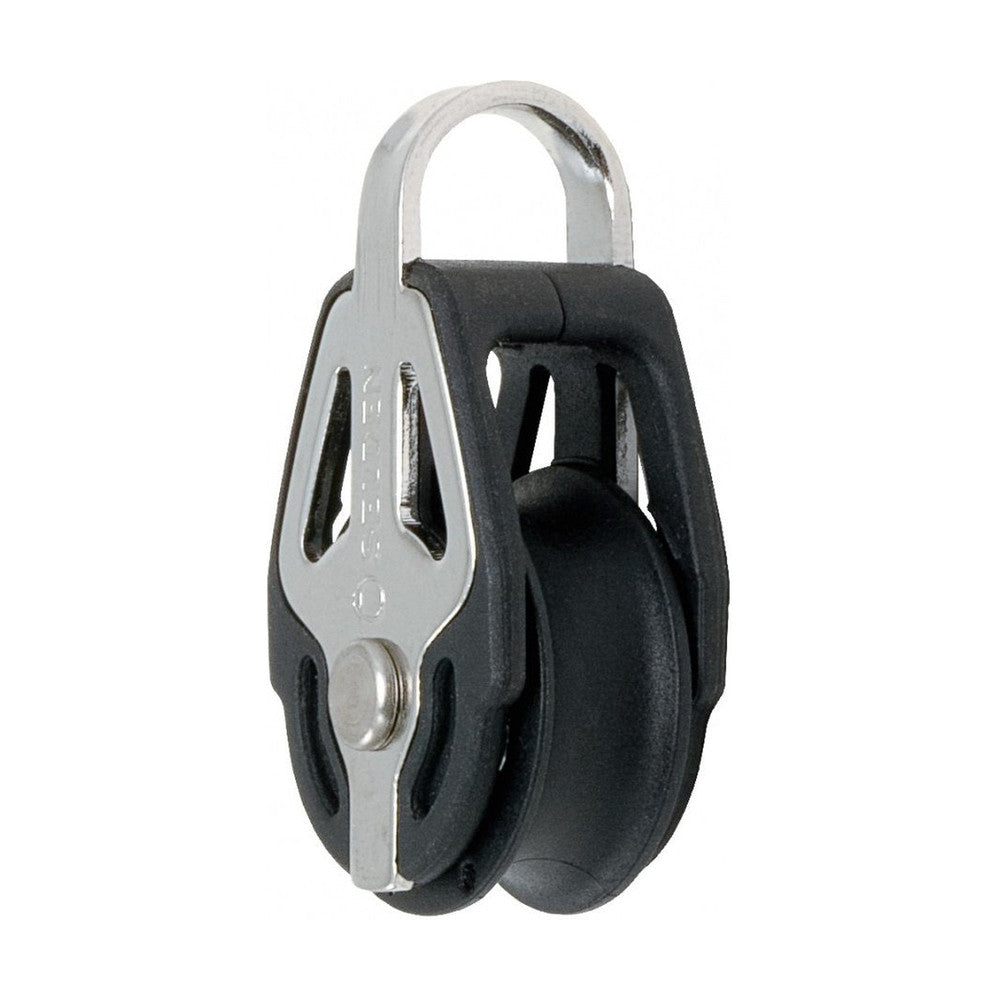

The BBB20 Single Strap Block is a 20mm ball bearing block designed for lower loads. It features stainless steel strap, ball bearings and glass fiber reinforced polyamide for strength and durability. Can be attached with shackle or line. Ideal for control lines on dinghies and keelboats as well as flag line applications on yachts Safe working Load: 150 kg Breaking Load: 300 kg Max line size: 6 mm

FEATURES

  • Safe working Load: 150 kg Breaking Load: 300 kg Max line size: 6 mm.

TECHNICAL INFORMATION


DescriptionImperialMetric
Safe Working Load330.69 lb150 kg
Breaking Load661.39 lb300 kg
Max Line0.24 in6 mm
Weight0.92 oz.26.00 g.
Max Line Size0.24 in.6.00 mm.
