SELECTION GUIDE

Order a Furlex Electric 204E, 304E or 404E (on-deck E or through-deck TDE) or a retro-fit kit for an existing 200S-400S or 204S-404S: art. numbers by forestay size, length and terminal, control packs, dimensions and options, plus the older 400E sheet.

DocumentSelden Furlex Electric Selection Guide

FormatPDF · 8 pages · 1.4 MB

LanguageEnglish

Download PDF ▾

View Collection

The System Upgrade Kits Complete Units Dimensions Options 400E (older)Products

Furlex Electric

Complete kit, or upgrade kit for a third-generation (200S-400S) or fourth-generation (204S-404S) Furlex.
42V electric motor; a PSU (DC/DC converter) turns the boat's 12V or 24V into 42V, allowing thin cables to the motor unit.
Self-locking worm gear rotates the luff extrusion at max torque 60Nm (204E), 90Nm (304E) and 135Nm (404E). Gear ratio 122:1 (emergency furling 40:1).
The motor uses 10-25 amps at normal load; 25-30 seconds to furl a genoa. The worm drive locks a partly reefed genoa mechanically.
Built-in current limiter per model: furling against a loaded sheet is limited to a safe torque and resets a few seconds after the switch is released.
Emergency line-driver included for on-deck and through-deck installations; emergency handle with ½" socket optional.
Two speeds: one button runs the sail in or out at low speed; press the other button at the same time to double the speed.
Through-deck installation gives a longer luff (better performance) and more foredeck space.

Upgrade Your Manual Furlex

For a manual Furlex 200S, 300S or 400S (production year 1997-2015) or a current 204S, 304S or 404S: the furling line, drum and line guard assembly are replaced with a Furlex Electric motor unit. No sail conversion is needed; the luff length is unaffected.

Furlex	Forestay Ø (mm)	Retro-fit kit, S → E (excl. control pack)		Retro-fit kit, TD → TDE		Control pack: genoa / cutter / buttons excluded
200	6	549-601-200	View kit →	549-601-225	View kit →	532-815-60 / -61 / -62
200	7	549-601-205	View kit →	549-601-225	View kit →	532-815-60 / -61 / -62
200	8	549-601-210	View kit →	549-601-225	View kit →	532-815-60 / -61 / -62
204	6	549-601-250	View kit →	549-601-275	Ask us to source it →	532-815-60 / -61 / -62
204	7	549-601-255	View kit →	549-601-275	Ask us to source it →	532-815-60 / -61 / -62
204	8	549-601-260	View kit →	549-601-275	Ask us to source it →	532-815-60 / -61 / -62
300	8	549-601-215	View kit →	549-601-240	View kit →	532-815-63 / -64 / -65
300	10	549-601-220	View kit →	549-601-240	View kit →	532-815-63 / -64 / -65
304	8	549-601-265	View kit →	549-601-290	Ask us to source it →	532-815-63 / -64 / -65
304	10	549-601-270	View kit →	549-601-290	Ask us to source it →	532-815-63 / -64 / -65
400	12	549-632-215	View kit →	549-632-240	View kit →	532-815-66 / -67 / -68
400	14	549-632-220	View kit →	549-632-240	View kit →	532-815-66 / -67 / -68
404	12	549-632-265	View kit →	549-632-290	View kit →	532-815-66 / -67 / -68
404	14	549-632-270	View kit →	549-632-290	View kit →	532-815-66 / -67 / -68

Furlex Electric Assemblies (excl. control pack), 12V/24V

Type	Forestay Ø (mm)	E: max forestay length (mm)	E, standard Sta-lok	E, rigging screw & Sta-lok	E, swaged terminal	TDE: max forestay length (mm)	TDE, Sta-lok	TDE, rigging screw	TDE, swaged terminal
204E	6	10600	035-025-101 View →	035-025-111 View →	035-025-121 Ask us to source it →	10500	035-025-131 Ask us to source it →	035-025-141 View →	035-025-151 Ask us to source it →
204E	6	13000	035-025-102 View →	035-025-112 View →	035-025-122 Ask us to source it →	12900	035-025-132 Ask us to source it →	035-025-142 Ask us to source it →	035-025-152 Ask us to source it →
204E	6	15400	035-025-103 View →	035-025-113 View →	035-025-123 Ask us to source it →	15300	035-025-133 Ask us to source it →	035-025-143 Ask us to source it →	035-025-153 Ask us to source it →
204E	7	13000	035-025-104 View →	035-025-114 View →	035-025-124 Ask us to source it →	12900	035-025-134 Ask us to source it →	035-025-144 Ask us to source it →	035-025-154 Ask us to source it →

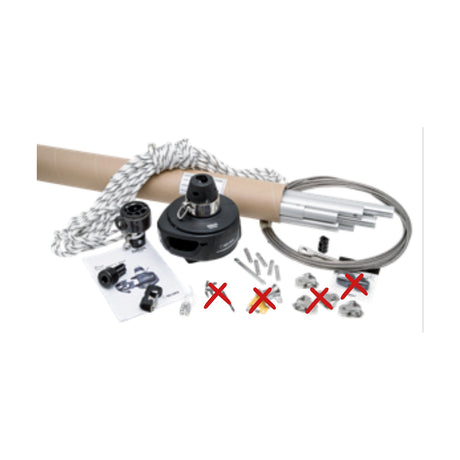

204E	7	15400	035-025-105 View →	035-025-115 View →	035-025-125 Ask us to source it →	15300	035-025-135 Ask us to source it →	035-025-145 View →	035-025-155 Ask us to source it →
204E	7	17800	035-025-106 View →	035-025-116 View →	035-025-126 Ask us to source it →	17700	035-025-136 Ask us to source it →	035-025-146 Ask us to source it →	035-025-156 Ask us to source it →
204E	8	15400	035-025-107 View →	035-025-117 View →	035-025-127 Ask us to source it →	15300	035-025-137 Ask us to source it →	035-025-147 View →	035-025-157 Ask us to source it →
204E	8	17800	035-025-108 View →	035-025-118 View →	035-025-128 Ask us to source it →	17700	035-025-138 Ask us to source it →	035-025-148 Ask us to source it →	035-025-158 Ask us to source it →
304E	8	15500	042-031-101 View →	042-031-111 View →	042-031-121 View →	15260	042-031-131 View →	042-031-141 View →	042-031-151 View →
304E	8	17900	042-031-102 View →	042-031-112 View →	042-031-122 View →	17660	042-031-132 View →	042-031-142 View →	042-031-152 View →
304E	10	15500	042-031-103 View →	042-031-113 View →	042-031-123 View →	15260	042-031-133 View →	042-031-143 View →	042-031-153 View →
304E	10	17900	042-031-104 View →	042-031-114 View →	042-031-124 View →	17660	042-031-134 View →	042-031-144 View →	042-031-154 View →
304E	10	20300	042-031-105 View →	042-031-115 View →	042-031-125 View →	20060	042-031-135 View →	042-031-145 View →	042-031-155 View →
404E	12	17700	052-038-01 Ask us to source it →	052-038-06 View →	052-038-11 Ask us to source it →	17380	052-038-16 Ask us to source it →	052-038-21 View →	052-038-26 Ask us to source it →
404E	12	20100	052-038-02 Ask us to source it →	052-038-07 View →	052-038-12 Ask us to source it →	19780	052-038-17 Ask us to source it →	052-038-22 View →	052-038-27 Ask us to source it →
404E	12	22500	052-038-03 Ask us to source it →	052-038-08 View →	052-038-13 Ask us to source it →	22180	052-038-18 Ask us to source it →	052-038-23 View →	052-038-28 Ask us to source it →
404E	14	20100	052-038-04 Ask us to source it →	052-038-09 View →	052-038-14 Ask us to source it →	19780	052-038-19 Ask us to source it →	052-038-24 View →	052-038-29 Ask us to source it →
404E	14	22500	052-038-05 Ask us to source it →	052-038-10 View →	052-038-15 Ask us to source it →	22180	052-038-20 Ask us to source it →	052-038-25 View →	052-038-30 Ask us to source it →

E versions are above deck; TDE versions are through-deck (max forestay length measured below deck version).

Control pack Art. No.	For
532-815-60	204E, genoa	View pack →
532-815-61	204E, cutter	View pack →
532-815-62	204E, buttons excluded	View pack →
532-815-63	304E, genoa	View pack →
532-815-64	304E, cutter	View pack →
532-815-65	304E, buttons excluded	View pack →
532-815-66	404E, genoa	View pack →
532-815-67	404E, cutter	View pack →
532-815-68	404E, buttons excluded	View pack →

Control pack includes the Motor Control Unit, push buttons, SEL-Bus terminals and cables. The other Power Supply and SEL-Bus parts are listed in order guide 597-283-E.

Furlex Electric Specifications (mm)

Type	Forestay Ø	L	HW	W2	D2	H2
204E	Ø 6	180	175	12	Ø 10	-16
204E	Ø 7	180	175	14	Ø 12	-16
204E	Ø 8	183	175	14	Ø 14	-7
304E	Ø 8	192	175	14	Ø 14	23
304E	Ø 10	191	175	16	Ø 16	21,5
404E	Ø 12	285	220	21	Ø 19	65
404E	Ø 14	290	220	23	Ø 22	85

Optional Items

Art. No.	Item
533-922	Emergency handle (1/2" socket)	Ask us to source it →
517-115-01	Torsional rigid extension link, ø6/7 mm, L=90 mm	View part →
517-116-01	Torsional rigid extension link, ø8/10 mm, L=130 mm	View part →
517-117-01	Torsional rigid extension link, ø12 mm, L=190 mm	View part →
517-118-01	Torsional rigid extension link, ø14 mm, L=190 mm	View part →

System layout: Furlex Electric, deck gland, connecting box, motor control unit, power supply unit, main switch/fuse, battery 12/24V, control buttons, SEL-Bus system.

Furlex Electric 400E (595-315-E)

Earlier 400E for Ø 12 mm and Ø 14 mm forestays; upgrade for a manual Furlex 400S.

Forestay Ø (mm)	Max forestay length (m)	Standard 12V	Standard 24V	Rigging screw 12V	Rigging screw 24V	TD 12V	TD 24V
12	17.7	049-034-11	049-034-16	049-034-21	049-034-26	049-034-31	049-034-36
12	20.1	049-034-12	049-034-17	049-034-22	049-034-27	049-034-32	049-034-37
12	22.5	049-034-13	049-034-18	049-034-23	049-034-28	049-034-33	049-034-38
14	20.1	049-034-14	049-034-19	049-034-24	049-034-29	049-034-34	049-034-39
14	22.5	049-034-15	049-034-20	049-034-25	049-034-30	049-034-35	049-034-40

Part no.	Item
532-468-01	400E control pack, 12V	View part →
532-469-01	400E control pack, 24V	View part →
539-763-11	Retro-fit kit incl. control pack, Ø 12, 12V	Ask us to source it →
539-763-21	Retro-fit kit incl. control pack, Ø 12, 24V	Ask us to source it →
539-763-13	Retro-fit kit incl. control pack, Ø 14, 12V	Ask us to source it →
539-763-23	Retro-fit kit incl. control pack, Ø 14, 24V	Ask us to source it →
517-072-01	Extension link Ø 12 mm eye/fork, L=190 mm	Ask us to source it →
517-073-01	Extension link Ø 14 mm eye/fork, L=190 mm	Ask us to source it →
