Selden OWS Sliders and Batten Receptacles — Selection Guide

OWS Sliders

  • Made as batten sliders and webbing sliders, each in 5 versions: one fits Selden E-sections (1977-2002) and older Selden/Kemp oval sections, the other 4 fit most other mast brands.
  • OWS sliders do not fit the Selden C-section – use MDS sliders there.
  • The batten slider takes the batten compression load in a full-batten main; for optimal function and strength use toggle M10 stud 511-739-01.
  • Attach to the sail with a webbing strap for maximum strength. All webbing sliders also work as headboard and intermediate sliders.

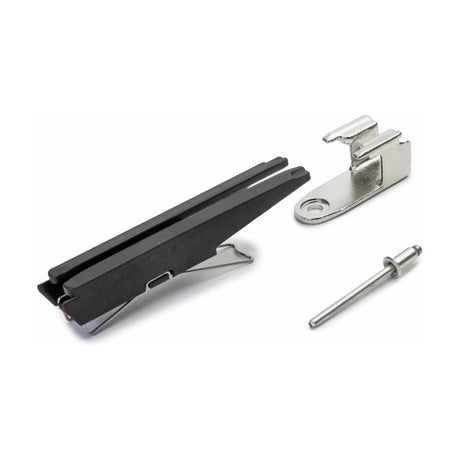

  • Sail feeder gates: 511-740 / 511-750 pass through gate 505-501-01; 511-744 / 511-754 (keelboat sections C106-C139) pass through gate 505-533-02.

Slider by Mast Section (geometric fit only)

Webbing Batten Luff groove mm Holt Allen Bainbridge Fits mast section
511-740 511-750 5.5 All Selden E sections and D section (1971-2002); Sparcraft F135, F195, F305, F385, F460, I620, S622, I830, S830; Z-Spars Z301, Z351, Z380, Z401, Z531, Z601, Z602, Z701, Z702, Z902; Soromap NF200, NF270, NF350, NF430, NF540, NF710, NF1410
511-741 511-751 10 HA 89 A 007
511-742 511-752 10 HA 90 A 008 Briand/Pettersson 180x130 mm MkII (Maxi 95 from hull #250); Briand/Pettersson 125x100 mm (Maxi 77)
511-743 511-753 12 HA 91 A 009 Isomat NG70; Briand/Pettersson 160x120 mm (Maxi 87); Sparcraft NG60, NG70, NG80, NG86, F580, F740, F1060, F1395, S1630, S2100, F2390, F3360, F4600; Z-Spars Z901, Z1001, Z1250, Z1400
511-744 (big wheel) 511-754 (big wheel) 5.5 Selden C106, C116, C126, C139; Sparcraft F35, F50, F67, F78, F101, S137, S180, S260, IMS80, IMS256; Z-Spars Z170, Z190, Z230, Z265, Z501

Breaking load: webbing sliders 5000 N, batten sliders 7000 N.

Assemblies

Assembly Art. No. Type Luff groove mm Breaking load N

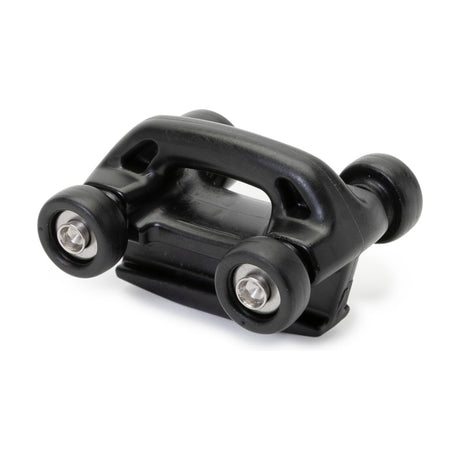

511-740-01 OWS slider webbing 5.5 5000 View slider →

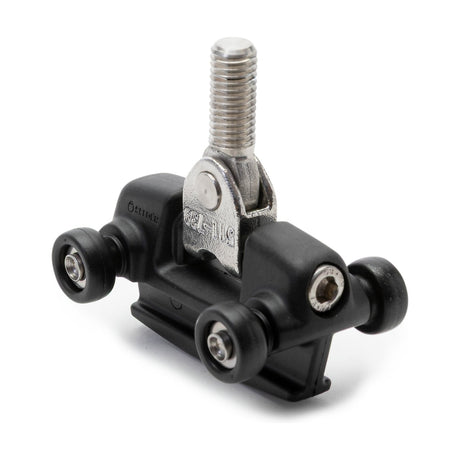

511-750-03 OWS slider batten, with 511-750-01 + 511-739-01 M10 screw + 153-117 5.5 7000 View slider →
511-750-02 OWS slider batten, 511-750-01 + 153-117 5.5 7000 View slider →

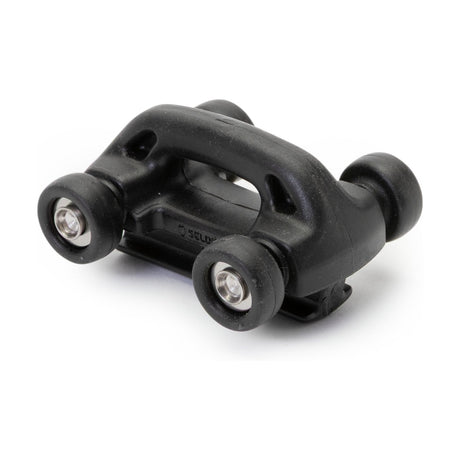

511-741-01 OWS slider webbing 10 5000 View slider →
511-751-03 OWS slider batten with 511-739-01 M10 screw 10 7000 View slider →

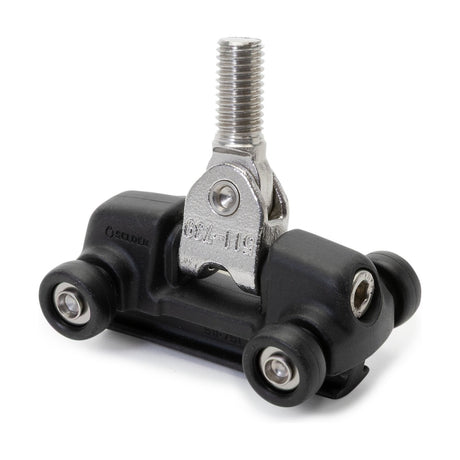

511-751-02 OWS slider batten (screw) 10 7000 View slider →

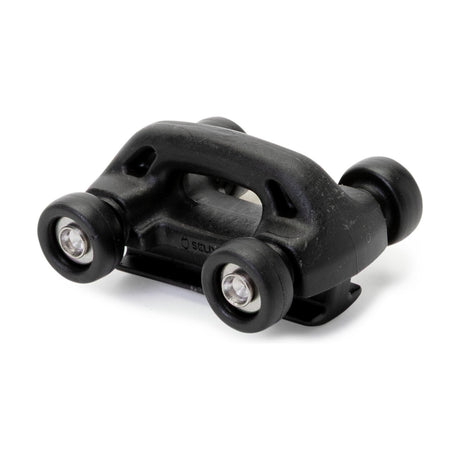

511-742-01 OWS slider webbing 10 5000 View slider →
511-752-03 OWS slider batten with 511-739-01 M10 screw 10 7000 View slider →

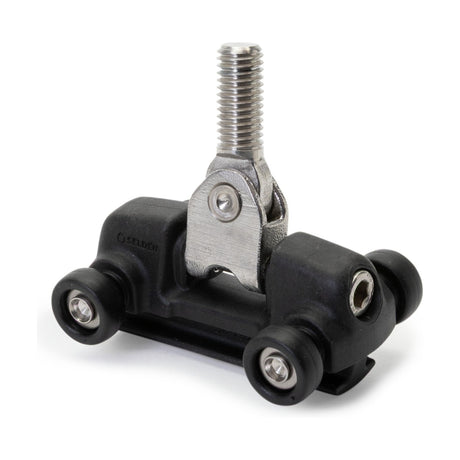

511-752-02 OWS slider batten (screw) 10 7000 View slider →

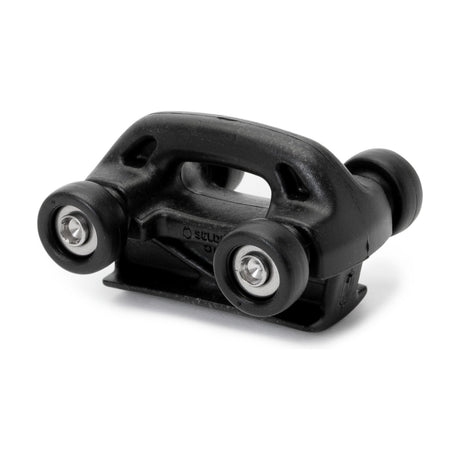

511-743-01 OWS slider webbing 12 5000 View slider →
511-753-03 OWS slider batten with 511-739-01 M10 screw 12 7000 View slider →

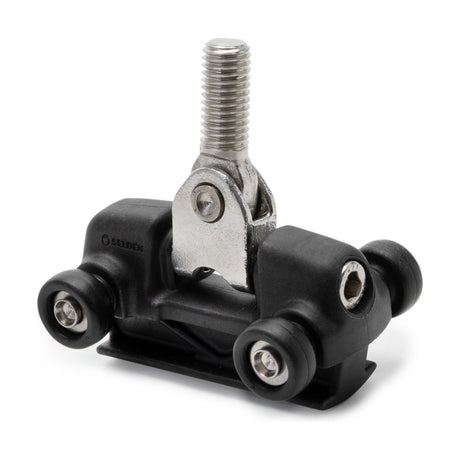

511-753-02 OWS slider batten (screw) 12 7000 View slider →

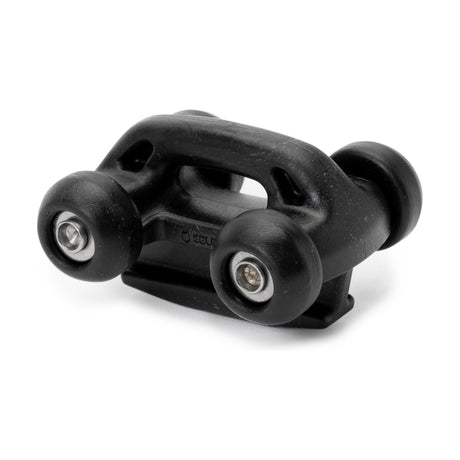

511-744-01 OWS slider webbing, big wheel 5.5 5000 View slider →
511-754-03 OWS slider batten, big wheel, with 511-739-01 M10 screw 5.5 7000 View slider →

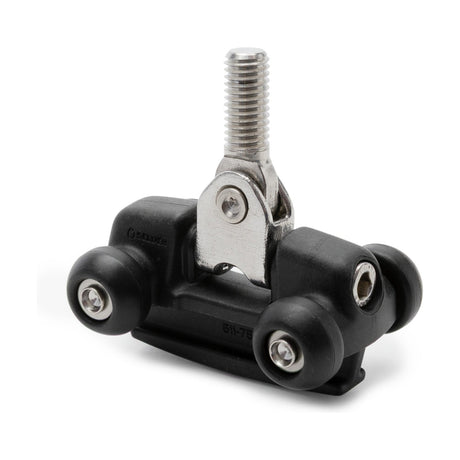

511-754-02 OWS slider batten, big wheel (screw) 5.5 7000 View slider →

Selden OWS slider dimensions for 511-740 to 511-744 and 511-750 to 511-754

Batten Receptacle Range

Art. No. Type L x H x W (mm) Batten round Batten flat Adj. length mm Stud
461-237-01 P-30 85x56x18 Ø10 5.5x31 - M10 View →
461-235-01 P-40 Ø10 5.5x41 - M10 View →
461-210-01 A-17 125x52x28 - 6.5x18 38 M10 View →
461-210-02 A-17 125x52x28 Ø8 - 38 M10 View →
461-220-01 FA-22 134x62x20 - 9.5x23 33 M10 View →
461-220-02 FA-22 134x62x20 Ø10 - 33 M10 View →

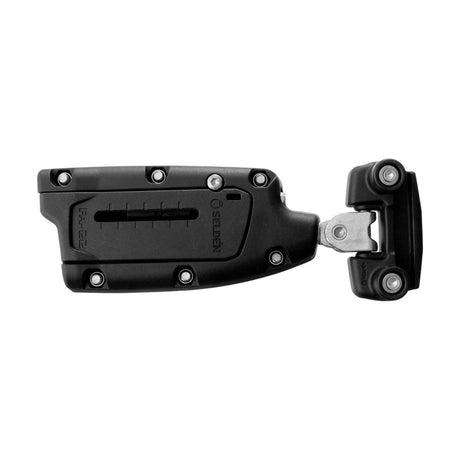

461-230-01 FA-30 134x72x20 - 6.5x31 36 M10 View →
461-230-02 FA-30 134x72x20 Ø12 - 36 M10 View →

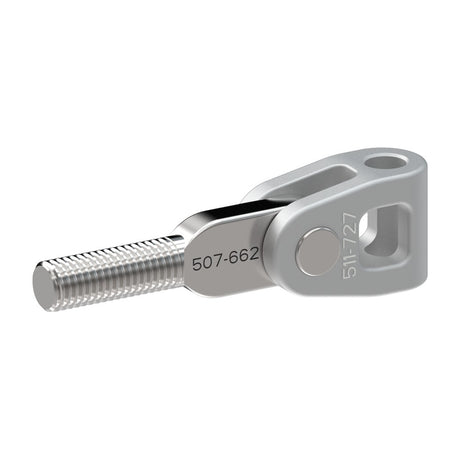

  • For use with toggle M10 stud 511-712-01, 511-727-02 or 511-739-01.
  • FA models: adjustment screw reachable front and rear, so batten tension can be set with the sail flaked on the boom; tension indicators to record the setting.
  • Sliding cover with locking screw and safety cord; protecting collar stops the forward screw heads chafing the mast.

Selden adjustable batten receptacle fitting with L, H and W dimensions

Need a part that isn't listed? Ask us to source it and quote the part number from the PDF.
