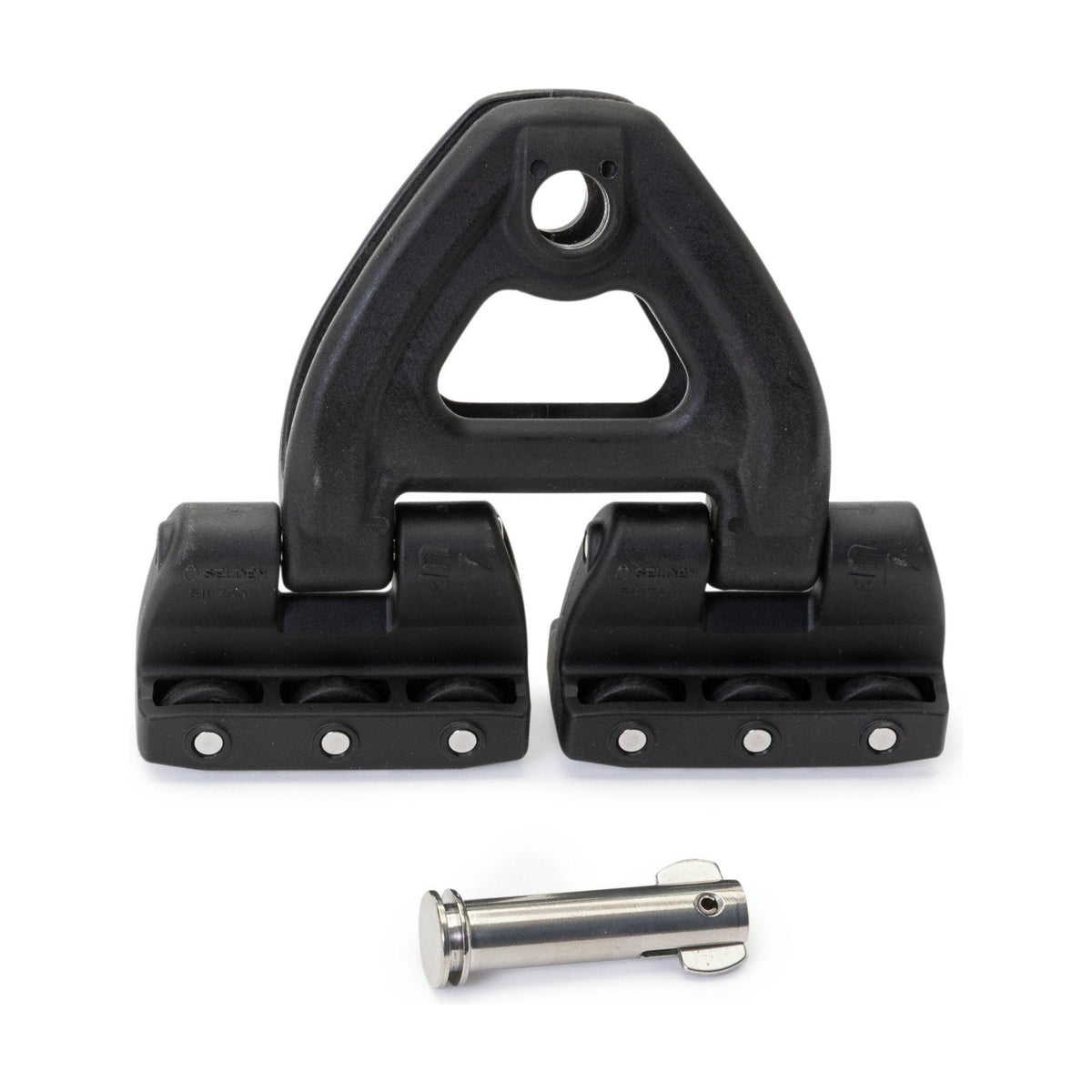

Selden Iws 68 Headboard Car for Seldén Mast Sections C192, C208, C225, C242, C261, C280

SKU: SEL511-760-04  |  Manuf. Code: 511-760-04
$242.00 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

This headboard car assembly consists of two IWS 68 cars and a composite headboard toggle with a Drop-nose pin for easy connection with the headboard of the sail. It is designed for mast sections C192, C208, C225, C242, C261, C280 The IWS car simplifies hoisting, reefing and dousing and is used for Seldén’s newest C-sections. The side load created by the full-batten is taken up by the wheels as the slider tilts to the side and a buffer bearing centers the slider in the groove. The mast groove and the car makes for a perfect match handling loads from all direction without any extra hardware fitted to the mast

FEATURES

  • https://www.seldenmast.com/products/sail-hardware/.
  • Model: IWS 68 H: 142 mm A: 76 mm L: 46 mm øPIN: 12 mm W: 21 mm SWL+Horizontal: 4.80 kN RM: 40.00 kNm Mast: C192,C208,C225,C242,C261,C280.

TECHNICAL INFORMATION

DescriptionImperialMetric
ModelIWS 68IWS 68
H5.59 in142 mm
A2.99 in76 mm
L1.81 in46 mm
ØPIN0.47 in12 mm
W0.83 in21 mm
SWL+Horizontal1,079.08 lbf4.8 kN
RM29,502.48 lbf-ft40 kNm
MastC192C192
Weight8.04 oz.228.00 g.
Safe Working Load1058.22 lb.480.00 kg.
