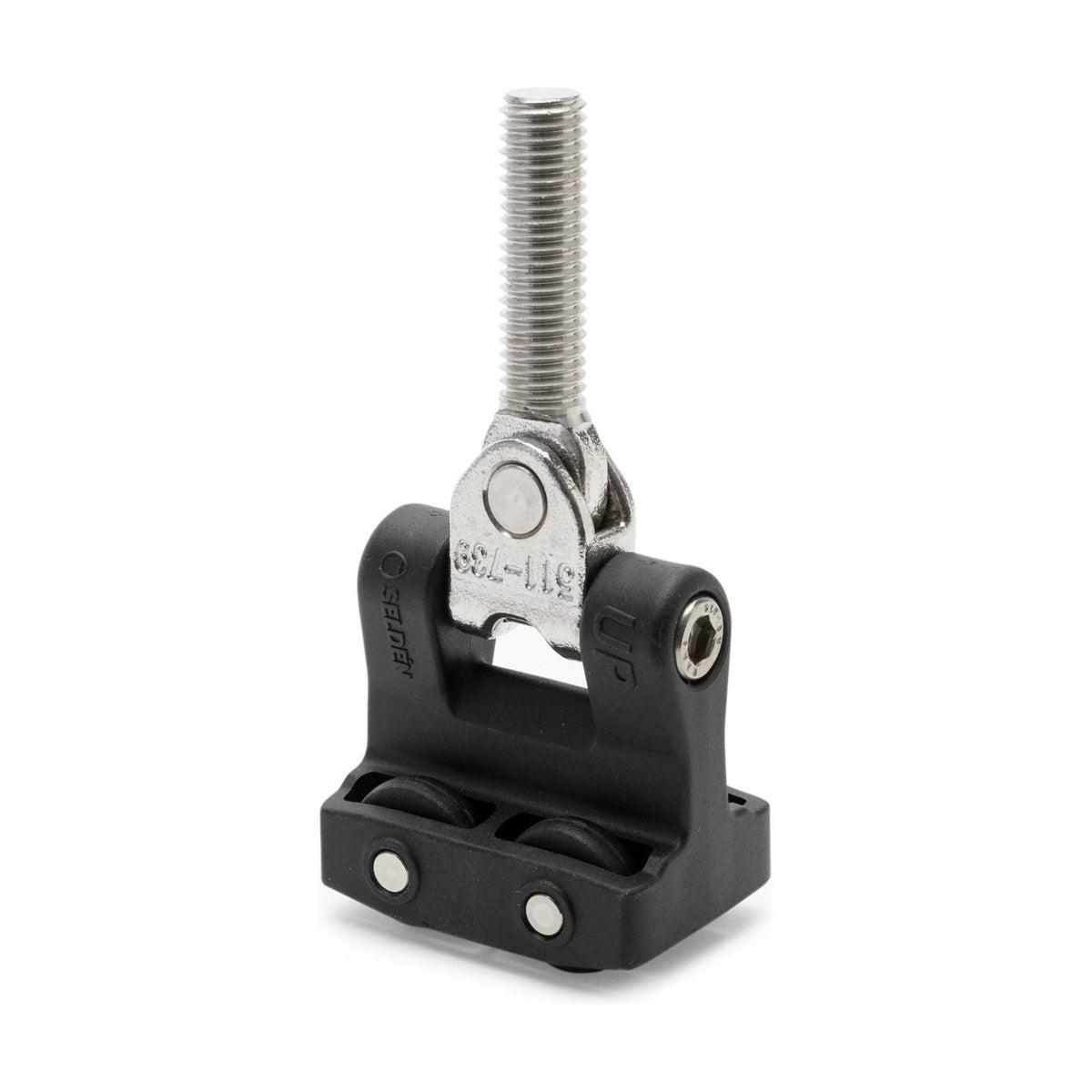

Selden Iws 45HD Fullbatten Car for Seldén Mast Sections C192, C208, C225, C242, C261, C280

SKU: SEL511-773-03  |  Manuf. Code: 511-773-03
$61.95 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

This composite fullbatten car features a M10 threaded stud and can be used with corresponding batten receptacles The IWS car simplifies hoisting, reefing and dousing and is used for Seldén’s newest C-sections. The side load created by the full-batten is taken up by the wheels as the slider tilts to the side and a buffer bearing centers the slider in the groove. The mast groove and the car makes for a perfect match handling loads from all direction without any extra hardware fitted to the mast

FEATURES

  • https://www.seldenmast.com/products/sail-hardware/.
  • Model: IWS 45HD H: 45 mm A: 41 mm L: 33 mm B: 17 mm THREAD: M10 SWL+Horizontal: 3.00 kN RM: 97.00 kNm Mast: C192,C208,C225,C242,C261,C280.

TECHNICAL INFORMATION

DescriptionImperialMetric
ModelIWS 45HDIWS 45HD
H1.77 in45 mm
A1.61 in41 mm
L1.3 in33 mm
B0.67 in17 mm
THREADM10M10
SWL+Horizontal674.43 lbf3 kN
RM71,543.51 lbf-ft97 kNm
MastC192C192
Weight3.35 oz.95.00 g.
Safe Working Load661.39 lb.300.00 kg.
