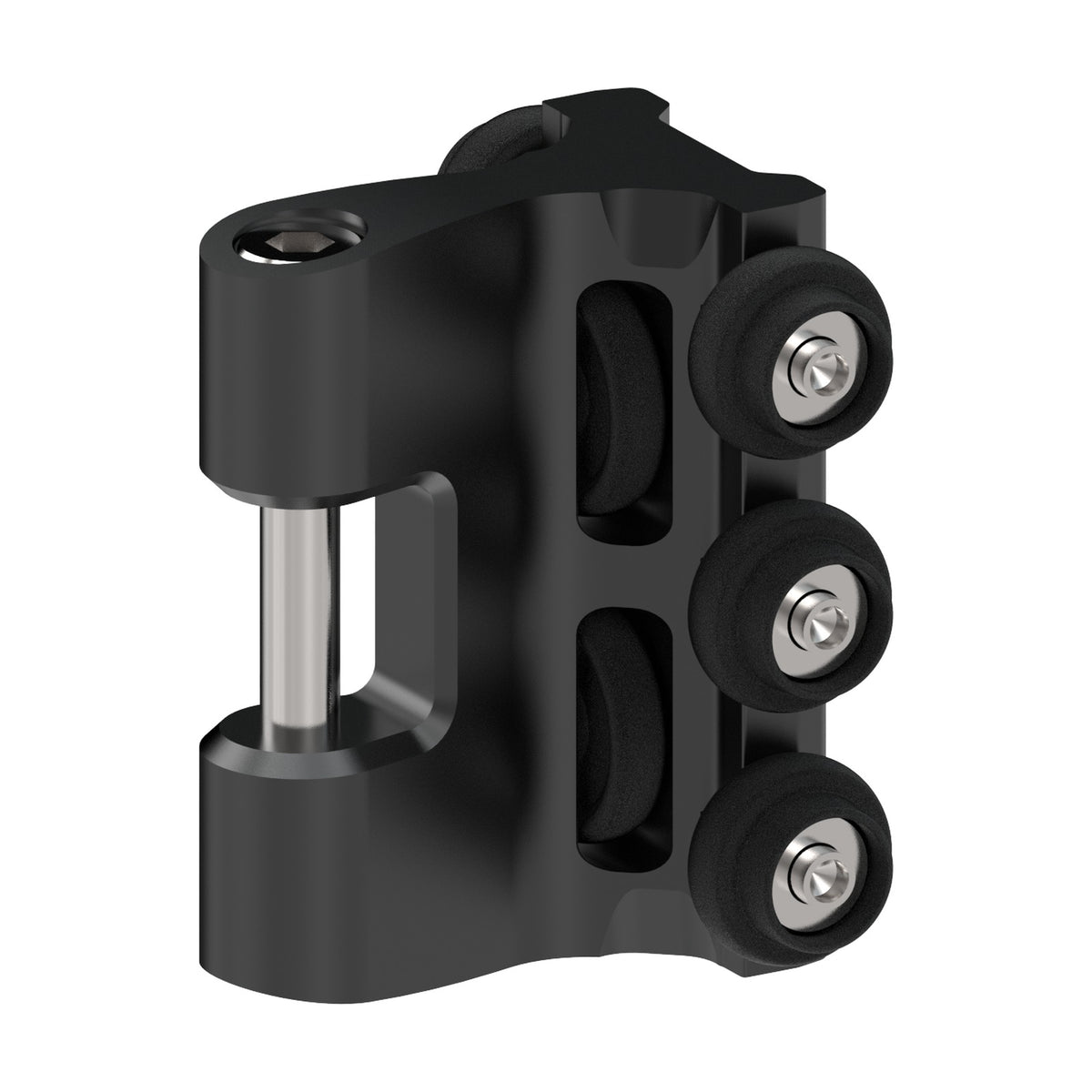

Selden Mds 80 - Heavy Duty Intermediate Car in Aluminium - for Seldén Mast Sections C321 and C365

SKU: SEL511-731-02  |  Manuf. Code: 511-731-02
$260.00 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

A six wheel, 80 mm long intermediate car in aluminium with shaft for webbing applications This is the car used between and below the full-batten cars

FEATURES

  • Dimensioned for a righting moment at 30° heel of maximum 550 kNm on a masthead rigged monohull yacht and 450 kNm on a fractional rig.
  • The MDS full-batten concept - Full support in all directions.
  • As the name implies, Seldén’s MDS (Multi-Directional Support) cars are supported in all directions, making sail handling simpler.
  • A full batten always creates a side load on the cars, particularly when you release the halyard for taking a reef.
  • Each MDS car has side-load absorbing wheels that run against the guiding flanges in the luff groove.
  • The interaction between the mast section and the MDS car deals with longitudinal loads, as well as side loads.

TECHNICAL INFORMATION

DescriptionImperialMetric
ModelMDS 80 ALUMDS 80 ALU
H3.15 in80 mm
ØD0.31 in8 mm
E0.79 in20 mm
B0.91 in23 mm
SWL+Horizontal2,023.28 lbf9 kN
RM345,179.02 lbf-ft468 kNm
MastC321C321
Weight13.65 oz.387.00 g.
Safe Working Load1984.16 lb.900.00 kg.
