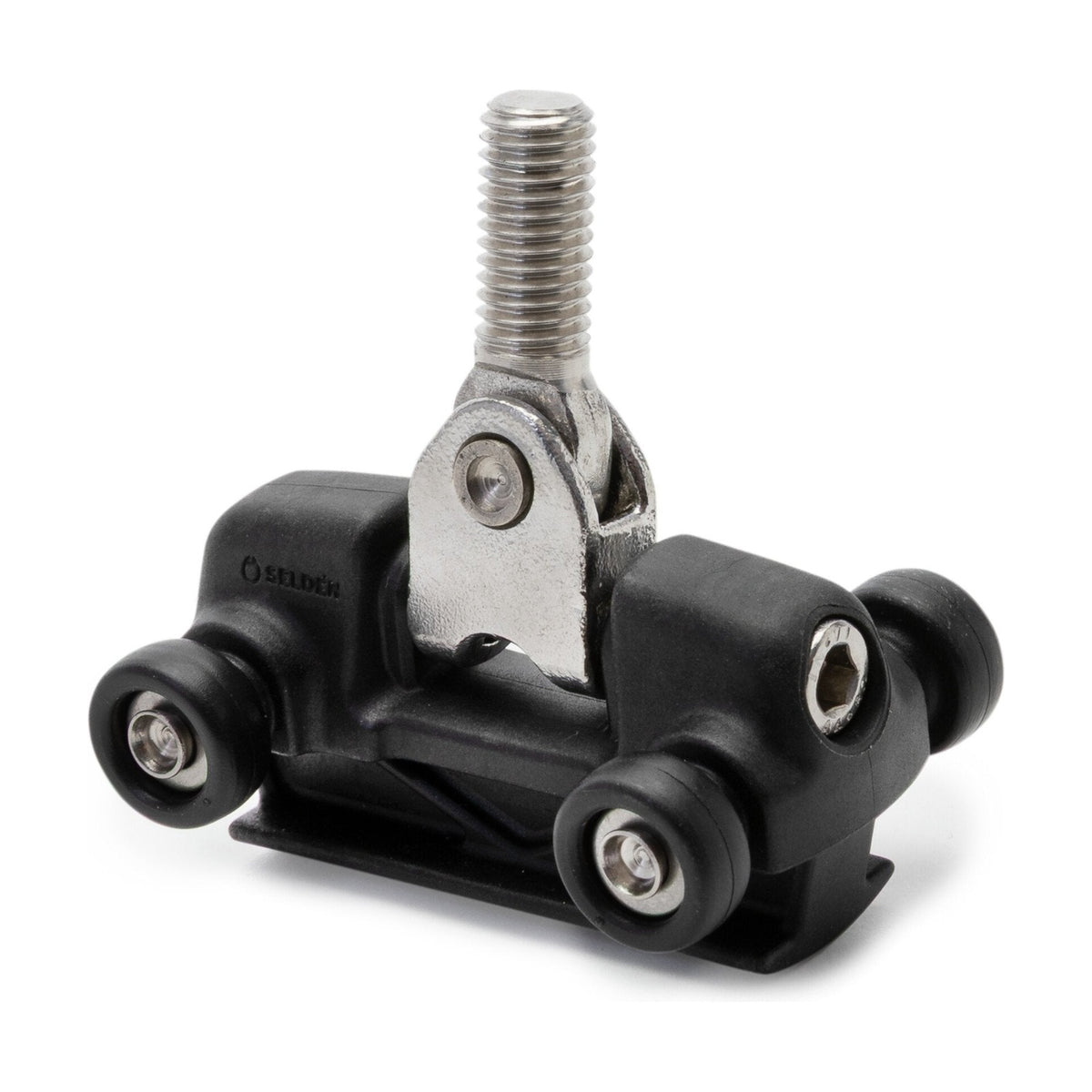

Selden Ows Batten Car with M10 Stud, Ha 91/A 009, Isomat, Briand, Sparcraft, Z-Spar

SKU: SEL511-753-03  |  Manuf. Code: 511-753-03
$57.95 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

OWS (Outer Wheel slider) is an excellent upgrade from traditional sail slides to reduce friction when hoisting and dousing the main sail. The depth and the shape of the slug is designed to correspond to sail slide HA 91 from Holt Allen and A 009 from Bainbridge. The four wheels roll on the aft side of the mast section while the slug slides inside the luff groove 511-753-01 will fit mast sections of the following brands/models

FEATURES

  • Briand/Pettersson 160x120 mm (Maxi 87).
  • Sparcraft: NG60; NG70; NG80; NG86; F580; F740; F1060; F1395; S1630; S2100; F2390; F3360; F4600.
  • Z-Spars: Z902; Z1001; Z1250; Z1400.
  • For all technical information - https://support.seldenmast.com/en/products/sail_hardware/ows_sliders.html.
  • The M10 stud fits any batten receptacle with M10 thread.
  • H: 67 mm A: 40 mm L: 20 mm B: 16 mm SWL+Horizontal: 3.50 kN RM: 121.00 kNm FitsLuffGroove: 12.00 mm Z: 5.40 mm X: 9.80 mm T: 9.80 mm Y: 20.70 mm.

TECHNICAL INFORMATION

DescriptionImperialMetric
H2.64 in67 mm
A1.57 in40 mm
L0.79 in20 mm
B0.63 in16 mm
SWL+Horizontal786.83 lbf3.5 kN
RM89,245 lbf-ft121 kNm
FitsLuffGroove0.47 in12 mm
Z0.21 in5.4 mm
X0.39 in9.8 mm
T0.39 in9.8 mm
Y0.81 in20.7 mm
Weight4.16 oz.118.00 g.
Safe Working Load771.62 lb.350.00 kg.

KNOWLEDGE BASE

Selden OWS Sliders and Batten Receptacles — Selection GuidePick the right Selden OWS (Outer Wheel Support) slider for your mast's luff groove – by Selden section or by.View Selection Guide →
