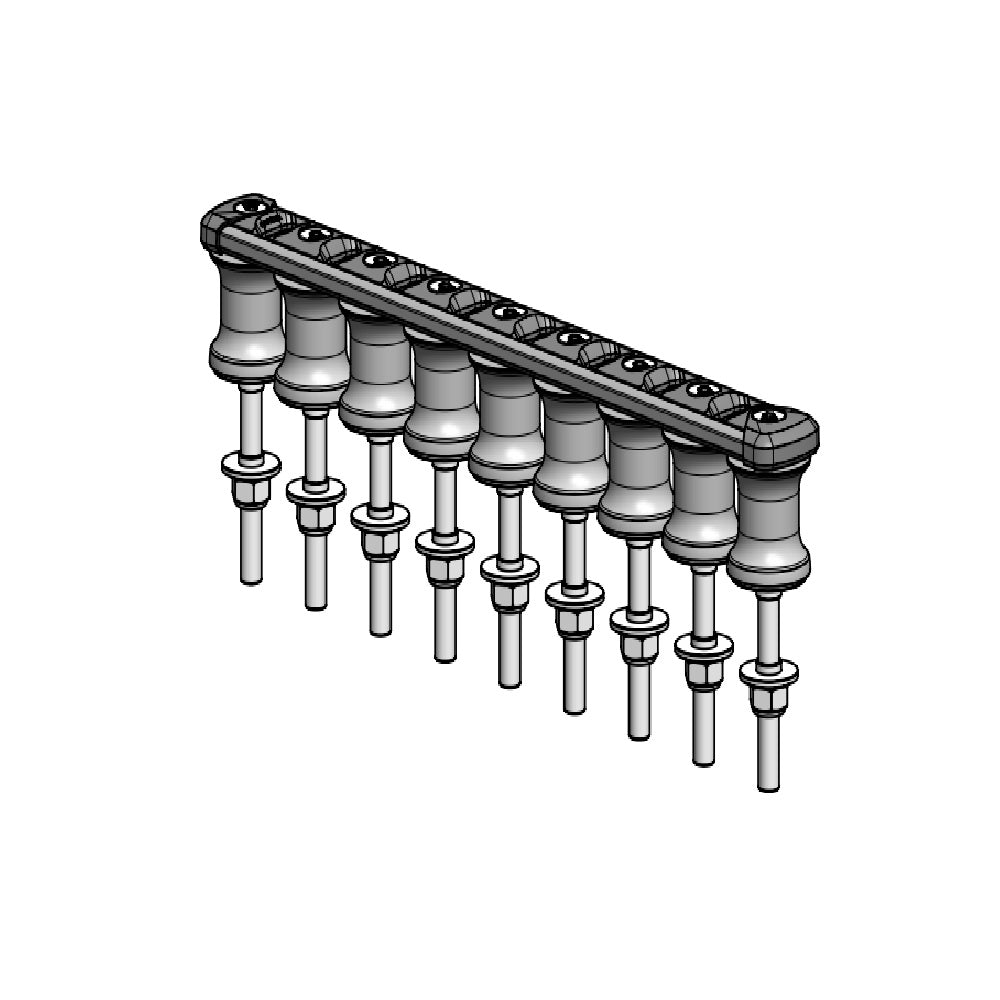

Spinlock Deck Organizer - 9 Sheaves TSR30 Aft (Standard) - Dia: 1 3/16 in (30 mm) (TSR30/9)

SKU: SPI-TSR30-9  |  Manuf. Code: TSR30/9
List Price:  $1,913.25 USD
$1,750.00 USD

You save $163 today!
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  1. We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  2. No auction sites
  3. No unauthorized sellers
  4. Item must be identical, new, and in stock
Found it cheaper? Chat with us to request a Price Match.
Free Shipping for US Continental orders over $99. - View details.
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Found it cheaper? We'll match it.

DESCRIPTION

TSR Organiser : Aft Organiser for diverting lines from clutches and jammers.

  • 30mm sheaves for diverting large deflection angles and large diameter lines
  • All rotating sheaves with plain bearings
  • Fixed Sheaves can be inserted in the organiser to further increase deflection loads
  • Alloy top rails
  • Modular design and assembly - Sheaves can be moved to any spacing
  • Tulip shaped design reduces friction from vertical defection
  • Simple inserting and removal of endless lines

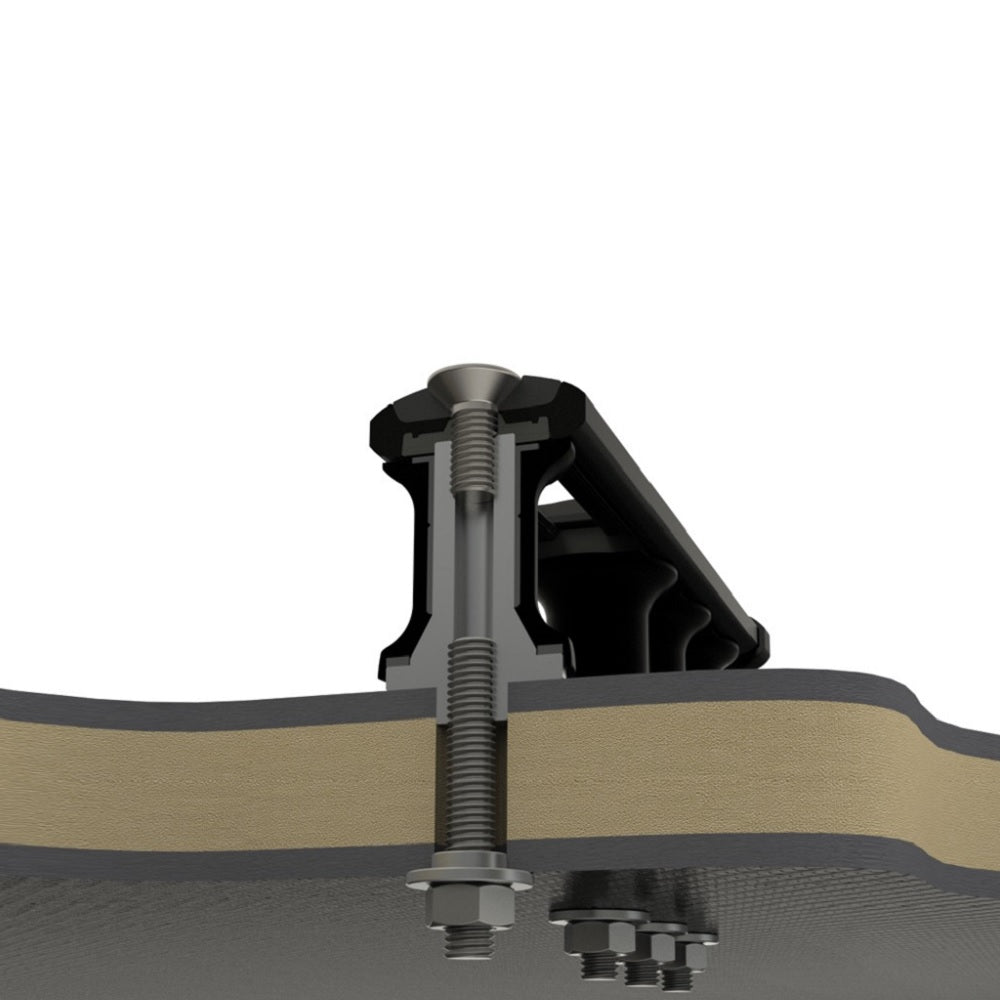

  • Central shaft designed to spread load through laminate
  • Titanium parts available to further reduce weight

Our Part # SPI-TSR30-9 | Mfr. Part # TSR30/9

TECHNICAL INFORMATION

Sheave Diameter: 30mm
Number of Sheaves: 9
Sheave Max Load: 2500kg
Total Combined Max Sheave Load: 11250kg
30° Deflected Rope Load: 5000kg
60° Deflected Rope Load: 2500kg
Weight: 2305g
Line Max Diameter: 15mm
Fasteners: 9 x M10
Overall Length: 392mm
