Sta-Lok Standing Rigging - Swage Shroud Terminal - Wire: 5/16 in (045-08)
SKU:
STA-045-08
|
Manuf. Code:
045-08
18% off
Unit price
/
Unavailable
Sta-Lok Standing Rigging - Swage Shroud Terminal - Wire: 5/16 in (045-08) is backordered and will ship as soon as it is back in stock.
You Save $21 This Week!
Knowledgeable STAFF
Sta-Lok Standing Rigging - Swage Shroud Terminal - Wire: 5/16 in (0...
Unit price
/
Unavailable
Description
Description

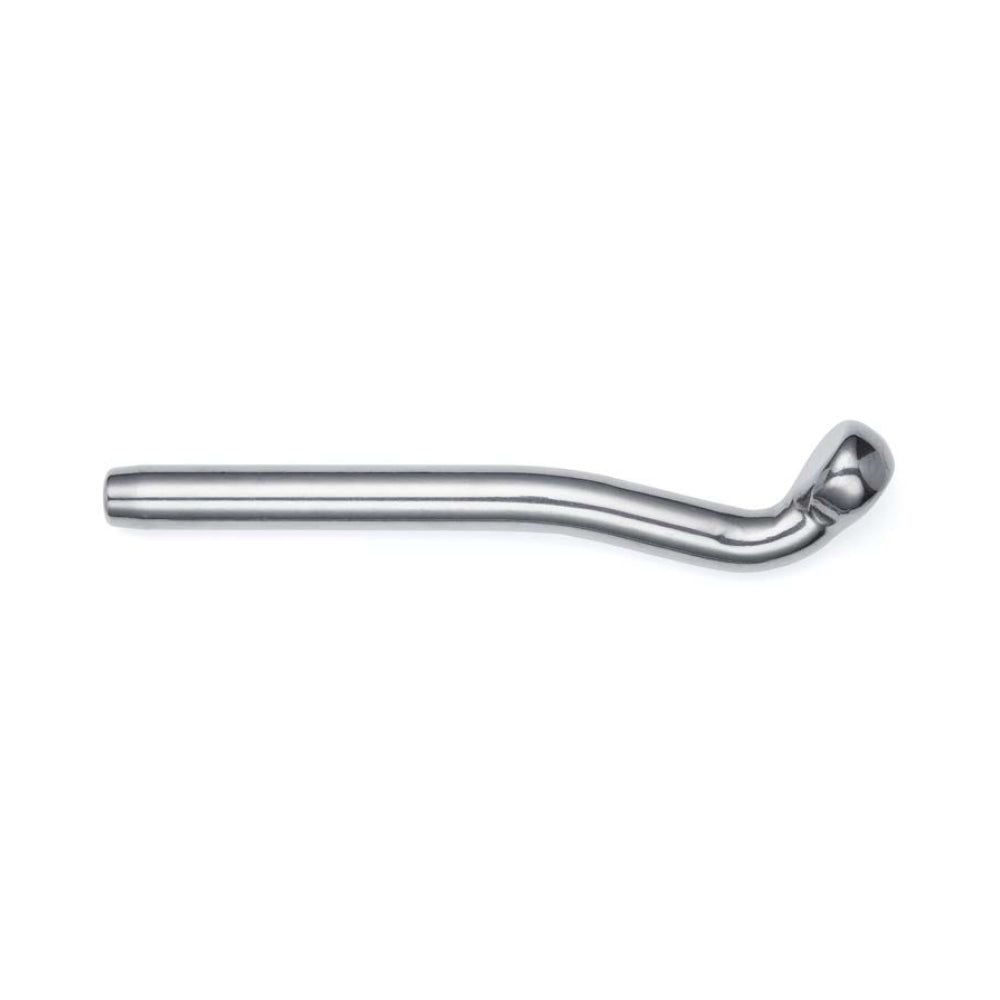

Sta-Lok Swage Stud #045-08 is a precision-machined fitting suitable for rotary and fixed die swaging machines. Made from 316 stainless steel, it’s designed to terminate Ø8 mm wire securely and reliably in high-load sailing applications.
Our Part # STA-045-08| Sta-Lok Part # 045-08
Features
Features
Fetaures:
- Manufactured from high specification 316 stainless steel.
- Use with 1x19, 7 Strand and compacted stand wire rope (IWRC).
- Fits N840 backing plates.
- Metric and Inch wire ropes.
- Minimum hole depth 10x wire diameter.
- Use with open and closed body turnbuckles.

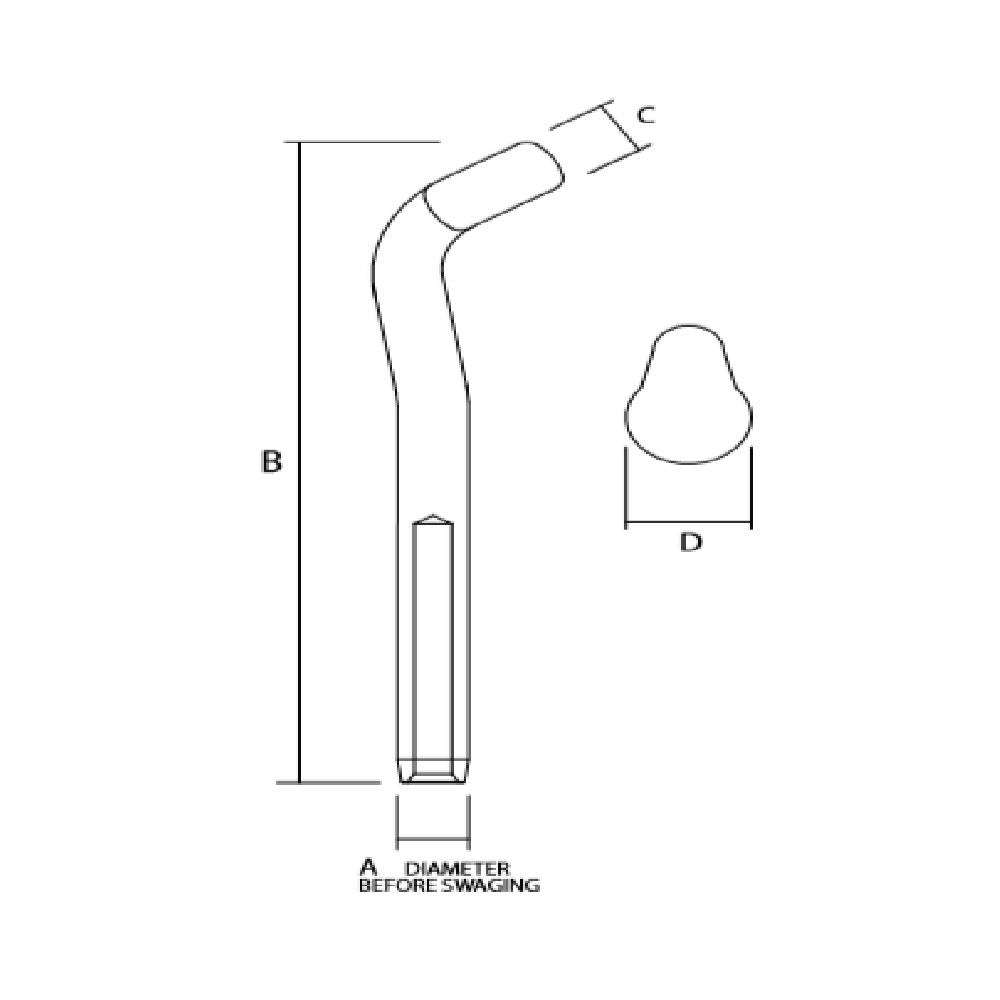

Technical Information
Technical Information
Wire: 8 mm / 5/16 in
A: 16.1 mm / 0.630 in
B: 30 mm / 1.181 in
C: 16 mm / 0.629 in
D: 30 mm / 1.181 in
Weight: 0.28 kg / 0.617 lb
