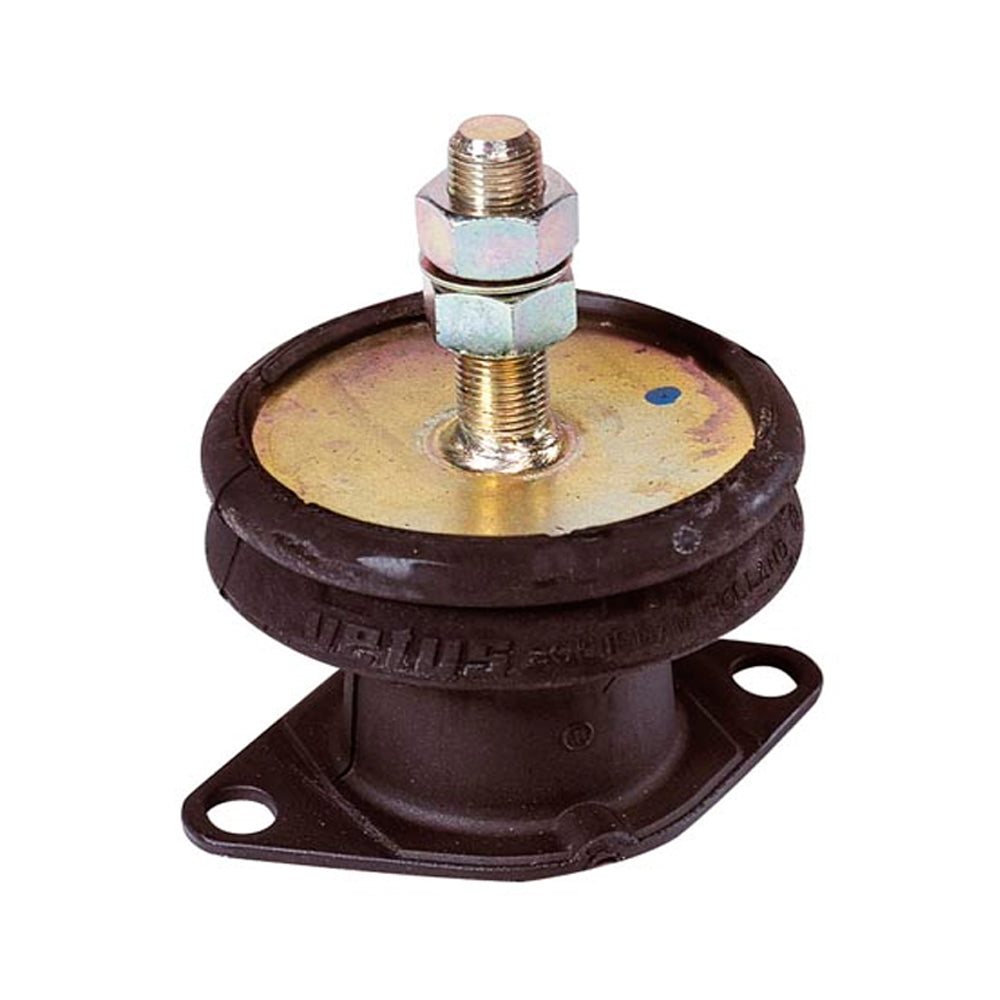

Vetus Hydraulic Engine Mounting
DESCRIPTION
DESCRIPTION
The Vetus Hydraulic Engine Mounting #MITSTEUN is a clever blend of a traditional rubber-metal damper and a hydraulic shock absorber. It's particularly effective for engines with 1 to 3 cylinders, drastically reducing vibration and noise for a smoother experience. If you're looking for reliable hydraulic engine mounts for your marine diesel engine, this option is worth considering.
Benefits
- Combines rubber-metal damping with hydraulic shock absorption
- Ideal for engines with 1, 2, or 3 cylinders
- Reduces vibration and noise significantly
- Maximum static load per support: 60 kg
- Maximum thrust per support: 50 kg
- Suitable for marine diesel engines ranging from 18 KW to 26 KW (25 HP - 35 HP)
This hydraulic engine mounting is designed for marine diesel engines, providing effective noise and vibration reduction. It can handle static loads up to 60 kg per support with a maximum thrust of 50 kg per support. It is ideal for engine power between 18 KW and 26 KW, ensuring flexibility and performance for your sailing needs.
Our Part # VTSMITSTEUN | Mfr. Part # MITSTEUN
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Stiffness ratio (vertical) | 1.00 | 1.00 |
| Stiffness ratio (athwart ships) | 1.00 | 1.00 |
| Stiffness ratio (fore and aft) | 1.00 | 1.00 |
| Min. Load (static) | 55.11 lb. | 25.00 kg. |
| Min. compression (static) | 1/16 in. | 1.30 mm. |
| Max load (static + dynamic) | 147.71 lb. | 67.00 kg. |
| Max. compression (static + dynamic) | 3/16 in. | 4.50 mm. |
| Hardness in shore | 45.00 | 45.00 |
