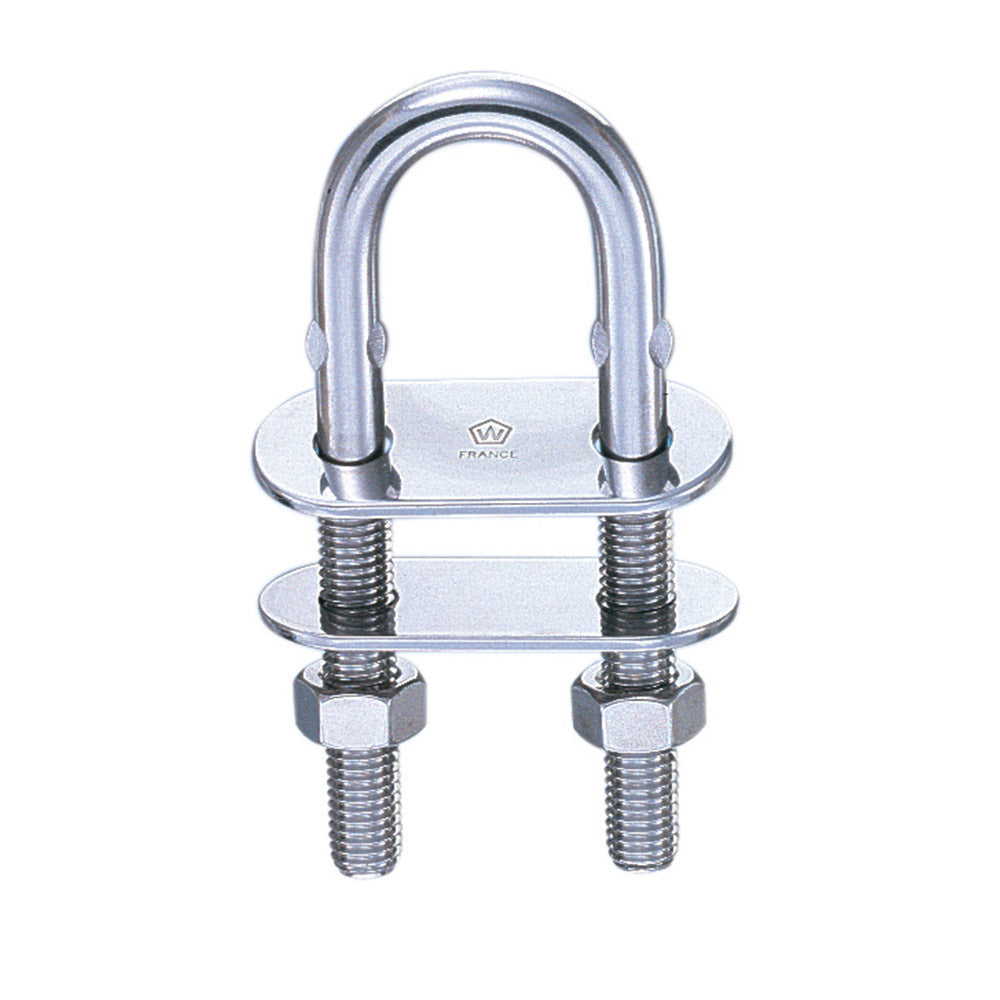

Wichard U-Bolt Standard (Inc. bolts & counterplate) - Length: 1 32/32 in (50 mm) (6511W)
SKU:
WIC6511
|
Manuf. Code:
6511W
18% off
Unit price
/
Unavailable
Wichard U-Bolt Standard (Inc. bolts & counterplate) - Length: 1 32/32 in (50 mm) (6511W) is backordered and will ship as soon as it is back in stock.
You Save $6 This Week!
Knowledgeable STAFF
Wichard U-Bolt Standard (Inc. bolts & counterplate) - Length: 1...
Unit price
/
Unavailable
Description
Description
Fully drop-forged product with high-quality stainless steel. Outstanding working and breaking loads. For any kind of fastening applications (shrouds, lifelines, blocks...). Delivered with bolts and counter plate. Max tightening torque: 2.3 Nm.
Our Part # WIC6511 | Wichard Part # 6511
Technical Information
Technical Information

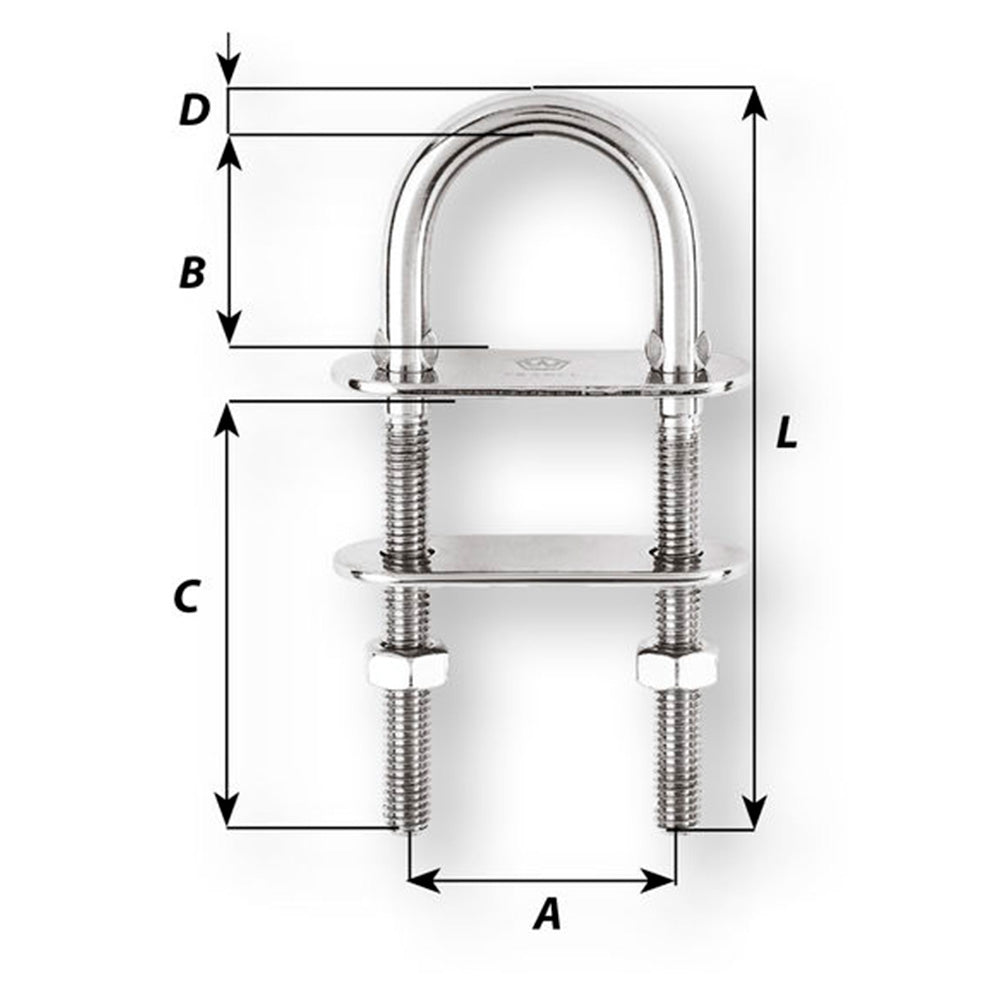

| Description | Imperial | Metric |
|---|---|---|
| Materials | 316L stainless steel grade | |
| Breaking load | 9920.00 lb. | 4500.00 kg. |
| Weight | 0.05 lb. | 22.00 g. |
| A | M10 x150 | M10 x150 |
| B | 0.67 in. | 17.00 mm. |
| C | 1.42 in. | 36.00 mm. |
| D | 0.31 in. | 8.00 mm. |
| L | 1.97 in. | 50.00 mm. |
