DESCRIPTION

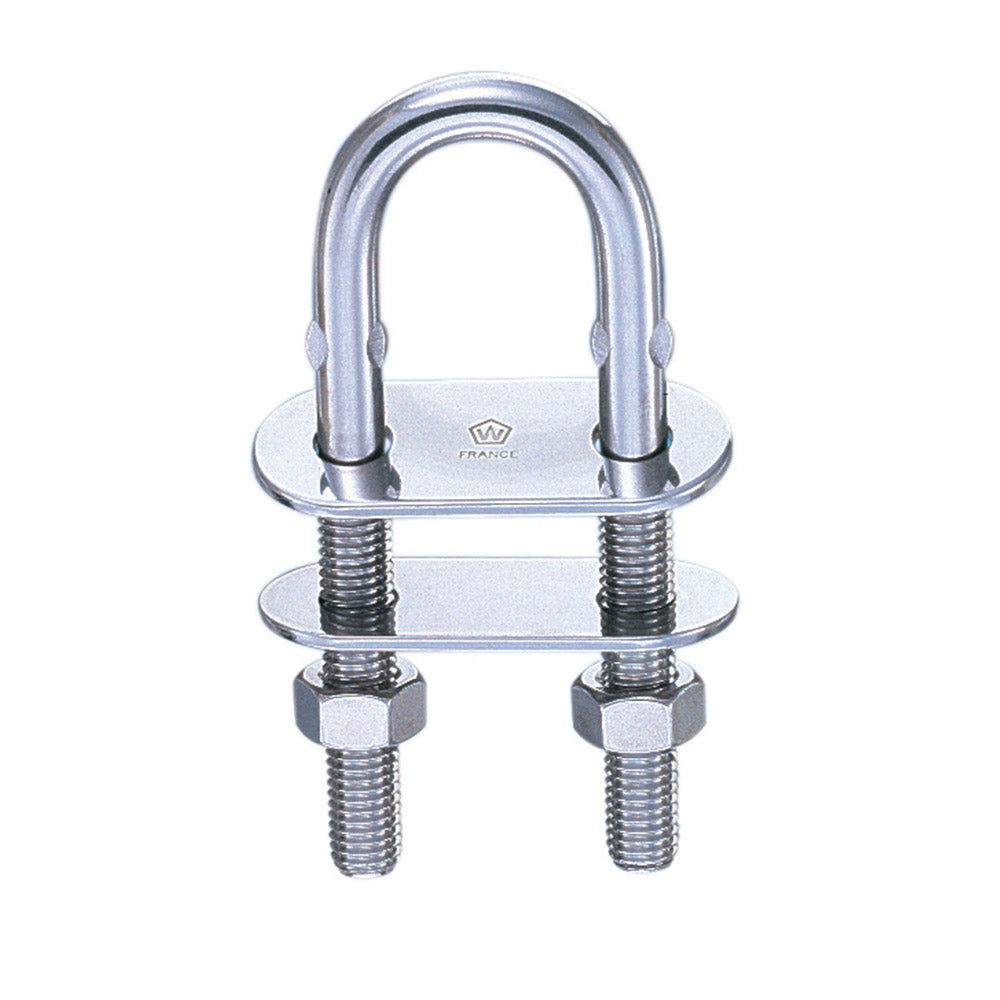

Fully drop-forged product with high-quality stainless steel. Outstanding working and breaking loads. For any kind of fastening applications (shrouds, lifelines, blocks...). Delivered with bolts and counter plate. Max tightening torque: 4.5 Nm.

Our Part # WIC6512 | Wichard Part # 6512

TECHNICAL INFORMATION


DescriptionImperialMetric
Length2.36 in.60.00 mm.
Weigth0.08 lb.35.00 g.
Breaking Load4400.00 lb.2000.00 Kg.
Working Load1410.00 lb.640.00 Kg.

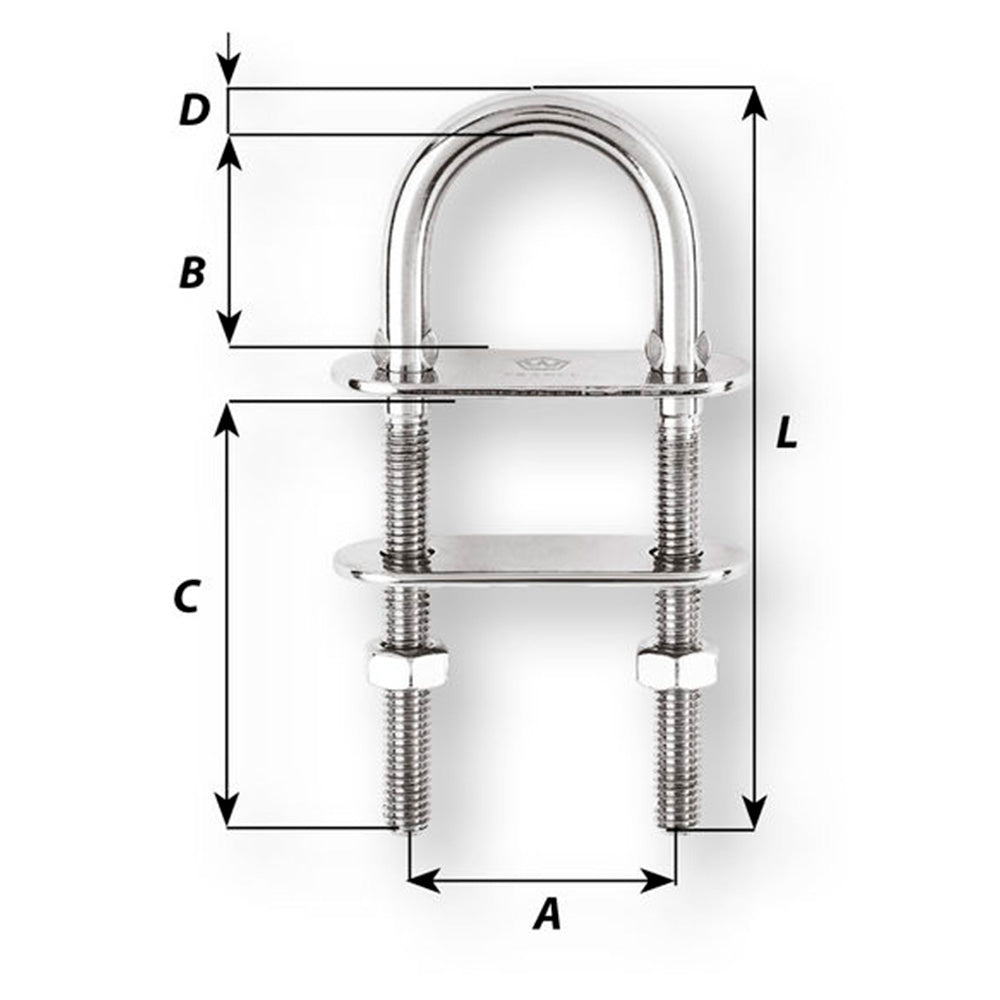

A1.10 in.28.00 mm.
B0.94 in.24.00 mm.
C1.18 in.30.00 mm.
D diameter0.20 in.5.00 mm.
L2.36 in.60.00 mm.
