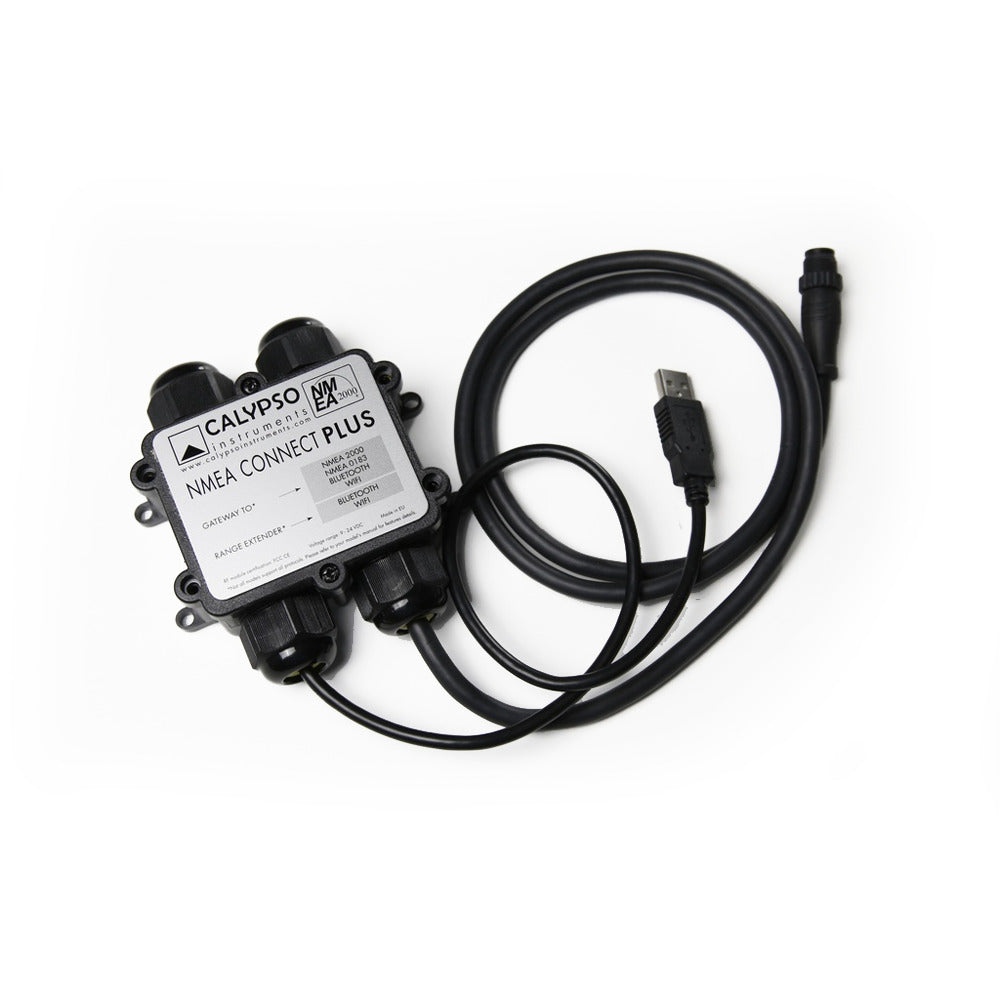

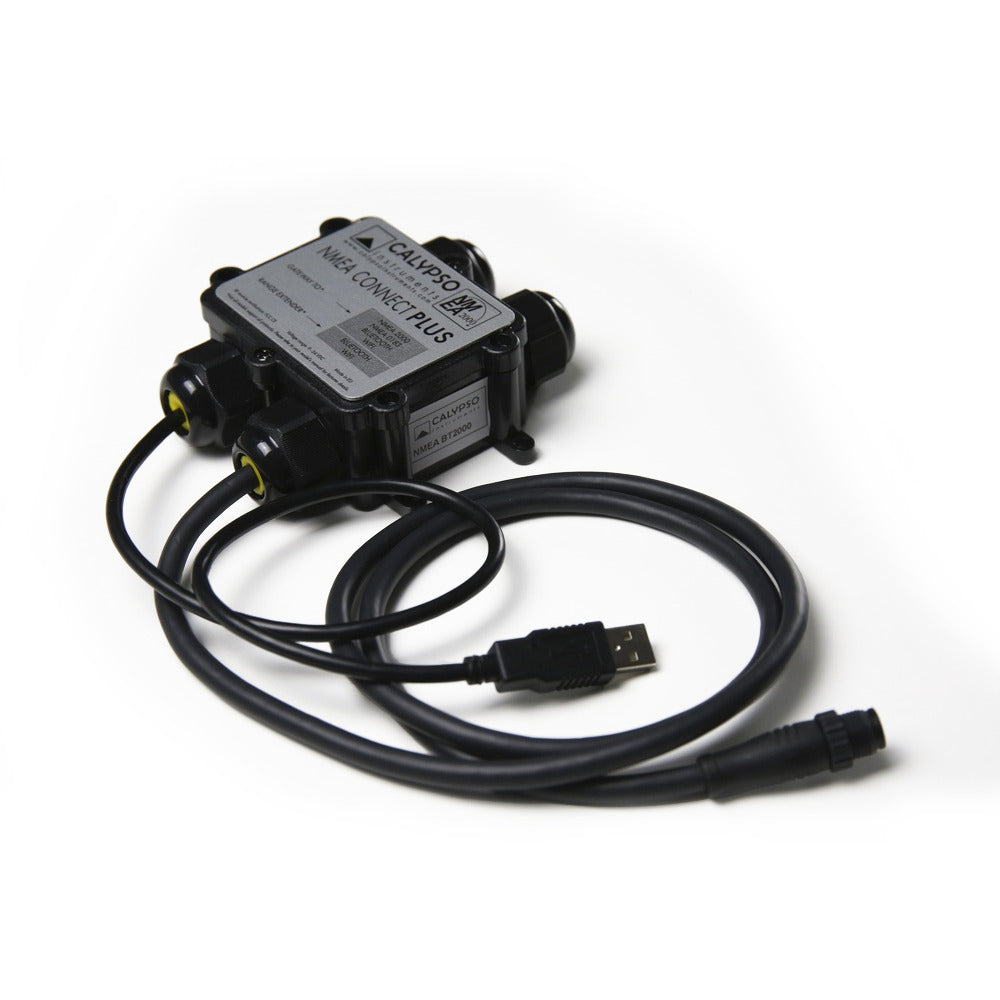

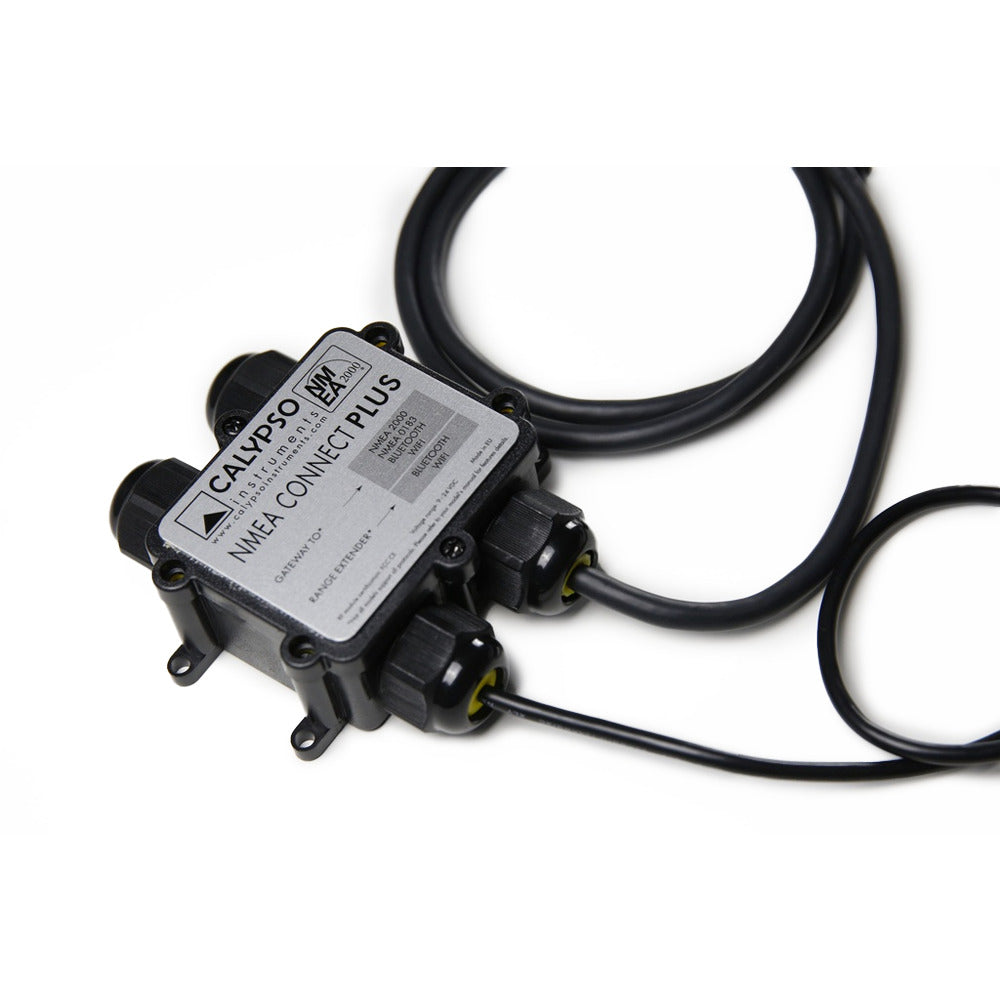

Calypso Instruments NMEA Gateway - NMEA Connect Plus (Highend)
Calypso Instruments NMEA Gateway - NMEA Connect Plus (Highend) is backordered and will ship as soon as it is back in stock.
Description
Description
The NMEA Connect Plus #CMI1016d is your versatile companion for connecting wind data to NMEA networks and beyond. It effortlessly bridges Bluetooth and wifi connections, making it easy to integrate with various devices and applications. Designed for those who seek seamless connectivity, this device makes managing sailing data straightforward and efficient.
Features & Benefits
- Compatible with NMEA 2000 and NMEA 0183 networks.
- Enables Bluetooth and wifi connectivity for multiple apps and devices.
- Supports multiple users sharing wind data simultaneously via Bluetooth.
- Functions as a Bluetooth repeater to extend range.
Crafted for sailing enthusiasts, it integrates smoothly with Calypso's range of ULTRASONIC wind meters. This high-end model converts NMEA 0183 wind sentences and Bluetooth signals, ensuring your sailing data is accessible and reliable. Its ultra-low power consumption ensures efficient performance without compromising on connectivity. Suitable for both competitive sailors and casual cruisers, this gateway enhances your maritime adventures.
Usage
Ideal for use in scenarios where multiple devices need to access wind data, or when extending the range of your Bluetooth signal on board. Perfect for sailors looking to upgrade their existing network with modern connectivity solutions.
Knowledge Base
Knowledge Base
Click on the following technical articles to find relevant information about Calypso Sailing Instruments below:
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Material | Policarbonate 94V-2 | Policarbonate 94V-2 |
Width | 4 3/16 in. | 107.00 mm. |
Lenght | 4 1/2 in. | 115.00 mm. |
Height | 1 3/8 in. | 35.00 mm. |
Weight | 3.53 oz. | 100.00 g. |
Supply Voltage | 9.00 V-24.00 V | 9.00 V-24.00 V |
Firmware | Upgradable via USB | Upgradable via USB |
Connections | CAN-BUS port (NMEA 2000), 2xRS-485 port (NMEA 0183), USB port ( for power and firmware upgrade), Wifi | CAN-BUS port (NMEA 2000), 2xRS-485 port (NMEA 0183), USB port ( for power and firmware upgrade), Wifi |
Protocols | NMEA0183 (RS485), NMEA2000 (CANBUS) | NMEA0183 (RS485), NMEA2000 (CANBUS) |
