How to Choose a Bow Thruster: Sizing, Tunnel, and Power for 30-45 ft Cruisers

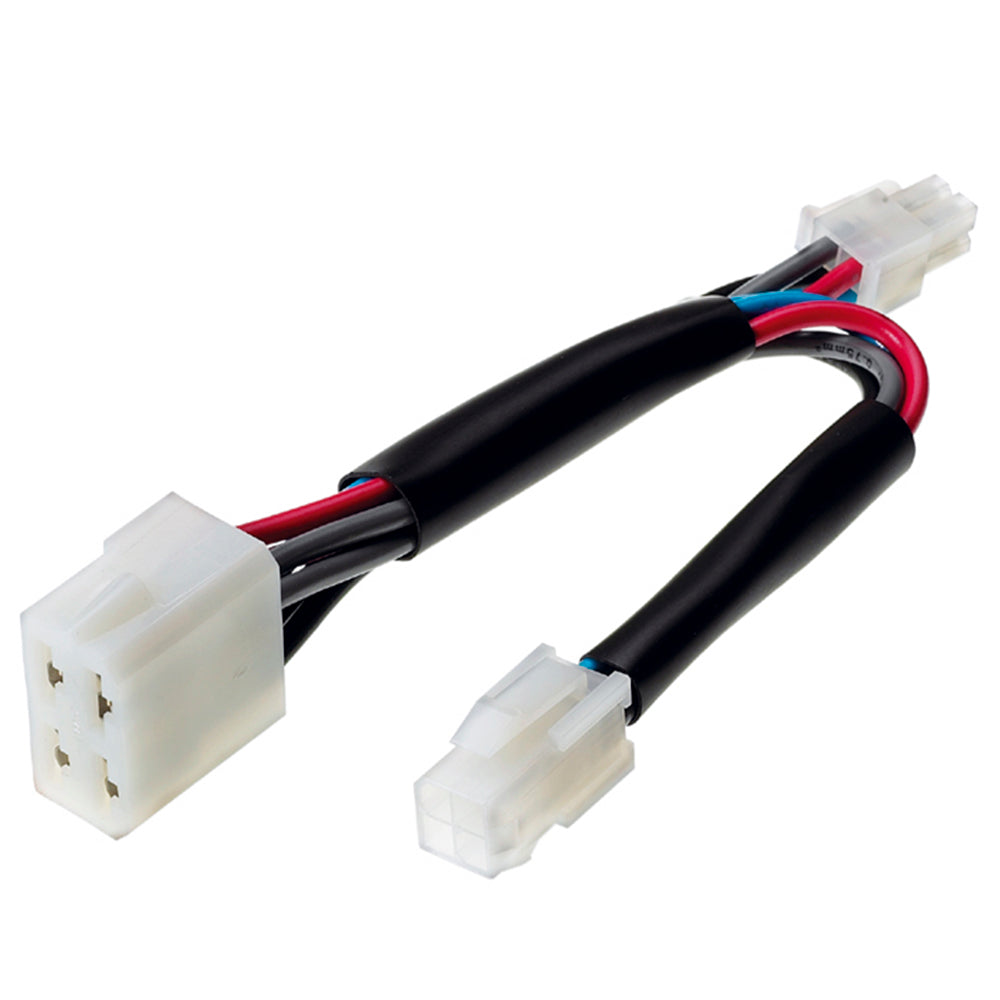

Lewmar Bow Thruster Y Connector for Dual Controls

Choosing a bow thruster comes down to matching thrust to your boat's total wind area and the thruster's distance from the pivot point, then confirming the hull can accept the resulting tunnel diameter and that your DC system can deliver the current. Work in that order and the brand decision becomes straightforward. This guide covers the selection logic across the major makers so you can size correctly the first time.

Know which type your bow can take? Go straight to the units:

Size on thrust against the boat’s wind area and the thruster’s distance from the pivot point, then confirm the tunnel diameter and the DC current the system can deliver — not on boat length alone.

Written for experienced cruising sailors on 30-45 ft boats who want a factual, engineering-first path to specifying a thruster, without marketing claims. We focus on selection and sizing only, not installation labor or stock.

Bow thrusters at a glance

Type What you'll find / how to choose
Tunnel (electric) thruster The default for most cruisers 30-45 ft. Read thrust rating from the maker's table by length and windage class, then confirm the matching tunnel diameter fits your bow section at the required submersion depth.
Hydraulic thruster Suited to larger or long-duty applications where continuous run-time and heat are concerns. Consider only if you already run a hydraulic system or need extended duty cycles.
Bow only The common single-thruster choice. Handles the bow, which is where windage and dock walk are hardest to control under power.
Bow plus stern Adds beam-on control and true sideways translation. Worth it on higher-windage or twin-berth-difficulty boats; doubles the electrical and installation demand.
Thrust rating Selected from the maker's table using two inputs together — boat length and windage class (freeboard, doghouse/dodger, rig height). Length alone under-specifies a tall, high-sided cruiser; weight/displacement is not the driver.
Thruster position (lever effect) Mount as far forward of the boat's pivot point as the hull allows. The same motor produces more effective turning force the farther forward it sits — the first factor in Lewmar's own sizing guide, and it matches Sleipner's "pivot point" factor.
DC voltage (12V vs 24V) Higher voltage reduces cable size and voltage drop for a given thrust. Match to your house bank architecture and the thruster's current draw.
Lewmar 140TT 12V electric tunnel bow thruster complete unit
A complete electric tunnel thruster unit (Lewmar 140TT, 12V). The motor sits above the tunnel; thrust rating and tunnel diameter are the two specifications to confirm against your boat's sizing table and bow section.

Update (October 2026): Do I need a bow thruster on a sailboat?

Not every boat benefits equally. The need rises sharply with length overall, displacement, windage (tall freeboard, a flybridge, or a large deckhouse), and how complicated your typical berthing situation is. A 28-foot sloop with good engine response and a finger berth rarely needs one; a 45-foot trawler with a high flybridge berthing stern-to almost certainly does.

A thruster is worth having on boats over about 38–40 feet where rudder authority at low speed is limited, for single-handed sailors who cannot rely on crew to work spring lines, on pontoon and wide-beam hulls whose flat surfaces catch crosswinds aggressively, on catamarans with large windage and little prop-walk, and in tidal marinas where the current direction changes with every visit. You can usually skip one on sailboats under 35 feet with a well-balanced keel, on boats with stern drives or outboards that already steer well at low speed, and on boats that live at anchor rather than in crowded marinas.

How do I size the thrust rating?

Thrust rating comes from two inputs read together, not one adjusted after the other. Every major maker's sizing table already varies by boat length and windage class — Lewmar's chart, for example, runs light/medium/heavy displacement-and-windage columns alongside length, because a 40 ft flush-decked cruiser and a 40 ft boat with a tall doghouse, dodger, and high rig need different thrust even at the same length. Read the row that matches your boat's freeboard, cabin height, and rig — not the length column alone.

The other input tables don't fully capture is position: as Sleipner puts it, thruster power is mainly determined by a boat's design, not its weight — total wind area and the tunnel's distance from the boat's pivot point matter more than displacement. Boat weight is not part of this calculation.

Does where the thruster sits matter as much as its rating?

Yes — it's the first factor in Lewmar's own installation guide, and Sleipner lists the same thing as the boat's "pivot point." Mounting the thruster as far forward as the hull allows maximizes its lever arm: the same motor swings the bow with more effective force the farther it sits from the pivot point. Two identical thrusters mounted at different points on the same hull will not perform the same — position changes the outcome as much as the rating on the spec sheet. Confirm the farthest-forward position the hull section allows before you finalize the thrust rating; a smaller unit mounted well forward can outperform a larger one mounted closer to the pivot.

What sets the tunnel diameter?

The required thrust rating does — not the other way around. Once you know the thrust you need (length, windage class, and mounting position from above), the maker's chart pairs that thrust with a matching tunnel diameter, because a larger tunnel moves more water and does so more efficiently and quietly at a given thrust. Only after you have that required diameter do you check whether your bow section can accept it.

Lewmar's installation guide is specific about the fit once you know the diameter: mount the tunnel with a minimum of 1ר of submersion below the waterline (0.75ר as an absolute minimum) to keep it from drawing air and losing thrust when heeled or pitching, with a minimum tunnel length of 2ר. If your bow section can't accommodate the diameter the required thrust calls for, the fix is a different mounting position, a retractable or external unit, or in some cases a stern-only or hydraulic solution — not simply downsizing the thruster to fit the available space.

Update (October 2026): Can I add a bow thruster to an existing boat?

Yes — retrofitting a tunnel thruster to most fiberglass monohulls and multihulls is standard yard practice, though it takes planning around hull thickness, available bow volume below the waterline, and electrical capacity: the battery bank and cabling may need an upgrade to sustain the unit's peak draw. The hull section must have sufficient thickness to accept the tunnel, confirmed by a qualified installer or the unit manufacturer's specific requirements. Steel and aluminum hulls accept welded tunnel tubes instead of glassed-in fiberglass ones, and jet thrusters avoid the tunnel entirely where cutting one is not structurally advisable.

Electric or hydraulic?

For 30-45 ft cruisers, electric is almost always the right answer: simpler install, no separate hydraulic circuit, and duty cycles that suit short docking bursts. Electric units are rated for intermittent duty and will thermally protect after sustained use. Consider hydraulic only where you need long, continuous run-time or already have a hydraulic system aboard.

Update (October 2026): Tunnel thruster or jet thruster?

A bow thruster spins a propeller — or an impeller, in jet-thruster designs — inside a cylindrical tunnel bored athwartships through the hull below the waterline. When activated, it pushes a column of water to one side and generates lateral thrust at the bow, letting the skipper pivot the boat at low speed when the rudder is nearly useless.

Electric tunnel thrusters are by far the most common type on recreational boats. They draw power directly from the vessel's battery bank and are controlled from a joystick or push-button panel at the helm, or remotely via a wireless fob. Jet thrusters use a water-jet impeller with a hull-mounted intake instead of an open tunnel, which suits shallow-draft boats or fine bow sections where cutting a full tunnel is impractical. Hydraulic thrusters appear mainly on commercial vessels and larger yachts that already carry a central hydraulic plant.

Lewmar 185TT electric tunnel bow thruster, 24V, 143.3 lbf (65 kgf) of thrust
Lewmar 185TT Electric Bow Thruster — a 24V tunnel unit delivering 143.3 lbf (65 kgf) of lateral thrust, a common fit for mid-size cruisers.

Bow only, or bow and stern?

A bow thruster alone controls the end that is hardest to manage under prop walk and crosswind. Adding a stern thruster gives you independent control of both ends and lets you translate the boat sideways off a dock, which is valuable in tight marinas or with a high-windage hull. It also roughly doubles the electrical load and installation, so weigh it against how often you dock short-handed in difficult conditions.

Which should I choose?

For most 30-45 ft cruisers, start with a 12V electric tunnel thruster, read off the maker's table using both your boat's length and its windage class (freeboard, doghouse/dodger, rig height — not weight), and mount it as far forward as the hull allows to maximize lever effect. Take the resulting thrust rating to the matching tunnel diameter, then confirm your bow section can meet the minimum submersion (1ר, 0.75ר minimum) and length (2ר) that diameter needs. Verify your house bank can supply the unit's peak current with acceptable voltage drop at the motor — move to 24V if a long cable run would otherwise pull delivered voltage down and undercut real thrust. Add a stern thruster only if you routinely dock short-handed in tight, high-wind berths.

Update (October 2026): tunnel or retractable, what a bow thruster kit includes, and what Side-Power is

This update answers three questions sailors ask before they buy: tunnel or retractable, what comes in a "kit", and what the Side-Power name means. Figures come from our product listings and from the Lewmar and Sleipner official sites.

Tunnel or retractable bow thruster?

Choose a tunnel thruster if your bow has the internal volume and the depth for a fixed tube through the hull; choose a retractable thruster if the unit has to stow inside the hull and add no drag underway, as on performance sailboats and flat-bottomed hulls that lack the draft for a tunnel. Sleipner's own comparison calls a well-made, professionally installed tunnel thruster the best choice when the space is there, and lists retractables for bespoke yachts and flat-bottomed boats without the draft a tunnel needs.

Type How it works Where it fits Trade-off (Sleipner)
Tunnel Fixed tube through the hull, thruster inside it Bows with enough internal volume and hull depth Needs ample internal space and fibreglass work; Sleipner recommends professional fitting; some noise
Retractable Stows inside the hull, then deploys below it for docking Sailing yachts and flat-bottomed hulls where drag matters or draft is short More complex, larger internal footprint, a short delay while it deploys
External (pod) Torpedo-shaped unit mounted under the hull Boats with little internal space Adds some drag; not recommended for planing hulls

Lewmar describes its vertical retracting thruster the same way: it retracts fully into the hull, adds no drag, deploys vertically and mounts further forward than a standard tunnel thruster for more turning leverage, and its motors sit inside the hull with a manual raise-and-lower if power is lost. Lewmar's page puts that model at vessels from about 43 ft to 150 ft. We do not list a complete Lewmar retracting thruster. The retractables in our catalog are the Side-Power (Sleipner) SR, SRL and SRV series in 80 and 100 kgf, 12 V and 24 V, such as the SRV80 12V, the SR80 12V and the SRL100 12V, plus the Max Power Vip150 12V, which its listing describes as an electric retractable with a motor-driven retraction and deployment mechanism. See all Side-Power retractable thrusters.

On the Sleipner site, the SRL and SRV are flange-mounted and the third version, the SR, is moulded directly into the hull. The SRV80 page gives a 185 mm tunnel, 96 kg of thrust at 12 V and 80 kg at 10.5 V, vertical installation and boats of about 33 to 49 ft (10 to 15 m).

What does a bow thruster kit include?

In our catalog, the one thruster listing sold as a complete kit is the Lewmar 110TT 12V kit (#591102): the thruster, a 200 A fuse, a joystick panel, a fuse holder, a 7 m (23 ft) control cable with connectors and a 60 cm (2 ft) tunnel. The listing gives 12 V, 1.50 kW (2.00 HP), a 110 mm (4 1/3 in) tunnel, 61.7 lbf (28.0 kgf) of thrust, a 230 A current draw and a 200 A fuse rating. The same thruster alone is #591101, and the 60 cm tunnel is sold separately as the Lewmar GRP tunnel, 110 mm x 0.6 m.

The thruster listings we checked, such as the Lewmar 140TT 12V (#591482) and the Side-Power SE60 12V, do not list any bundled parts. Use the kit contents above as your checklist for any other thruster: controls, fuse and fuse holder, control cable and tunnel. Other products with "kit" in the name are not complete thrusters. They are parts, for example the Lewmar 140TT anode kit, the Lewmar 140TT support bracket kit, the Lewmar IP cover kit, the Side-Power remote control kit and the Max Power Eco motor kits.

What is Side-Power (Sleipner)?

Side-Power is the thruster brand of Sleipner, the Norwegian marine company. Sleipner says it adopted the Side-Power name in the mid-1980s and has gone by Sleipner since 2021, with products, spare parts and article numbers unchanged. That is why our titles read "Side-Power (Sleipner)". In our catalog the range includes the SE electric bow thrusters from the SE25 to the SE130, the SX stern thrusters, the SR, SRL and SRV retractables, and the control panels, remote kits, anodes, fuses and tunnels that go with them. Browse the Sleipner bow thrusters, or read what to look for when buying a Sleipner bow thruster.

Read the thrust figure in the title with care. In the listings we checked, it is the rating at 10.5 V, not at 12 V: the SE60 title says 60.0 kgf, and its technical table gives 73 kgf at 12 V and 60 kgf at 10.5 V, with a nominal current draw of 370 A. The listings also describe galvanic separation between the motor and the gear leg, a sealed gear leg with a mechanical seal, and an Intelligent Power Control unit that adds a delay between drive directions.

Frequently asked questions

Does a bigger thruster always dock better?

No. Oversizing raises current draw, demands heavier cabling and a larger tunnel your hull may not accept, and adds weight in the bow. Size to the maker's table for your length and windage class, and mount it as far forward as the hull allows — that combination beats jumping to the largest unit that fits.

Can I run a thruster off my existing house bank?

Sometimes, but a thruster's brief current draw is high. Check the unit's rated draw against your bank's capacity and cable run, and confirm voltage drop stays within the maker's limit. Many installs use a dedicated battery near the thruster to shorten the high-current run.

Why do thrusters have a run-time limit?

Electric DC motors are rated for intermittent duty and build heat quickly at full load. Makers publish a duty cycle (a run-time and cool-down) and most units thermally cut out to protect the motor. Dock in short bursts rather than holding continuous thrust.

Is a stern thruster worth it on a 40 ft boat?

It depends on your berths and how often you dock short-handed. A stern thruster adds true sideways control and helps in tight, crosswind marinas, but it doubles the electrical and installation work. Many owners are well served by a correctly sized bow thruster alone.

Do I need a bow thruster on a sailboat?

They are most valuable on sailboats over about 40 feet, fin-keel designs with limited prop-walk control, and for single-handers who dock in tight or windy marinas. Well-balanced boats under 35 feet usually maneuver fine without one.

Can you add a bow thruster to a boat after it's built?

Yes. Fiberglass, steel, and aluminum hulls can all be retrofitted as long as the tunnel keeps at least 1× its diameter of submersion below the waterline (0.75× as an absolute minimum) and there is enough bow volume for the tunnel diameter.

What is the difference between a tunnel thruster and a jet thruster?

A tunnel thruster spins a propeller inside a tube cut through the hull; a jet thruster uses a water-jet impeller with a hull intake and no open tunnel, making it a better fit for shallow-draft boats or very fine bows.
