How to Change a Lewmar Bow Thruster Zinc Underwater

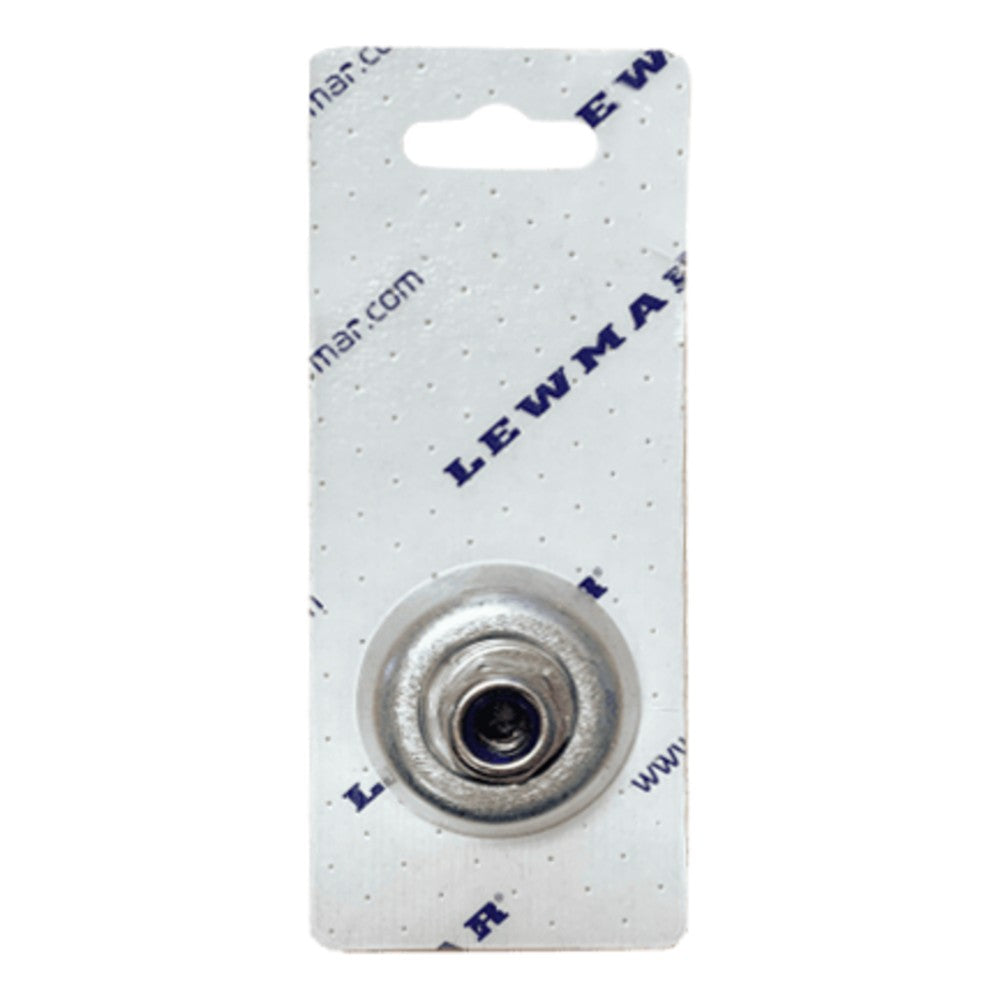

Lewmar Bow Thruster Anode Kit 185TT sacrificial zinc anode kit

On a Lewmar TT tunnel thruster the zinc anode sits on the propeller shaft, between the propeller and a small washer, held by the propeller nut — so changing it means taking off the propeller nut, fitting the new anode in the right order and tightening the nut to Lewmar's torque. Before anyone gets in the water, the thruster's power must be isolated. Lewmar's own manual schedules the anode replacement at the annual boat service; this guide covers the safety steps, the assembly order and the inspection schedule.

Underwater zinc replacement at a glance

Question In-water (dive) replacement Haul-out replacement
When it makes sense The anode is due for replacement and the boat stays in the water — only with the thruster's power isolated The boat is already scheduled for bottom work, which is when Lewmar's manual lists the anode replacement (annual boat service)
Tools needed The Lewmar anode kit for your thruster (it includes the mounting hardware), dive gear, a wrench or socket that fits the propeller nut, a length of wood to stop the propeller turning The Lewmar anode kit for your thruster, a wrench or socket that fits the propeller nut, a length of wood to stop the propeller turning, a torque wrench
Skill level Comfortable diver working at the propeller, with a second person aboard Basic hand tools, no diving

Isolate the thruster's power before you work near the propeller

Warning: the propeller of a tunnel thruster can start the moment the control is pressed. Before a diver goes anywhere near the tunnel or the propeller:

  • Switch the thruster's battery switch off, or remove the thruster fuse. Lewmar's manual says to check that the battery switch is off or to remove the fuse before working on the unit, and it requires the installation to have a battery switch.
  • Tell everyone aboard that a diver is working at the thruster and that nobody may switch it on. Keep the switch or fuse under the control of the person who isolated it until the diver is out of the water and clear of the tunnel.
  • Do not rely on the control panel or joystick being idle. Lewmar warns that a thruster should not be operated close to swimmers because it generates a powerful suction of water.
  • Never run the thruster out of the water to test it. Lewmar warns that this is very dangerous: the motor over-speeds and the propeller can cause serious damage to whatever it touches.

Why does a Lewmar bow thruster need a zinc anode?

Zinc anodes protect the thruster’s underwater metal components through sacrificial protection: the zinc is deliberately the least noble metal in the circuit, so it corrodes first. When the zinc wears away and is not replaced, the thruster's other underwater metal parts are left without sacrificial protection. Lewmar's anode kits are designed for thrusters fitted with a bronze hub.

Lewmar Bow Thruster Anode Kit 250TT/300TT sacrificial zinc anode kit
Lewmar Bow Thruster Anode Kit 250TT/300TT — OEM sacrificial anode kit sized for Lewmar’s larger 250TT/300TT tunnel thrusters.

What tools and equipment do I need to change the zinc?

  • The Lewmar anode kit for your thruster model: 140TT, 185TT or 250TT/300TT (the kit includes the mounting hardware)
  • A wrench or socket that fits the propeller nut
  • A length of wood to place between a propeller blade and the tunnel to stop the propeller turning, as Lewmar's manual does when tightening the nut
  • A torque wrench, to tighten the propeller nut to the value in Lewmar's manual
  • A second person aboard who knows the thruster is isolated — strongly recommended
  • Dive gear and a waterproof light if the work is done in the water

How do I change the zinc anode step by step?

  1. Isolate the power: switch the thruster's battery switch off or remove the thruster fuse, and keep it that way until the diver is out of the water and clear of the tunnel.
  2. Inspect the anode: look at its condition and compare it with the replacement schedule you have set (see below).
  3. Hold the propeller and remove the propeller nut: stop the propeller turning, for example with a length of wood between a blade and the tunnel (the method Lewmar's manual shows for tightening the nut), then take off the nut, the small washer and the old anode. Lewmar's manual gives the assembly order and torque but no removal procedure, so removal is simply the reverse of that order.
  4. Fit the new anode in Lewmar's order: onto the propeller shaft, in this order — large washer, propeller, anode, small washer and nyloc nut.
  5. Tighten the propeller nut to Lewmar's torque: 10 Nm (7.4 lbs.ft) on the 140TT, 15 Nm (11 lbs.ft) on the 185TT, 35 Nm (26 lbs.ft) on the 250TT and 300TT. Do not overtighten.
  6. Check the propeller: it must be centred, turn freely and not touch the tunnel. Do not antifoul the zinc anode; Lewmar says the bronze hub and propeller may be antifouled if desired.
  7. Restore power only when the diver is out: switch the battery switch back on or refit the fuse once everyone is clear.
Lewmar Bow Thruster Propeller 140TT replacement propeller
Lewmar Bow Thruster Propeller 140TT — OEM replacement propeller for the 140TT tunnel thruster; the anode is fitted on the propeller shaft beside it.

How often should I check and replace the thruster zinc?

On a new installation, Lewmar's manual says to check the anode after approximately 3 to 4 months, to gauge an appropriate replacement schedule for your boat and water. At the annual boat service, Lewmar lists replacing the anode alongside removing debris from the tunnel, propeller and hub. Keeping a spare anode kit aboard means a swap never has to wait on a parts order.

Lewmar Bow Thruster Drive Pin 110TT underwater gear leg hardware
Lewmar Bow Thruster Drive Pin 110TT — one of the small hardware components on the underwater gear leg the zinc anode is there to protect.

Frequently asked questions

Can I change a bow thruster zinc without hauling the boat out?

Lewmar's manual lists replacing the anode at the annual boat service and does not describe an in-water procedure. If you choose to do it in the water, the thruster's power must be isolated first (battery switch off or fuse removed), nobody may switch it on while a diver is at the tunnel, and a second person should be aboard.

How do I know when the thruster zinc needs replacing?

Check it about 3 to 4 months after a new installation to gauge a replacement schedule, then replace it at the annual boat service, as Lewmar's manual lists. Replace it earlier if your own checks show it is mostly gone.

What does the zinc anode actually protect?

It is the sacrificial metal: it corrodes first so that the thruster's other underwater metal parts do not. Lewmar's anode kits are for thrusters fitted with a bronze hub.

Should I use thread locker on the new anode?

Lewmar's manual does not call for it. The anode is held on the propeller shaft by a washer and a nyloc nut tightened to a set torque; the manual uses thread locker only on the hub and saddle bolts when the thruster is installed. Follow the manual rather than adding a locking compound.

Should I paint or antifoul the anode?

No. Lewmar's manual says not to antifoul the zinc anode (the bronze hub and propeller may be antifouled if desired).

Do I need the exact Lewmar anode for my thruster model?

Yes. Lewmar anode kits are made per model: the 140TT kit for the 140TT, the 185TT kit for the 185TT, and one kit for the 250TT and 300TT. The kit includes the mounting hardware.
