A masthead wind indicator (wind vane) is a mechanical, electronics-free device that shows the direction of the apparent wind, letting you steer, trim, and time your tacks and gybes by eye. Because it runs on nothing but the breeze, it belongs on every sailboat as a reliable backup to electronic instruments and, on many boats, as the primary wind reference.
Wind indicators at a glance
| Type | Best for | Mounting | How you read it |
|---|---|---|---|
| Vertical masthead vane | Racing & cruising boats above dinghy size, up to ~30 ft | Top of the mast | Always in the same position — easy to read at a glance |
| Horizontal vane | Dinghy racers & single-handers (Laser, Finn, Sunfish) | At the mast base | Changes position by tack (port vs. starboard); keeps your eyes on the water |
| With index arms | Sailors optimizing pointing angle & tack timing | Either mounting | Reference arms mark your target course band |
What is a masthead wind vane and how does it work?
A wind vane is a clever bit of engineering. A vertical tube supports the air vane, which pivots on a horizontal axis at its base. The wind catches the blade and rotates it so the leading edge faces into the breeze, showing you the direction from which the wind is blowing. Because it is purely mechanical and independent of any electronic interface, it keeps working when batteries die and displays fail — which is exactly why it is a must-have piece of onboard equipment.
Vertical or horizontal — which vane should I choose?
The choice comes down to the boat and how you sail it. Vertical vanes are usually made for racing and cruising boats bigger than dinghies but up to about 30 ft. They sit on top of the mast and are easy to read because they always hold the same orientation. Horizontal vanes are more common on dinghies and single-handed boats such as the Laser, Finn, and Sunfish. They are a bit trickier to read because their position changes depending on which tack you are on, but they are typically mounted at the mast base so the sailor can keep an eye on the water and the fleet instead of craning up to the masthead.
How do I read a wind vane sailing upwind?
Sailing upwind, the key question is when to tack. First, learn where the vane points on your normal close-hauled course (roughly 30–40 degrees off the wind direction). If the vane begins to swing toward the bow — closer to head-to-wind than before — you have lost pressure or been knocked (a header); tack to find the puffs or take the lift on the other tack. If instead the vane points farther from the bow and more to windward, you are lifted or in more pressure, so push the helm down and point higher. If your vane has index arms, keep the tail of the vane over one arm to hold the ideal course: outside the arms means you can point higher, and between the arms means it is time to tack.
How do I read a wind vane sailing downwind?
Downwind, you generally want to be headed as much as possible, sailing the most direct course to the leeward marks. Aim for the marks and watch the vane: you are well placed if it points at the mark or just slightly toward the mainsail side. Otherwise, consider gybing onto the faster course. With index arms, keep the vane just inside the range of the arms — you do not want it out of range (that means you are reaching, not running) or dead center (the mainsail will blanket your headsail or spinnaker and rob it of power). Some boats are exceptions: a Laser, for example, is often faster sailing by the lee or on a broad reach.
Frequently asked questions
Why do I need a wind vane if I have electronic instruments?
A wind vane is mechanically simple and independent of any electronic interface, so it keeps showing the apparent wind even if your instruments or power fail. That reliability makes it valuable as either a primary reference or a backup.
What size boat is a masthead wind indicator for?

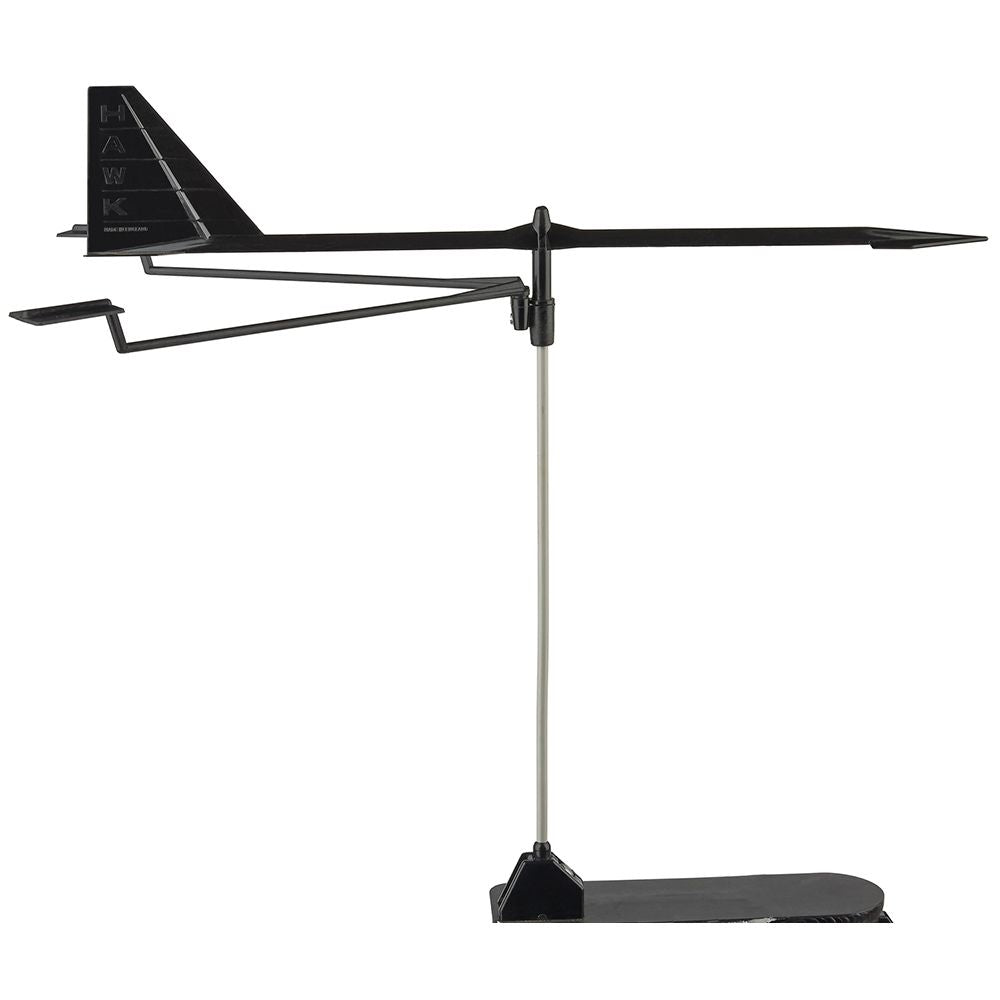

Vertical masthead vanes are typically made for boats bigger than dinghies and up to about 30 ft. Larger cruising models, such as the Schaefer Great Hawk, are sized for boats in the roughly 8 m to 20 m range.
Why is a horizontal vane harder to read?
A horizontal vane changes its position depending on whether you are on port or starboard tack. The trade-off is that it mounts low at the mast base, so you can read it without looking up and losing sight of the water around you.
What are index arms on a wind vane?
Index arms are reference arms that mark your target course band. When the tail of the vane sits over an arm you are on course; outside the arms you can point higher, and between them (upwind) it is time to tack.
How does a wind vane tell me when to tack?
Watch how the vane moves relative to your normal upwind angle. Swinging toward the bow signals a header — tack to escape it; swinging to windward signals a lift, so point higher and hold your tack.
