Engine alarms, meters, and sensors are the monitoring instruments that detect problems inside your sailboat's engine and its compartment — high coolant or exhaust temperature, low oil pressure, charging faults, and dangerous gas or petrol fumes — and warn you before a small issue becomes a costly failure. Together they form the early-warning system that lets you run your auxiliary diesel with confidence, offshore or at anchor.
MAURIPRO's selection covers the full monitoring chain: sender units and sensors that read engine conditions, dashboard gauges and alarm instruments that display them, and dedicated gas, carbon-monoxide, and petrol-fume detectors that protect the engine compartment itself. Brands include Vetus, Veratron, and VDO.
Engine alarms, meters & sensors at a glance
| Category | What it does | Typical example |
|---|---|---|
| Sensors / senders | Read a physical value (temperature, level) and send a signal to a gauge or alarm | Veratron water-temperature sensor; Vetus exhaust-temp sensor |
| Gauges / meters | Display the sensor reading on the dashboard for at-a-glance monitoring | VDO Cockpit Marine 52 mm fuel-level gauge |
| Alarm instruments | Trigger a visual and/or audible warning when a value crosses a threshold | Vetus exhaust-temperature alarm dashboard instrument |
| Gas & fume detectors | Monitor the engine compartment air for gas, CO, or petrol fumes | Vetus Gas & Carbon Monoxide Detector GD1000 |
What are engine alarms, meters, and sensors?
A sensor (or sender) is the component that actually measures a condition — coolant temperature, exhaust-hose temperature, fuel level, or the presence of gas — and converts it into an electrical signal. A meter or gauge takes that signal and shows it on your dashboard, while an alarm instrument watches the same signal and sounds off when it crosses a safe limit. On a modern sailboat auxiliary these three layers usually work together: the sensor reads, the gauge displays, and the alarm protects.
How do exhaust-temperature alarms protect a sailboat engine?
Most sailboat auxiliaries are raw-water cooled, so a blocked intake, failed impeller, or clogged strainer can stop cooling water reaching the exhaust — and the first place that overheats is the wet-exhaust hose, long before the coolant gauge reacts. An exhaust-temperature alarm clamps a sensor onto the exhaust hose and warns you the instant it runs dry, giving you time to shut down before the hose, mixing elbow, or waterlock is damaged.
Do I need a gas or carbon-monoxide detector in the engine compartment?
Yes — any boat with a gas galley, an inboard engine, or fuel stored below deck benefits from compartment gas monitoring. Petrol fumes and LPG are heavier than air and pool in the bilge where they can ignite, while carbon monoxide from the engine is odorless and can accumulate in enclosed spaces. A dedicated detector continuously samples the compartment air and alarms before concentrations become dangerous, and its remote sensors can be mounted low in the bilge where fumes collect.
Which meters and sensors should I choose?
Match every gauge to a sensor of the same standard — a temperature or fuel-level gauge is calibrated to a specific sender resistance range and thread, so buying the pair together avoids inaccurate readings. Confirm the thread size and port on your engine block or tank (for example 1/4"-18 NPT versus M14x1.5 on a coolant port), your system voltage (12V or 24V), and whether the instrument you're adding already includes its sensor or expects one separately. For fume detection, choose the detector for the hazard you carry — CO for any inboard, petrol-fume sensing for gasoline systems.
Frequently asked questions
What's the difference between a sensor and a gauge?
The sensor (or sender) measures the condition and outputs a signal; the gauge or meter displays that signal on your dashboard. Many alarm instruments read the same sensor and add an audible or visual warning when a threshold is crossed.
Why is exhaust temperature worth monitoring separately from coolant?
On a raw-water-cooled auxiliary, a loss of cooling water shows up at the wet-exhaust hose almost immediately — well before the engine coolant temperature climbs. An exhaust-temperature alarm catches a failed impeller or blocked intake in time to prevent hose and exhaust damage.
Do the Vetus exhaust and gas alarms include their sensors?
It varies by product. The Vetus Gas & Carbon Monoxide Detector GD1000 includes a sensor, whereas the Vetus exhaust-temperature dashboard instrument is sold without its sensor — you add the hose-mounted exhaust sensor separately. Always check the listing before ordering.
How do I pick the right temperature sensor thread?

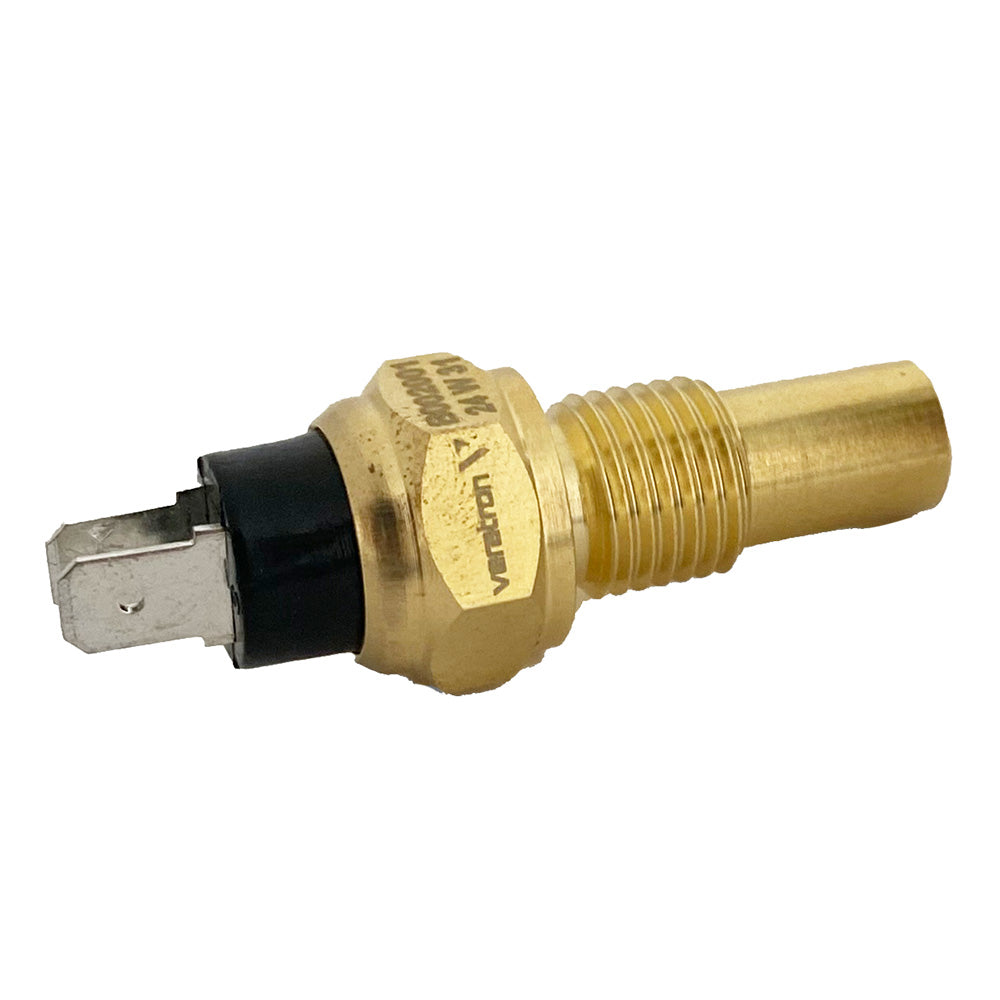

Match the sensor thread to the port on your engine. The Veratron water-temperature sensor, for example, comes in both 1/4"-18 NPT and M14x1.5 versions for a 120 °C range, so confirm your engine's coolant-port thread before ordering.
Can I add a gas or petrol-fume detector to an existing system?
Yes. Detectors like the Vetus GD1000 accept additional remote sensors, letting you monitor gas, carbon monoxide, or petrol fumes in more than one compartment from a single detector head.
Will these gauges work on both 12V and 24V systems?
Check each instrument's rating. Some, like the Vetus gas/CO detector, are dual 12/24V, while alarm instruments such as the exhaust-temperature panel are voltage-specific (a 12V version is stocked), so match the unit to your boat's electrical system.
