A boom vang applies downward force on the boom to control mainsail twist and leech tension, keeping the upper mainsail from spilling wind and preserving pointing ability and drive. The right vang for your boat depends on size, load, and how you sail: block-and-tackle, rigid gas-spring, or hydraulic.
Boom vang types at a glance
| Vang type | Typical boat size | Key advantage | Trade-off |
|---|---|---|---|
| Block & tackle | Dinghy to ~45 ft | Simple, serviceable; 4:1 to 16:1 purchase | No boom support; needs a topping lift |
| Rigid (gas spring) | ~25 to 60 ft | Supports boom weight, replaces topping lift, adjustable under load | Added weight vs. tackle |
| Hydraulic | ~30 ft and up | Fingertip control of huge loads (5,000 kg+), infinite adjustment | Seal and fluid maintenance; professional installation |
| Cascading tackle | Racing, all sizes | Extreme 24:1 to 32:1 purchase without a winch | Long line pull, more fouling and upkeep |
What does a boom vang actually do?
At its core, a boom vang counteracts the natural tendency of wind pressure to lift the boom and let the upper mainsail twist open. Without adequate vang tension, the upper third of the sail spills wind prematurely, costing pointing ability upwind and power on reaches. Proper vang application flattens the sail, tightens the leech, and lets you ease the mainsheet for better helm balance while maintaining the designed airfoil shape. On downwind legs the vang becomes your primary mainsail control, since mainsheet tension mostly affects boom position rather than sail shape when sailing deep.
Which vang type should I choose?
Block-and-tackle systems are the most traditional and widely applicable approach, using multiple sheaves to create mechanical advantage from 4:1 on small boats to 16:1 on larger cruisers. Every component is visible, serviceable, and replaceable with standard chandlery items. Rigid gas-spring vangs combine downward vang force with upward boom support in one unit: a nitrogen-charged strut carries the boom's weight when the mainsheet is eased, eliminating the need for a topping lift. Hydraulic vangs replace mechanical advantage with a cylinder that generates enormous force from a few pump strokes, offering infinite adjustment and working loads that routinely exceed 5,000 kg. Cascading tackle reaches 24:1 or 32:1 purchase for racing crews who want winch-free control.
Update (October 2026): flexible, rigid, Gnav or hydraulic — the four vang types compared
This update adds the Gnav (inverted) vang and compares all four types by how they work and whether you still need a topping lift.
| Type | How it works | Topping lift needed? | Best for |
|---|---|---|---|
| Flexible | Blocks with purchase apply downward force; simplest design | Yes, on midrange boats | Dinghies and midrange cruisers |
| Rigid (Hard Vang) | Air-spring (pneumatic) or gas-spring telescopic tube supports and de-powers the boom | No | Cruisers and racers wanting boom support |
| Gnav | Inverted strut pushes down on the boom from above | No | Small sport boats needing cockpit room |
| Hydraulic | Piston-in-cylinder driven by a plumbed hydraulic system | No | Large yachts with heavy booms |
How does a flexible vang differ from a rigid vang?
A flexible vang is the simplest type: it is built from blocks with a purchase system that pulls the boom down, and it lets you control leech tension regardless of mainsheet load. On midrange boats it still needs a topping lift to support the boom. A rigid vang, also called a Hard Vang, is an air-spring (pneumatic) telescopic tube with purchase building. It de-powers the sail quickly and holds the boom up on its own, so no topping lift is required.
Rigid vangs come with either a pneumatic air spring, as on the Harken Vang-Master (adjusted with a pump through a Schrader valve), or a gas spring, as on the Selden Rodkicker.
What is a Gnav vang?
The Gnav ("vang" spelled backward) is an inverted vang: a rigid strut extends obliquely upward from the boom to the mast, exerting a force that pushes down on the boom. It delivers the same leech control as a conventional vang but from above, which frees up cockpit space. It is commonly used on small sport boats such as the Melges 15, where the open room lets the crew move freely during maneuvers.
When should I choose a hydraulic vang?
Hydraulic vangs are the least common type because of their complexity, but the principle is the same: a stainless steel piston rod with an aluminum piston rides inside an anodized aluminum cylinder, sealed by a series of seals that need periodic servicing. Whether double-acting push-pull for large yachts with heavy booms or a gas-return design, the system requires the boat to be plumbed with hoses, a reservoir, and a control panel. These installations should be done professionally.
Which boom vang should I choose for my boat?
Choose a flexible vang for a simple setup on a dinghy or midrange boat where a topping lift is acceptable. Choose a rigid vang if you want to eliminate the topping lift and gain quick de-powering plus boom support. Consider a Gnav on a small sport boat where cockpit space matters, and reserve hydraulic vangs for large yachts with heavy booms that already run a hydraulic system.
Update (October 2026): boom vangs we stock, by boat and use
This update adds examples of the vangs MAURIPRO carries across the block-and-tackle, dinghy and rigid gas-spring types covered above.
Which boom vang is best for small boats?
The Ronstan Block & Tackle Boom Vang - 4:1 12-1 Series #RK12-435NC is a reliable and efficient solution for managing your sailboat's boom. It's built to make your sailing experience more enjoyable with quality components like solid bearing blocks and durable polyester line, suitable for boats up to 35.0 ft (10.7 m).
What does the Selden Rodkicker gas-spring kit do?
The Selden Rigid Boom Vang - Rodkicker Gas Spring Kit - For Type 05 (308-038-03) provides effortless boom lifting with its optional integral gas spring. It opens the sail leech automatically when the kicking strap is released, simplifying reefing and eliminating the need for a topping lift.
Update (October 2026): vang names, and which vang fits which boat
This update answers what sailors search for most: what the part is called, how a rigid vang differs from block-and-tackle and hydraulic vangs, and how the models we list line up by boat size. Every figure below is taken from the product listings.
What is a boom vang, a boomvang or a kicking strap?
A boom vang is the line, tackle or strut that holds the boom down so the mainsail leech stays tight when you ease the mainsheet. "Boomvang" is the same word written as one, and "kicking strap" is the same control under its other name. Our Selden Rodkicker listings use the second name: the gas spring lifts the boom when the kicking strap is released. Vangs come in four families, covered above: block and tackle, rigid, Gnav and hydraulic.
What is a rigid boom vang, and how does it differ from block and tackle, gas spring or hydraulic?
A rigid boom vang is a telescoping strut between the mast base and the boom that pulls the boom down and also holds it up, so it takes the place of the topping lift; a block-and-tackle vang only pulls down. The rigid vangs in our catalog are the Harken Vang Master range, adjusted with a pump, and the Selden Rodkicker range, which uses a gas spring to lift the boom. The Harken and Selden listings both say the vang eliminates the need for a topping lift. Harken's hydraulic vang listing says the cylinder also works as a topping lift, holding the boom up when reefing and keeping it level when the sail is flaked.
Browse by type: Rigid Boom Vangs, Block & Tackle Boom Vangs, Hydraulic Boom Vangs and Dinghy Boom Vangs.
| Type | Model in our catalog | Boat size in the listing | Figure in the listing |
|---|---|---|---|
| Dinghy block and tackle | Harken Dinghy Vang 12:1 Lower Unit | Max sail area 125 ft² (11.6 m²) | Max working load 400 lb (181 kg) |
| Block and tackle 4:1 | Ronstan RK6-420NC | Up to 20 ft (6.1 m) | Max working load 300 kg (660 lb) |
| Block and tackle 4:1 | Ronstan RK10-430NC | Up to 30 ft (9.1 m) | Max working load 400 kg (880 lb) |
| Block and tackle 4:1 | Ronstan RK12-435NC | Up to 35 ft (10.7 m) | Max working load 565 kg (1,240 lb) |
| Rigid, Harken Vang Master | Vang Master 1 and 2 | 18 to 26 ft (5.5 to 7.9 m) | Stroke 203 mm and 254 mm |
| Rigid, Harken Vang Master | Vang Master 3 and 4 | 25 to 36 ft (7.6 to 11 m) | Stroke 254 mm |
| Rigid, Harken Vang Master | Vang Master 5 and 6 | 35 to 46 ft (10.7 to 14 m) | Stroke 305 mm |
| Rigid, Harken Vang Master | Vang Master 7 and 8 | 45 to 56 ft (13.7 to 17.1 m) | Stroke 305 mm |

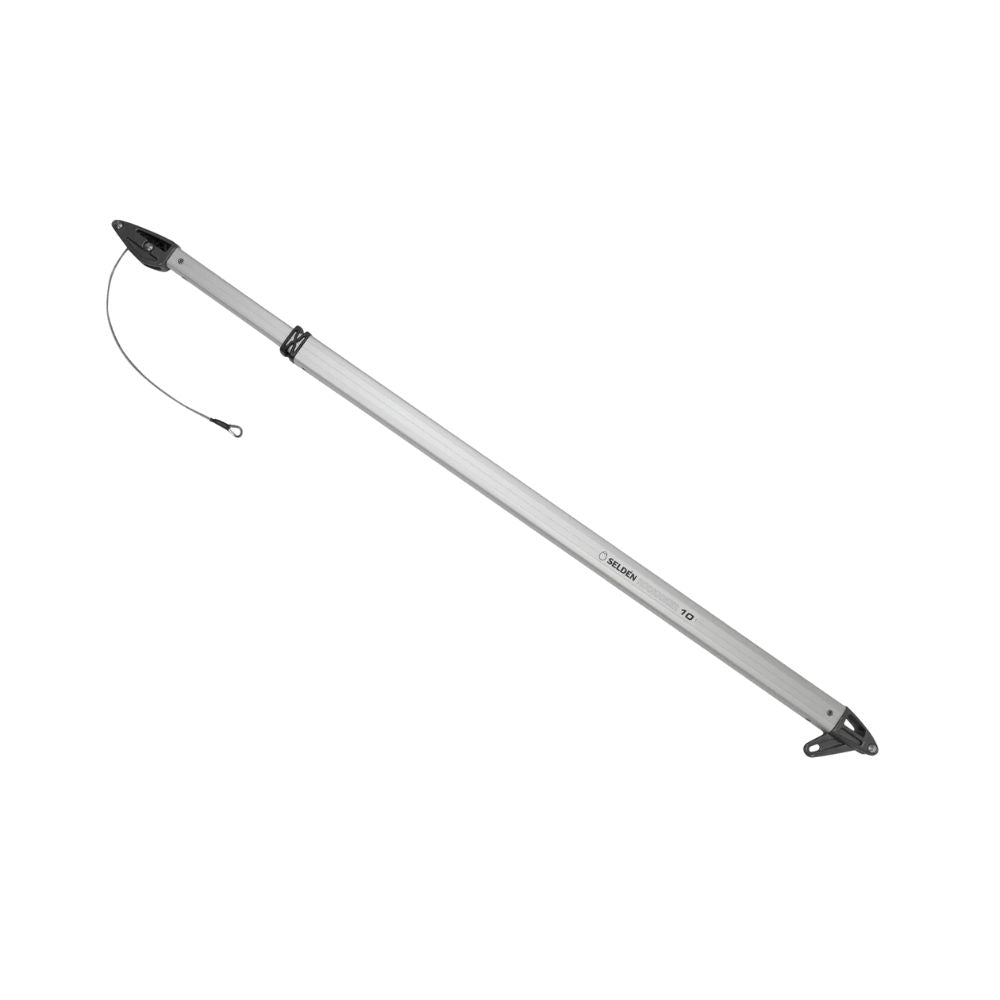

| Rigid gas spring, Selden Rodkicker | Type 05 | Up to 26 ft (7.9 m) | Safe working load 800 kg (1,764 lb) |
| Rigid gas spring, Selden Rodkicker | Type 10 | 26.1 to 35 ft (7.9 to 10.7 m) | Safe working load 1,200 kg (2,646 lb) |
| Rigid gas spring, Selden Rodkicker | Type 20 | 35.1 to 44 ft (10.7 to 13.4 m) | Safe working load 1,800 kg (3,969 lb) |
| Rigid gas spring, Selden Rodkicker | Type 30 | 44.1 to 60 ft (13.4 to 18.3 m) | Safe working load 3,800 kg (8,379 lb) |
| Hydraulic, Harken single acting | 90B and 110B | 70.1 ft (21.3 m) and above | Listing gives boat size only |
How do I size a rigid boom vang?
Pick the model whose listed boat-size range covers your boat, then check three numbers on the listing: the stroke or minimum length, the safe working load, and (on a Rodkicker) the spring strength. A Vang Master listing gives the pin-center length closed and open plus the stroke; the Vang Master 5, for example, measures 1,219 mm closed, 1,524 mm open, with a 305 mm stroke. Check that range against the distance between your mast-base and boom fittings at both ends of the boom's travel.
For a Rodkicker, the listing gives the minimum length (Type 10 is listed at 1.36 m and 1.67 m, Type 20 at 1.45 m, 1.72 m and 2.26 m, Type 30 at 2.2 m and 2.7 m) and the spring: no spring, normal, hard, and on Types 10 and 20 a super spring. The gas-spring kits are described as available in a range of strengths for different boom weights and angles; the listed spring force for a Type 10 with normal spring is 600 N, and for a Type 30 it is 2,500 N with the normal spring and 5,000 N with the hard spring.
Harken lists the Vang Master boom fitting, mast fitting and pump as separate parts, for example the Standard Boom Fitting for Vang Master 3 & 4, the Pivoting Mast Fitting for Vang Master 3 & 4 and the Micro Floor Drive pump for Vang Master 3 & 4, so add them when you order. More on the range in our Harken Vang-Master guide.
How do I size a boom vang for my boat?
Vang loads scale with mainsail area and wind strength, so start from the model table above, which lists boat size and the load figure from each product listing, and confirm against your vang manufacturer's sizing chart for your boat's LOA and mainsail area. Allow a margin over the expected working load, and when in doubt, size up.
Single-acting or double-acting hydraulic?
A single-acting hydraulic vang uses hydraulic pressure in only one direction, typically to extend the cylinder and apply downward force, relying on an internal spring, gas charge, or gravity to retract when pressure is released. This simpler design reduces maintenance points and suits the vast majority of monohull applications in the 30 to 70-ft range. Double-acting vangs use pressure for both extension and retraction, valuable where the vang must pull the boom down against significant uplift or where installation geometry means gravity alone will not consistently retract the cylinder.
How do I attach and position the vang?
The strongest vang provides no benefit if its attachment points fail. Boom attachments use tangs, straps, or through-bolted fittings on the boom's underside, ideally over a reinforced section or internal web; positioning too close to the gooseneck raises the force the vang must generate, while positioning too far aft may exceed the boom's designed load capacity. Mast-base or deck attachments must transfer load into the boat's structure without stress concentrations, using backing plates to prevent core compression or delamination. Aim for the vang to exert primarily downward force across the range from close-hauled to a deep reach, and confirm both extended and compressed lengths suit your boom's full travel.
Expert note — Settle the vang type before the purchase ratio. Block and tackle is the simplest and most serviceable, but it carries none of the boom’s weight, so you keep a topping lift; a rigid gas-spring vang supports the boom and lets the topping lift go. Either way the attachment points decide whether it lasts: tangs or straps over a reinforced section of the boom, and not so close to the gooseneck that the angle loads the fitting instead of the spar.
What are the most common mistakes when fitting a boom vang?
- Upgrading the vang and keeping the old attachment. The strongest vang provides no benefit if its attachment points fail. Tangs or straps belong over a reinforced section of the boom, not close enough to the gooseneck that the angle loads the fitting instead of the spar.
- Bolting a mast-base or deck fitting straight through the laminate. That load has to enter the boat's structure without stress concentrations; backing plates are what prevent core compression and delamination.
- Ordering a rigid vang without checking the stroke. Confirm the cylinder stroke covers the boom's full vertical travel with some margin, and that both extended and compressed lengths suit that travel.
Frequently asked questions
What is the difference between single-acting and double-acting hydraulic vangs?
Single-acting vangs apply hydraulic pressure in one direction and retract via spring, gas charge, or gravity, keeping maintenance low. Double-acting vangs power both extension and retraction for precise control against high uplift or difficult geometry.
How do I determine the correct hydraulic vang size for my boat?
Start with your boat's LOA and displacement against the manufacturer's sizing guide, then adjust up for heavy-air racing, long booms, or offshore use, and down for light-displacement boats with small mainsails. Confirm the cylinder stroke covers your boom's full vertical travel plus a margin.
Can I convert a block-and-tackle vang to a rigid or hydraulic system?
Yes, this is a common upgrade most boats can accommodate. Verify that your boom and mast-base or deck attachment points can handle the concentrated loads a rigid or hydraulic unit applies, ensure vertical clearance at all boom positions, and route any hydraulic lines to a convenient pump location.
Does a rigid gas-spring vang replace my topping lift?
Usually yes. A rigid vang such as the Harken Vang Master carries the boom's weight with its internal air spring, keeping the boom at a consistent height when the mainsheet is eased. Many offshore sailors still retain a topping lift as backup redundancy.
What maintenance does a hydraulic boom vang need?
Check hydraulic fluid annually, inspect fittings and hoses for leaks or corrosion, and cycle the system through its full range each season to keep seals pliable. Wipe the cylinder rod clean of salt, and plan on seal replacement whenever you see leaks, pressure loss, or reduced performance — manufacturers report service life varying widely by use and exposure, from under 5 years to 20+ years, rather than on a fixed schedule.
How much mechanical advantage can a cascading vang reach?
Most practical cascading vangs top out around 24:1 to 32:1 purchase; beyond that, friction losses and long line pulls make hydraulic vangs the better choice. Racing programs push cascading systems to their limits to save weight, while cruisers often prefer hydraulics for convenience.
What is a Gnav and why use one?
A Gnav is an inverted vang whose strut pushes down on the boom from above; it is popular on small sport boats because it opens up cockpit room for the crew.
Are hydraulic vangs worth it for a cruiser?
Hydraulic vangs require professional installation with hoses, a reservoir, and a control panel, so they are usually reserved for large yachts with heavy booms.
