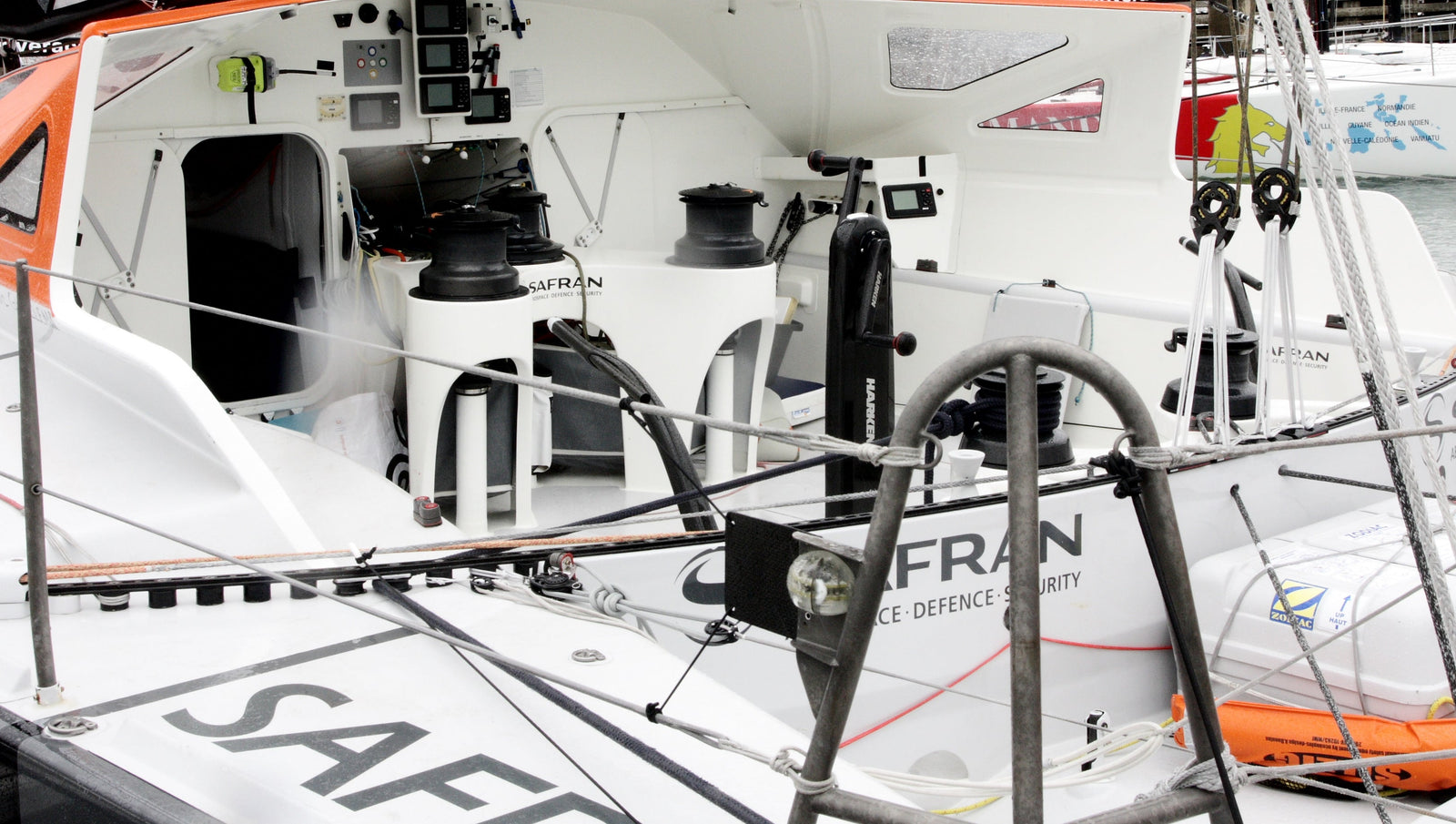

A sailboat steering system links the helmsman to the rudder through one of four transmission types — direct tiller linkage, wheel-and-cable, hydraulic, or electro-hydraulic — and every component must be sized to the boat's displacement, rudder load, and intended use. Below-deck cables, quadrants, sheaves, rudder foils, and autopilot drives all work as one chain, and a mismatch at any point creates weather helm, excessive wear, or steering failure when it matters most.
Steering systems at a glance
| System type | Typical boat size | How it works | Best for |
|---|---|---|---|
| Tiller (direct) | Under 30 ft LOA | Hand directly on the rudder stock via a tiller | Dinghies, one-designs, small cruisers wanting direct feel |
| Wheel & cable | 30–50 ft LOA | Wheel turns a drum; wire cables run over sheaves to a quadrant on the rudder stock | Coastal & offshore cruisers needing mechanical advantage |
| Hydraulic | 45 ft and up / twin rudder | Helm pump pushes fluid to a ram or cylinder on the rudder stock | Heavy displacement, dual-rudder, and power-assist installations |
| Electro-hydraulic | Any size w/ autopilot | Solenoid or constant-running pump driven by an actuator control unit | Autopilot-integrated and fly-by-wire steering |
What are the main parts of a sailboat steering system?
Every steering system is a chain of four functional groups: the helm input device (tiller or wheel), the transmission (cables and quadrant, hydraulic lines, or direct linkage), the rudder assembly (stock, bearings, and foil), and — increasingly — an autopilot drive. On a wheel-steered boat the wheel turns a drum that pulls stainless steering cable over idler sheaves to a quadrant clamped on the rudder stock. Each part must be rated for the loads it sees, because the whole system is only as strong as its weakest link.
How do I choose the right steering for my boat?
Boat length overall and displacement are the starting point. Boats under 30 ft LOA typically use tiller steering for its direct rudder feel and light weight, giving immediate feedback about water flow over the foils. Between 30 and 50 ft, wheel steering provides the mechanical advantage needed to overcome higher rudder loads — displacement rises roughly with the cube of length, so a 40-footer can carry four to five times the loads of a 25-footer. Above 50 ft, twin-rudder and hydraulic systems become common, staying immersed and effective at high heel angles where a single centerline rudder would ventilate.
How is rudder load calculated and what safety factor should I use?
Steering cables, quadrants, and linkages carry manufacturer Working Load Limits (WLL) that should exceed your calculated maximum rudder load by at least 3:1 for cruising and 4:1 for offshore work. As rough guidance, peak rudder force in kilograms is on the order of 0.5 × waterline length (m)² × boat speed (knots)² — a 35-ft waterline boat at 8 knots can generate forces approaching 400 kg that translate through the entire system. Quadrant sizing must match the rudder-stock diameter exactly while providing enough radius for the required cable sweep, and cable construction (7x7, 7x19, or compacted strand) trades flexibility against strength and service life.
What rudder foil configuration should I choose?
The rudder foil is the actual control surface, and its shape drives handling. Spade rudders, cantilevered from the stock, offer high lift-to-drag and responsive handling but are more exposed to grounding damage — common on racers and coastal cruisers. Skeg-hung rudders gain protection and bearing support at some efficiency cost, favored offshore. Transom-hung rudders are the simplest to install and inspect. Rudder balance — the percentage of foil area forward of the stock axis — sets steering effort: a balanced rudder (15–25% forward) sharply cuts helm loads, unbalanced designs are heavier but inherently stable, and most production boats use semi-balanced foils (roughly 8–15% forward). Match the original balance percentage when replacing.
How does autopilot integration fit in?

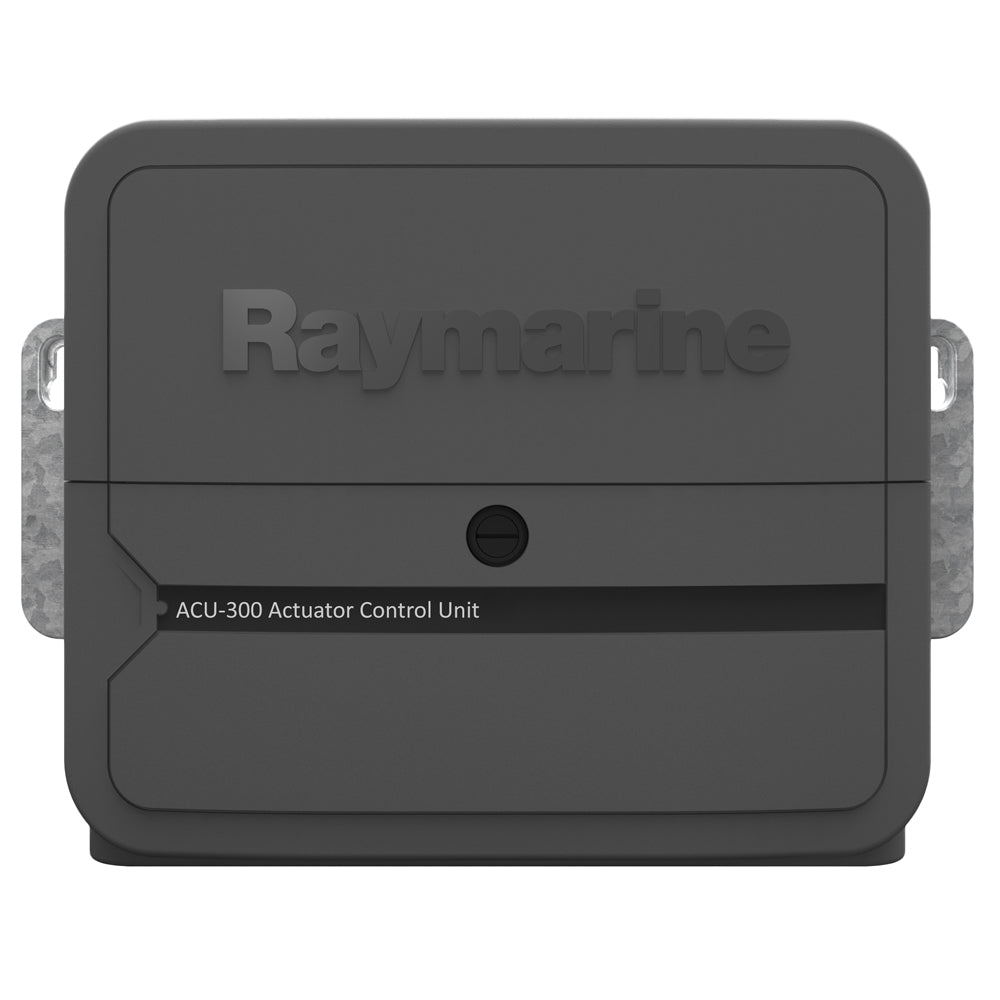

Autopilots cut helmsman fatigue on passage. Tillerpilots connect directly to tiller-steered boats via electric linear actuators; below-deck drives connect to the quadrant or rudder stock on wheel boats. For solenoid-controlled and constant-running hydraulic steering, an actuator control unit sits between the autopilot course computer and the steering hardware. A rudder feedback (reference) unit lets the autopilot monitor actual rudder position for precise closed-loop control — without it, the pilot must estimate rudder angle from actuator movement, giving slower, less accurate steering. Always match drive thrust to the boat's displacement and LOA range published by the manufacturer.
What about emergency steering?
Every offshore-capable boat needs a functional emergency steering system independent of the primary helm. Complete steering loss from cable failure, quadrant breakage, or hydraulic rupture can happen without warning. For wheel-steered boats the minimum is an emergency tiller that deploys without tools and stows accessibly — not buried under cockpit gear. Test the emergency system annually and after any steering maintenance, and have the crew practice steering with it before they need it.
Frequently asked questions
What are the four types of sailboat steering systems?
Direct tiller linkage, wheel-and-cable (wire over sheaves to a quadrant), hydraulic (helm pump to a ram), and electro-hydraulic (solenoid or constant-running pump driven by an actuator control unit). Boat size and rudder load determine which is appropriate.
What safety factor should steering components have?
Working Load Limits should exceed the calculated maximum rudder load by at least 3:1 for cruising and 4:1 for offshore use. Peak rudder force scales roughly with waterline length squared and boat speed squared.
How often should I inspect steering cables and the quadrant?
Inspect cables, sheaves, and the quadrant at least annually, with full service every three to five years. Look for broken strands (usually first at terminals and bend points), corrosion, groove wear, and play at the quadrant. Replace cables approaching ten years of service regardless of visible condition.
What is the difference between a balanced, semi-balanced, and unbalanced rudder?
It refers to the percentage of foil area forward of the stock axis. Unbalanced rudders (all area aft) are heavy to steer but self-centering; balanced rudders (15–25% forward) sharply reduce effort; semi-balanced designs (about 8–15% forward) split the difference and are most common on production boats.
Do I need a rudder feedback unit for my autopilot?
A feedback (reference) unit gives the autopilot actual rudder position for faster, more accurate closed-loop steering, which matters for GPS route following. Basic compass-course steering works without it, but extended passages benefit from adding one.
Can I convert wheel steering to tiller, or vice versa?
It is technically possible but involves real engineering trade-offs — adding a pedestal, quadrant, and cables (or removing the mechanical advantage a large rudder needs). Either conversion should be reviewed by a naval architect to confirm safe handling.
