An electric winch replaces manual grinding with a push-button motor, letting one crew member trim heavily loaded sheets and halyards effortlessly — the right choice comes down to boat size, load, and whether you run a 12V or 24V house system. This guide covers full electric winches, conversion kits that motorize an existing winch, and the handles, spares, and accessories that support them.
Electric winch options at a glance
| Option | Best for | What it does | Key consideration |
|---|---|---|---|
| Full electric winch | New installs, upgrades | Self-contained motorized winch (e.g. Selden or Harken Size 40–70) | Requires deck reinforcement + heavy cabling |
| Electric conversion kit | Keeping an existing winch | Adds a below-deck motor/gearbox to a manual winch | Winch model must be conversion-compatible |
| Portable electric handle | Occasional power assist | Cordless drill-style handle (WinchRite) drops into the winch top | No wiring; battery-limited duty cycle |
| Spares & accessories | Maintenance | Disconnect rods, O-rings, springs, screws | Match size and series exactly |
What is an electric winch and how does it work?
An electric winch is a self-tailing sailboat winch driven by an internal or below-deck electric motor. Instead of cranking a handle, the operator presses a foot switch or push-button and the motor turns the drum, delivering consistent, controlled power for sheets, halyards, and other loaded lines. This eliminates the physical strain of manual winching and lets a shorthanded crew maintain optimal sail trim and execute demanding maneuvers with confidence, especially in heavy air.

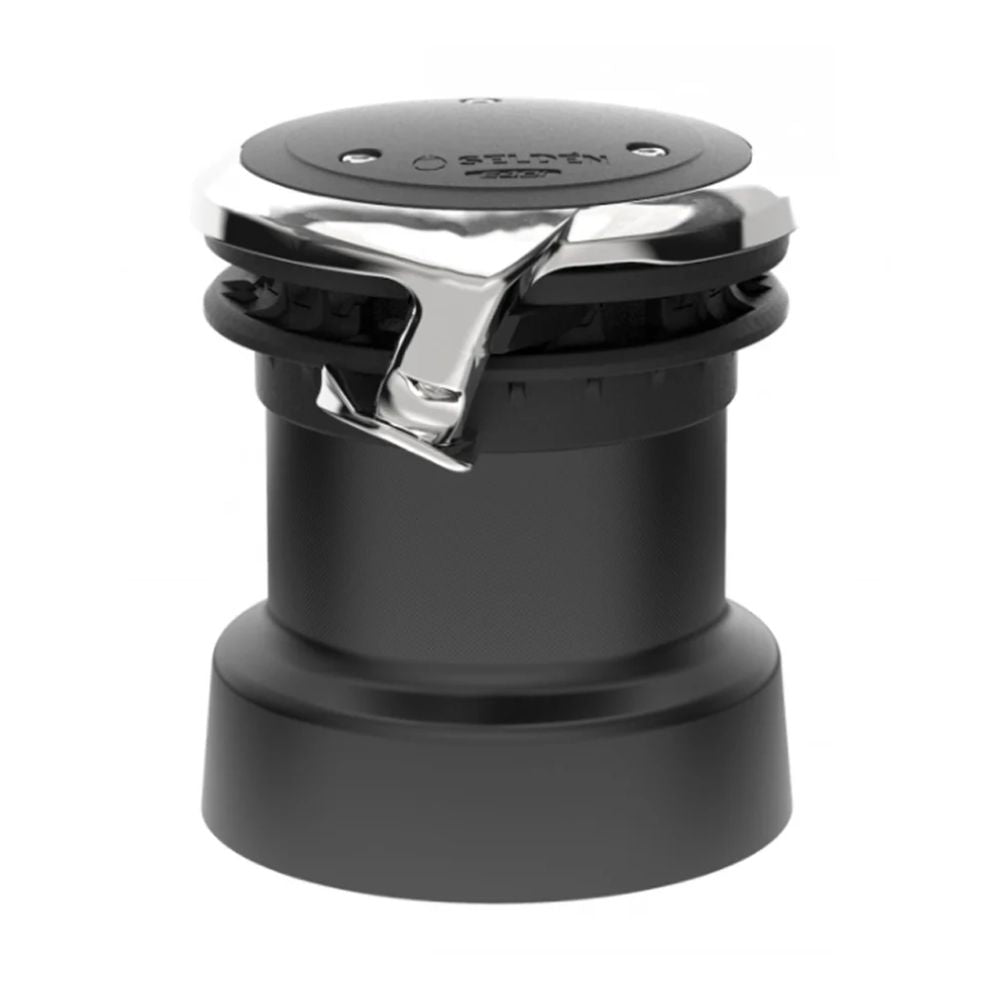

Electric winches range from compact Size 40 units suited to mid-size cruisers up to Size 70 and larger for big yachts. Brands like Selden and Harken build them with self-tailing drums and multi-speed gearing so the same winch trims quickly under light load and powers through when the load builds.
Do I need a full electric winch or a conversion kit?
If you are outfitting a new build or replacing a worn winch, a full electric winch is the cleanest solution — the motor, gearing, and self-tailing drum are engineered as one unit. If you already own a quality manual winch and want to add power, an electric conversion kit fits a motor and gearbox below deck and drives your existing drum, preserving the hardware you have while adding push-button operation.
Either path requires substantial deck reinforcement — backing plates and through-bolted mounting that distribute loads across the deck structure — plus heavy-gauge marine wiring, an appropriately rated circuit breaker, and an emergency stop. Both approaches keep manual override: you can always drop a standard handle into the winch top if power is lost.
How do I choose 12V vs 24V?
Your boat's electrical architecture decides it. Most recreational sailboats under about 50 feet run 12V house systems, so 12V electric winches integrate directly with standard battery banks. Larger yachts, or boats with dedicated 24V systems, benefit from 24V winches: they draw roughly half the amperage for the same power output, which reduces voltage drop over long cable runs and lets you use smaller wire gauge. Size 40–70 electric winches can draw well over 100 amps under full load, so wiring and battery capacity must be sized by a qualified marine electrician.
What accessories and spares should I keep aboard?
Electric winches share the same wear-and-service items as their manual counterparts, plus a few electric-specific parts. Common spares include self-tailing springs, O-rings, mounting screws, and the disconnect rod that lets the motor drive disengage for manual cranking — each sized to the specific winch series (for example, distinct disconnect-rod lengths for Size 46, 50, and 60). For anchor handling, a matched electric windlass complements a powered deck, keeping ground tackle work as effortless as sail trim.
Frequently asked questions
What is the difference between 12V and 24V electric winches?
12V winches match the battery configuration on most recreational boats and are simpler to wire. 24V winches draw about half the amperage for the same output, reducing voltage drop over long cable runs, but require a 24V bank or two 12V batteries in series.
Can I motorize my existing winch instead of buying a new one?
Yes. An electric conversion kit adds a below-deck motor and gearbox that drives your current drum, provided your winch model is conversion-compatible. It preserves your existing hardware while adding push-button operation.
How much current does an electric winch draw?
Mid-to-large electric winches can draw well over 100 amps under full load, with 12V models drawing roughly double the amperage of equivalent 24V units. Normal sheet trimming uses far less; peak draw occurs at initial acceleration and maximum load.
What is a portable electric winch handle?
A portable electric handle such as the WinchRite is a cordless, drill-style unit that drops into the top of a standard winch. It adds electric assist with no wiring or deck reinforcement, though its battery limits continuous duty compared with a hard-wired winch.
Do electric winches still work if power fails?
Yes. Electric winches retain a self-tailing drum and standard handle socket, so you can disengage the motor drive with the disconnect rod and crank manually if power is lost.
What does the winch "size" number mean?
The size number reflects the winch's power ratio and drum diameter in each manufacturer's system. Larger numbers indicate more pulling power for bigger boats — a Size 40 suits mid-range cruisers, while Size 70 and up serve large yachts.
