To measure sailboat lifelines, first tension and mark the existing lifelines on the boat, then remove and measure each section bearing surface to bearing surface with a fiberglass or steel tape. Record the wire diameter and end-fitting part numbers for the upper and lower runs separately so each new lifeline is built to the exact installed length.
Lifeline measurement at a glance
| Step | What to do | Why it matters |
|---|---|---|
| 1. Prep on the boat | Straighten pulpits/stanchions and tension the lifelines | Sets true installed geometry before you measure |
| 2. Mark the studs | Tape and measure exposed thread on each adjuster | Lets you reset the new lifelines to the same length |
| 3. Remove & tag | Take off one section at a time and label each | Keeps upper and lower runs identified |
| 4. Measure off the boat | Bearing surface to bearing surface, record diameter | Produces the exact build length and wire size |
What do I need to measure lifelines?
You only need a few items: a fiberglass or steel measuring tape, a fixed anchor point (or a small screwdriver to hook the tape end), and a printed Lifeline Measurement Worksheet. The single most important rule is to always measure from the bearing surface of the fittings — the point where the fitting seats against the stanchion or pulpit — not from the tip of a stud or the end of the wire.
How do I prepare the lifelines on the boat before removing them?
Lifelines are measured off the boat, but they must be set up correctly on the boat first. Confirm your pulpits and stanchions are straight — replace or repair any that are bent so your supports and anchor points are in their true positions. Then tension the lifelines evenly over the full system length on both port and starboard.
A good tension check: take the longest unsupported span, apply about 10 pounds of force at the midpoint, and the wire should deflect no more than 2 inches. Tighter is better, as long as you are not straining a stanchion inboard or making the gate eyes hard to operate.
How do I remove and tag each section?

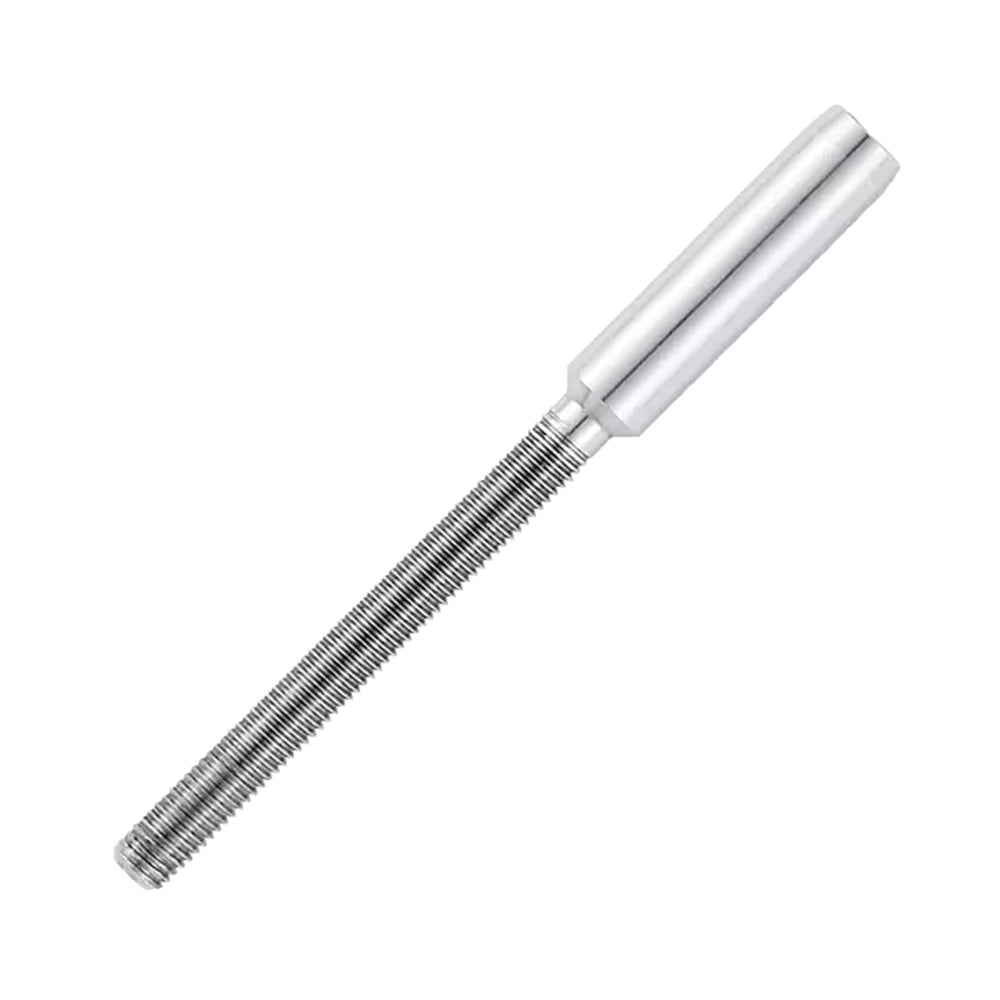

Before removing anything, mark each threaded stud against its fitting housing with tape, or measure the exposed thread with calipers — this records the exact adjuster setting. Then remove the lifelines one piece at a time by backing off the adjusters and pushing the wire out of the stanchions. Tag every piece as it comes off (never use masking tape — it peels off as you roll and unroll the wire), put the adjusters back on each section immediately, and roll each run for measuring.
How do I record the measurements?
Print the measuring worksheet, then set the adjusters back to their marked or measured length and lock them with the set nut or pins. Record the wire diameter for the upper and lower sections separately, and measure each length bearing surface to bearing surface onto the sheet. For every section, note the part number of the end fittings by writing the number next to the fitting illustration you plan to use.
Frequently asked questions
Where exactly do I measure a lifeline from?
Always measure bearing surface to bearing surface — the seating faces of the end fittings — not from the stud tip or wire end. This gives the true installed length.
How tight should my lifelines be?
Apply about 10 pounds of force at the midpoint of the longest unsupported span; the wire should deflect no more than 2 inches. Tighter is better as long as it does not strain a stanchion or bind the gate eyes.
Do I measure the upper and lower lifelines separately?
Yes. Record the wire diameter and length for the upper and lower runs individually, since they can differ in size and length.
Why should I mark the studs before removing the lifelines?
Marking or measuring the exposed thread records the exact adjuster setting so you can rebuild the new lifelines to the same length when you reassemble.
What kind of tape should I use to tag the sections?
Use a durable tag, not masking tape — masking tape rips off as you roll and unroll the wires, and you can lose track of which section is which.
