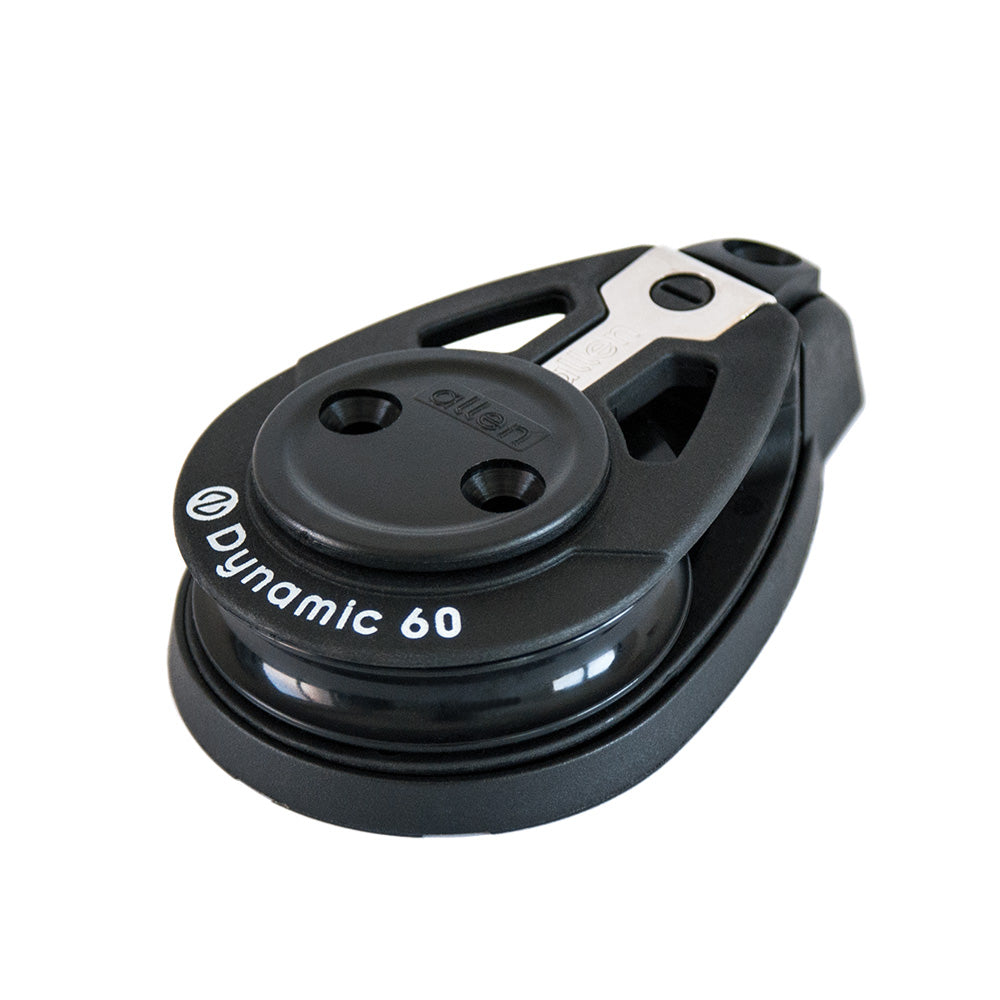

Allen 60 mm Dynamic Block with Cheek Adapter
SKU:
ALL-A2060C
|
Manuf. Code:
A2060C
Unit price
/
Unavailable
Allen 60 mm Dynamic Block with Cheek Adapter is backordered and will ship as soon as it is back in stock.
This product ships from the UK.
Description
Description
60mm Dynamic Single Cheek Block.
The A2060C is a high performing ball bearing block, designed to eliminate friction and allow rope to run at great speeds.
Ideal for use on Keelboats and Catamarans as a turning or leading block for most systems.
Our Part # ALL-A2060C | Allen Part # A2060C
Features
Features
Features:
- Cheek Mouting:Â The A2060C comes with a cheek adaptor to allow mounting of our A2050 block to a flat surface. The adaptor allows for three fixings to be used to ensure a strong and reliable fitting to any surface. The chamfered shape of the cheek adaptor limits the chances of snagging.
- Bearings:Â Dynamic Blocks feature our patented bearing system which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems available on the market.
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Breaking load | 2205.00 lbs. | 1000.00 kg. |
Length | 4 2/3 in. | 118.00 mm. |
Maximum line diameter | 1/2 in. | 12.00 mm. |
Maximum working load | 1102.50 lbs. | 500.00 kg. |
Weight | 5.26 oz. | 149.00 g. |
Shackle pin | 1/5 in. | 5.00 mm. |
Fixing hole centres | 2 1/3 in. | 60.00 mm. |
