Description
Description

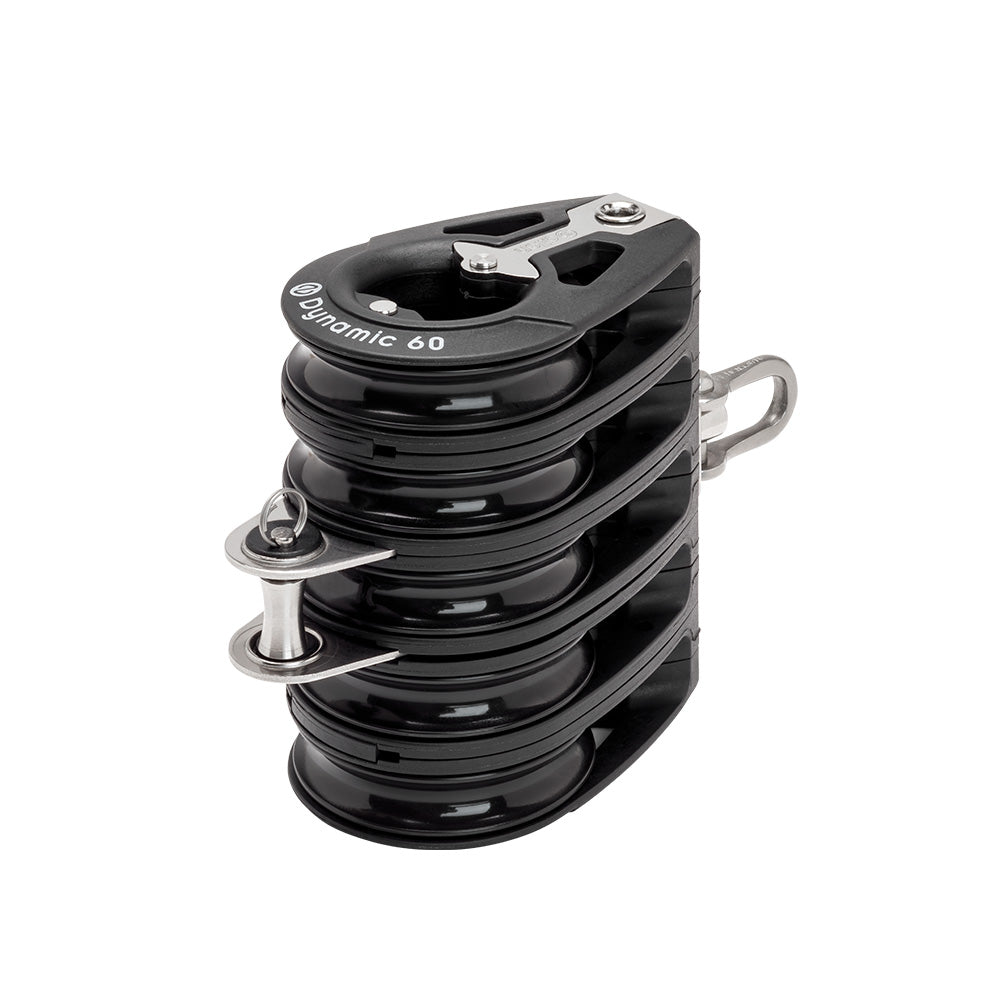

60mm Quint Dynamic Block With Becket.
Designed for use as a low friction mainsheet system on sports catamarans, but suitable for many other applications including backstay tensioning on keelboats.
Our Part # ALL-A2069B | Mfr. Part # A2069B
Features
Features
- Bearings:Â Dynamic Blocks feature our patented bearing system which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems available on the market.
- Swivel Lock:Â The A2069 comes with a removable swivel lock moulding. When installed, the shackle can be locked in 90-degree orientations. When removed, the attachment shackle can spin freely.
- Becket:Â A large central hole not only reduces the overall weight of the block but also offers a rope friendly attachment point.
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Breaking load | 2756.25 lbs. | 1250.0 kg |
Length | 6.0 in | 15.0 cm |
Maximum line diameter | 1/2 in | 12.0 mm |
Maximum working load | 1323.0 lbs. | 600.0 kg |
Weight | 19.58 oz | 555.0 g |
Shackle pin | 1/6 in | 6.0 mm |
