Description
Description

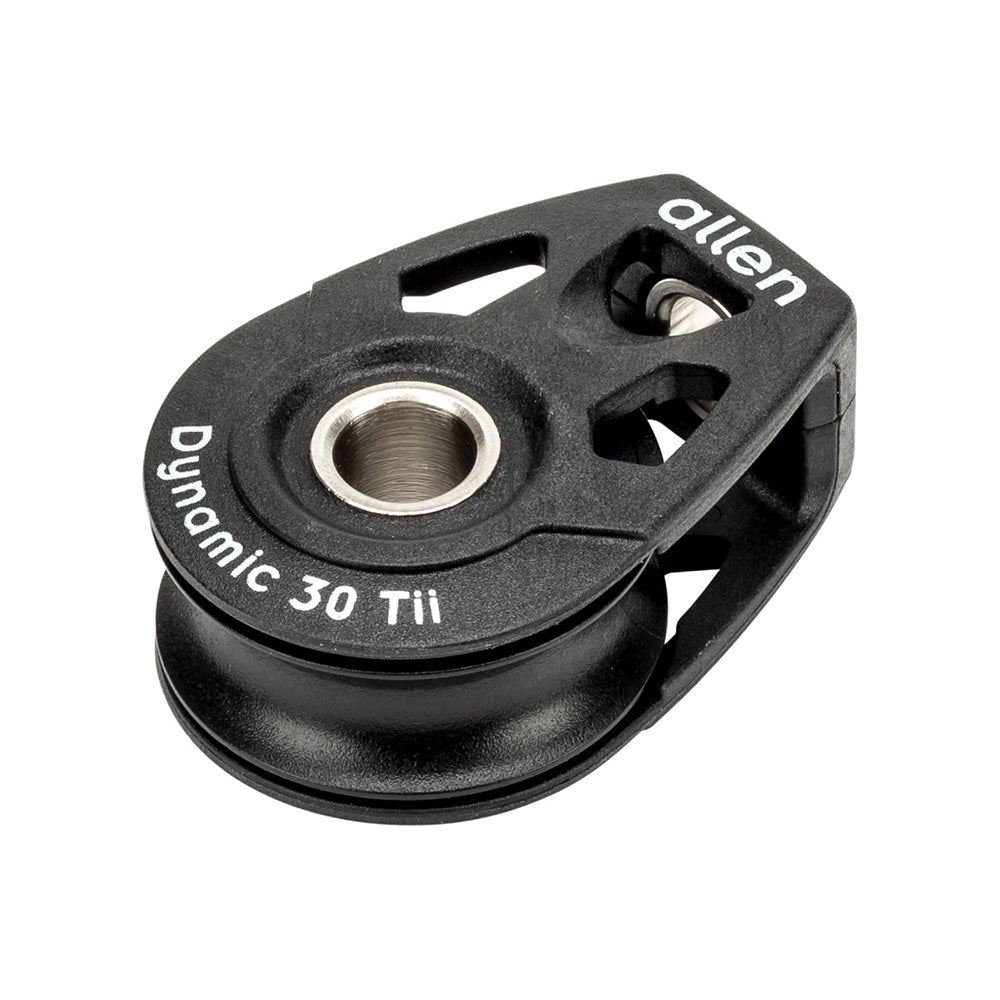

30mm Single Tii-On Block.
Our Tii-On blocks feature a stainless-steel loop at the head of the block. This gives our Tii-On range maximum strength and reliability with minimal cheek separation when tied on and loaded up with a soft shackle. The stainless-steel head loop also ensures the block stays in the right orientation when being used.
When attaching a Tii-on block you must feed the rope around the central axle and through the head of the block. Tii-On blocks rely on the correct attachment method to give them maximum strength.
Our Part # ALL-A2030TII | Mfr. Part # A2030Tii
Features
Features
- Swivel Hook: A built-in swivelling hook allows this block to be easily attached or removed as well as swivel to aline with pulling forces that may change direction. The swivel cannot be locked.
- Bearings: Dynamic Blocks feature our patented bearing system which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems which run on a plastic rail.
- Becket: Our 20 & 30mm blocks offer a large central rivet which not only reduces the overall weight but also offers a rope friendly attachment, perfect as a tie-off point when being used in a cascade system.
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Breaking load | 1653.75 lbs. | 750.0 kg |
Length | 1 2/3 in | 42.0 mm |
Maximum line diameter | 5/16 in | 8.0 mm |
Maximum working load | 308.7 lbs. | 140.0 kg |
Weight | 0.9 oz | 24.0 g |
