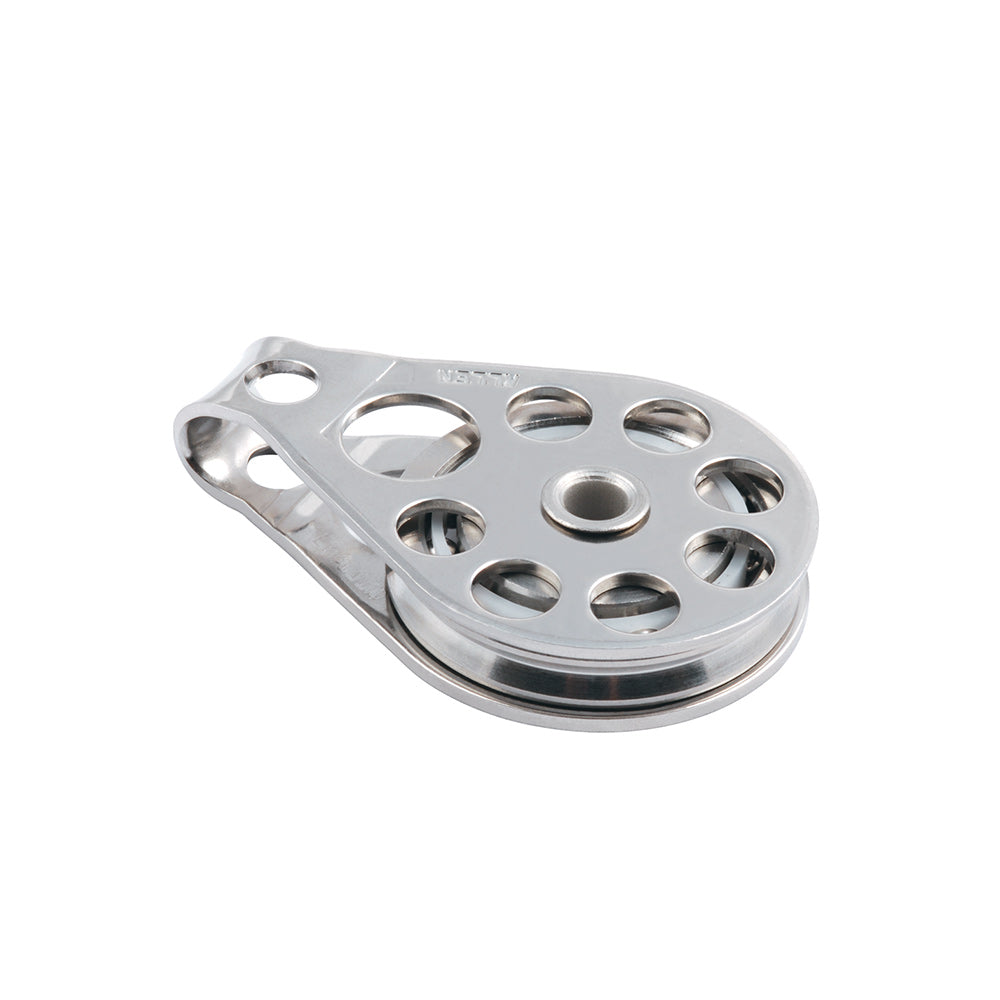

38mm Single Fixed Head Wire Block.
Specifically intended for use where wire lines are subjected to low running speeds and higher static loads.
For faster running, lower loaded control lines consider the dynamic range.
Our Part # ALL-A4196 | Mfr. Part # A4196
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Breaking load | 2205.0 lbs. | 1000.0 kg |
Length | 2 1/2 in | 62.0 mm |
Maximum line diameter | 0.08 - 1/4 in | 2.0 - 6.0 mm |
Shackle pin | 3/16 in | 5.0 mm |
Sheave diameter | 1 1/2 in | 38.0 mm |
Weight | 2.5 oz | 71.0 g |
