Description
Description

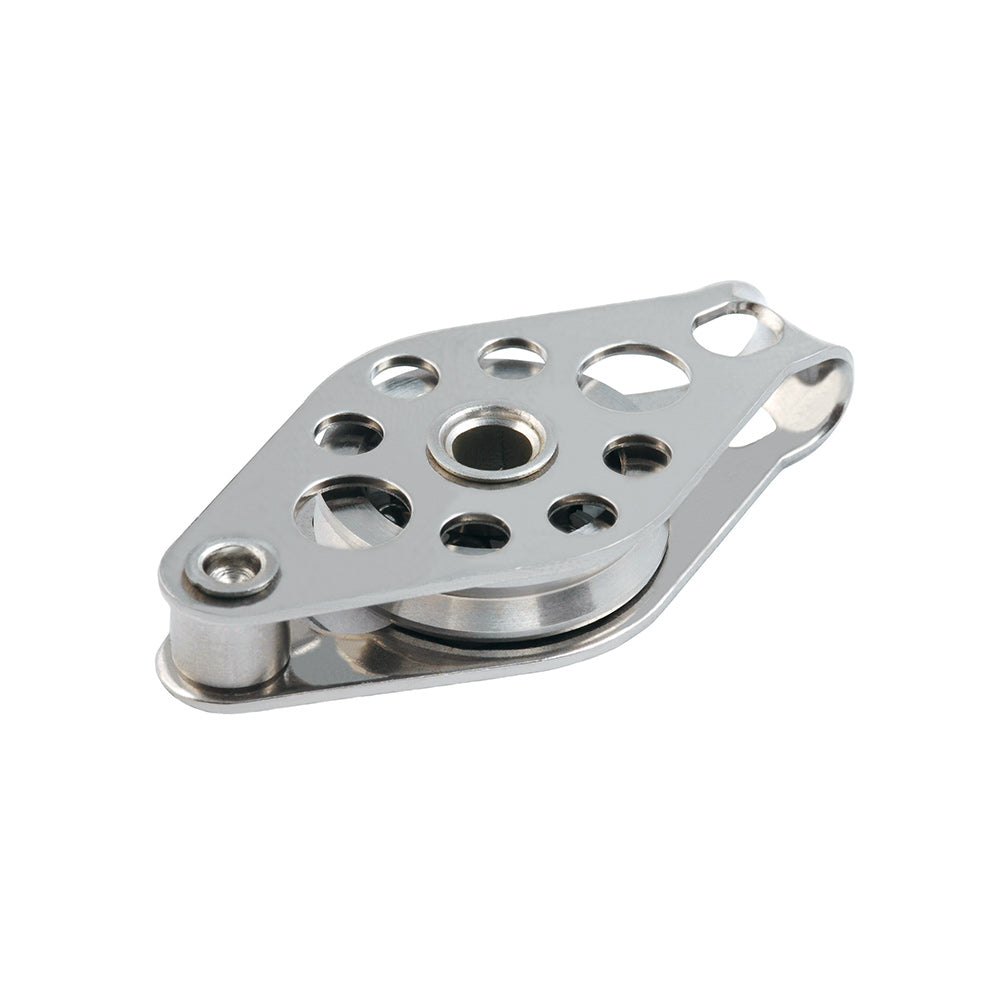

25mm Single Fixed Head Wire Block With Becket.
Specifically intended for use where wire or rope lines are subjected to low running speeds and higher static loads.
For faster running, lower loaded control lines consider the dynamic range.
Our Part # ALL-A4393 | Mfr. Part # A4393
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Breaking load | 1653.75 lbs. | 750.0 kg |
Length | 2 1/3 in | 59.0 mm |
Maximum line diameter | 0.08 - 3/16 in | 2.0 - 5.0 mm |
Shackle pin | 3/16 in | 5.0 mm |
Sheave diameter | 1.0 in | 25.0 mm |
Weight | 1.09 oz | 31.0 g |
