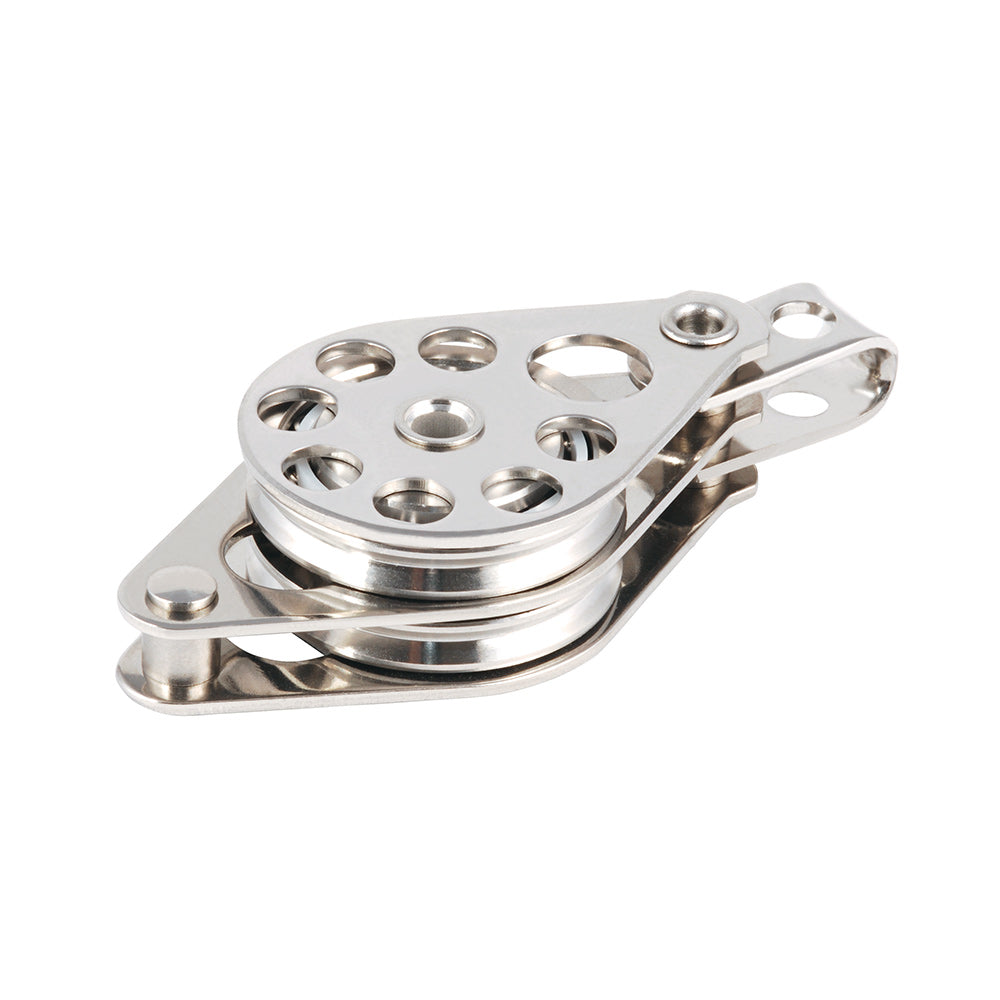

Allen 38 mm Double High Tension Block Fixed Head with Becket (A4596)
SKU:
ALL-A4596
|
Manuf. Code:
A4596
3% off
Unit price
/
Unavailable
Allen 38 mm Double High Tension Block Fixed Head with Becket (A4596) is backordered and will ship as soon as it is back in stock.
You Save $26 This Week!
Ships from United Kingdom.
Description
Description
Double Fixed Head With Becket
Our Part # ALL-A4596 | Mfr. Part # A4596
Features
Features
- Body:Â Formed in stainless steel for a lightweight yet robust frame.
- Bearings:Â A single row of spaced stainless steel ball bearings run on a stainless steel axle. This allows the width of the block to be as narrow as possible whilst still offering excellent rolling speeds and high working loads.
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Breaking load | 2205.0 lbs. | 1000.0 kg |
Length | 3 11/16 in | 93.0 mm |
Maximum line diameter | 0.08 - 1/4 in | 2.0 - 6.0 mm |
Shackle pin | 3/16 in | 5.0 mm |
Sheave diameter | 1 1/2 in | 38.0 mm |
Weight | 5.29 oz | 150.0 g |
