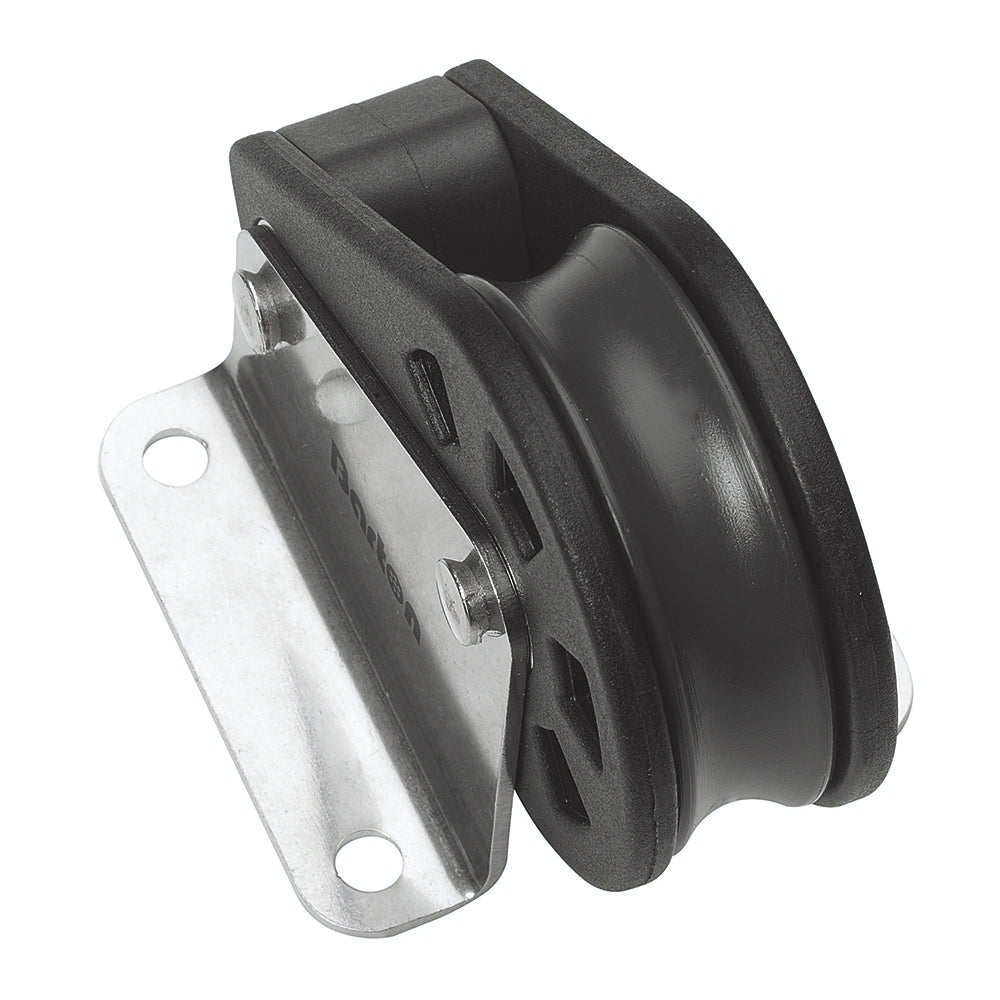

A strong, lightweight range of blocks for use on dinghies and dayboats or as lead blocks on larger craft.
Plain bearing blocks
Barton plain bearing blocks have a precision moulded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.
Ball bearing blocks
With our unique super-low friction ball race systems, featuring acetal sheaves and delrin ball bearings, running on a large diameter centre boss. This allows us to fit more load-bearing balls, which ensure extremely low friction performance, even under high loads.
Our Part # BAM-N01-150 | Mfr. Part # N01 150
Technical Information
Technical Information
| Description | Imperial | Metric |
|---|---|---|
| Sheave size | 1 3/16 x 15/32 in | 30.0 x 12.0 mm |
| Max Rope diameter | 5/16 in | 8.0 mm |
| Safe working load | 782.0 lb | 355.0 kg |
| Break Load | 1565.0 lb | 710.0 kg |
| Max rolling load | 540.0 lb | 245.0 kg |
| Length | 2 1/16 in | 53.0 mm |
| Weight Plain | 2.3 oz | 64.0 g |
| Weight Ball | 2.2 oz | 62.0 g |
