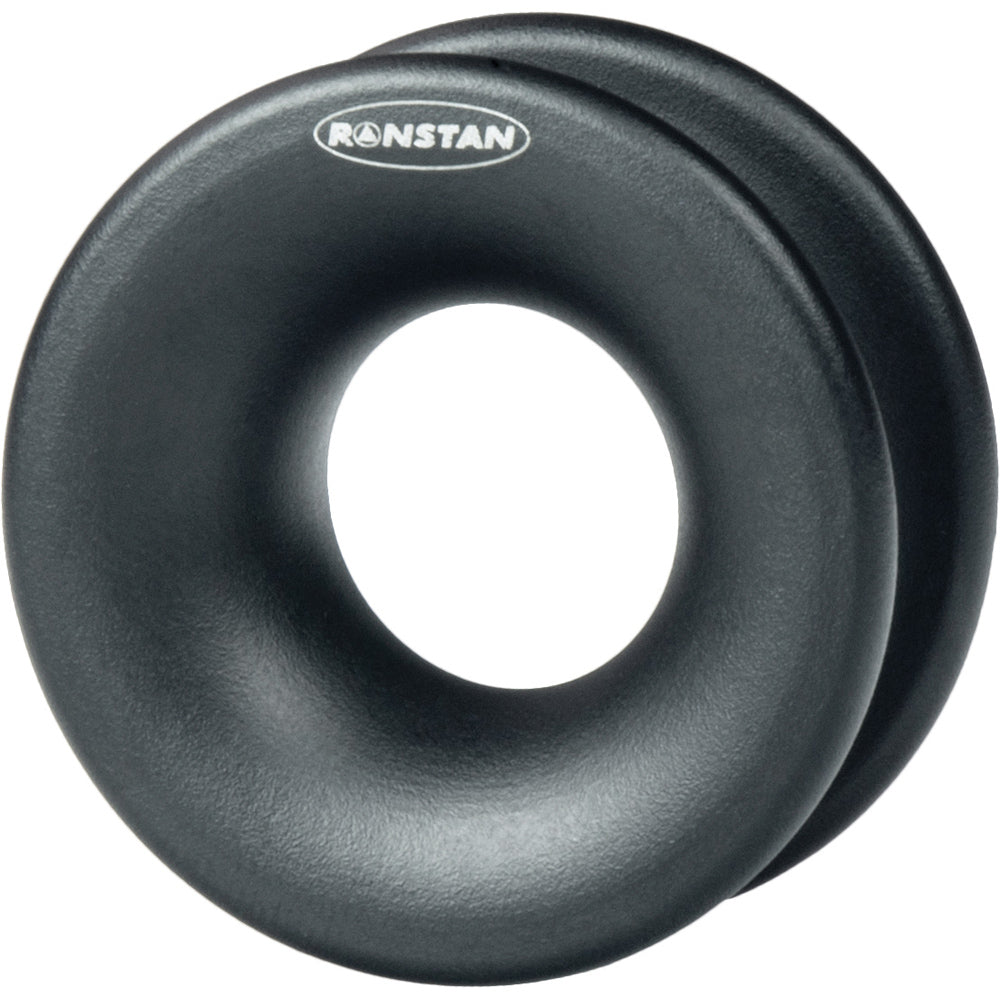

Ronstan Low Friction Ring - 16mm Hole (RF8090-16)

Name: Ronstan Low Friction Ring - 16mm Hole (RF8090-16)
Brand: Ronstan
SKU: RON-RF8090-16
Price: 25.39 USD
Availability: InStock

SKU: RON-RF8090-16 | Manuf. Code: RF8090-16

~~List Price: $27.94 USD~~

$25.39 USD

Worldwide Shipping Avalailable

SIMPLE returns & exchanges

PRICE MATCH guarantee

Knowledgeable STAFF

Description

Ronstan Low Friction rings can be used as a lightweight alternative to a block in some applications. They are best suited for systems requiring relatively small line deflection angles, or for high static loads.

The design achieves a nicely rounded internal profile for smooth control line trim under load, and a deep external groove to retain the rope securely within the large shoulders when spliced into a loop.

Our Part # RON-RF8090-16 | Ronstan Part # RF8090-16

Features

Features:

Compact & lightweight
Low friction
Large shoulder secure allowing for rope lashing
Durable
Simple & reliable design
Low maintenance

Technical Information

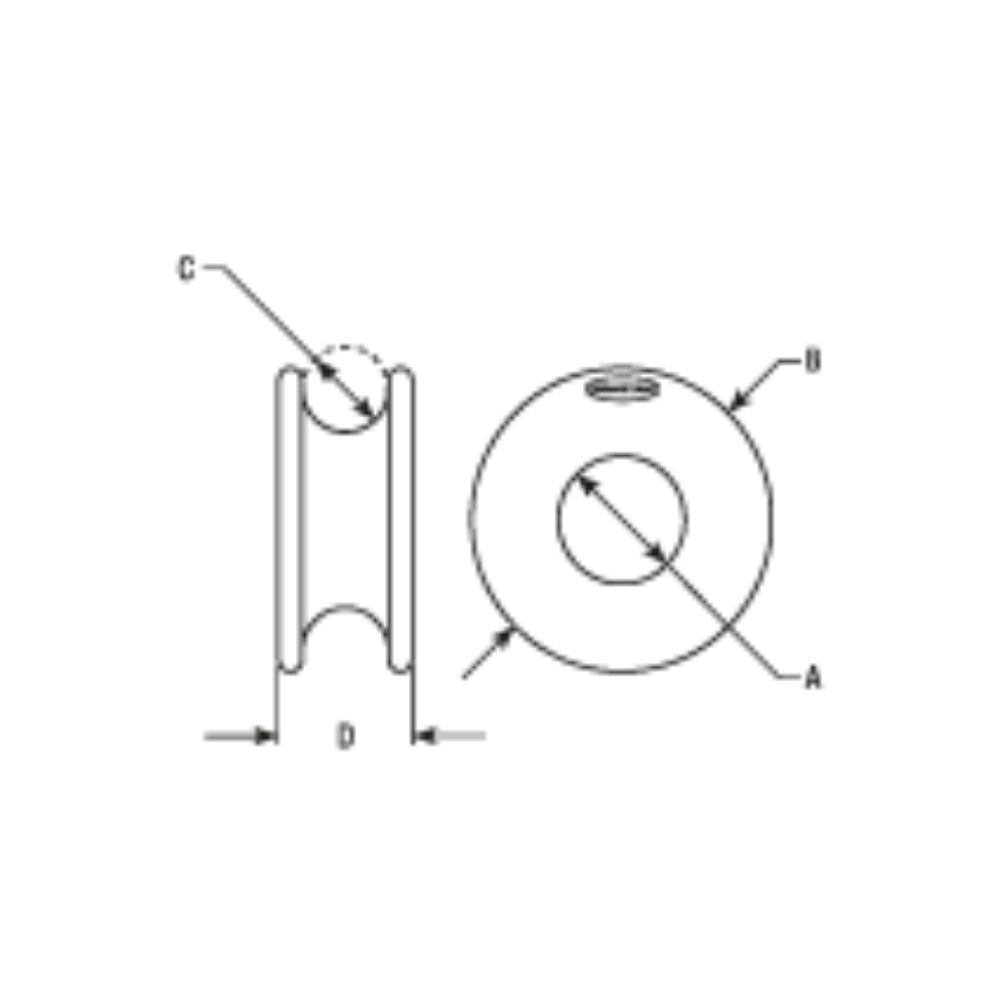

Description	Imperial	Metric
A	5/8 in.	16.00 mm.
B	1 1/2 in.	38.00 mm.
C	3/7 in.	11.00 mm.
D	2/3 in.	17.00 mm.
Maximum Working Load	7717.50 lb.	3500.00 kg.
Weight	0.60 oz.	17.00 gr.
