MirageMasthead Sloop1972

Mirage 24 Parts

Lines here are cut for this rig

Rig
Masthead Sloop
I
28 ft
J
9 ft
P
23.3 ft
E
8.3 ft
Full specifications
Different version? Compare 14 related rigs
ModelIJPE
Mirage 24 this page28923.38.3
Mirage 24 SM26.5922.88.3
Mirage 24 TM29.5925.38.3
Mirage 25329.32710
Mirage 25 IB329.32710
Mirage 2633.61128.59
Mirage 26 IB33.61128.59
Mirage 26 (Perry)33.61128.59
Mirage 27-135.811.829.910.6
Mirage 27-233.61128.59
Mirage 27 (Perry)33.61128.59
Mirage 27 (Schmidt)35.811.829.910.6
Mirage 28 FR3511.33310
Mirage 28 (Kelley)3511.252910
Mirage 28 MH3511.32910

Feet, from MAURIPRO Sailboat Data. If your mast or boom differs from every row, send us your measurements before ordering.

Line type
Grade
Compare grades

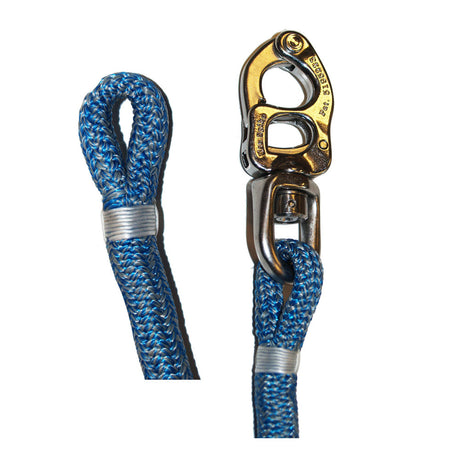

Halyards 12

  • Cruising

    Mainsail Halyard

    Diameter
    8 mm (5/16 in)
    Length
    57 ft (17.4 m)
    Hardware
    Shackle
    List Price:  $215.11 USD
    $159.00 USD

    Available to order · 5 options

  • Performance Cruise

    Mainsail Halyard

    Diameter
    8 mm (5/16 in)
    Length
    57 ft (17.4 m)
    Hardware
    Shackle
    List Price:  $513.40 USD
    $381.00 USD

    Available to order · 4 options

  • Club Racing

    Mainsail Halyard

    Diameter
    8 mm (5/16 in)
    Length
    60 ft (18.3 m)
    Hardware
    Shackle
    List Price:  $601.48 USD
    $446.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Mainsail Halyard

    Diameter
    6 mm (1/4 in)
    Length
    57 ft (17.4 m)
    Hardware
    Shackle
    List Price:  $535.13 USD
    $397.00 USD

    Available to order · 10 options

  • Cruising

    Genoa Halyard

    Diameter
    8 mm (5/16 in)
    Length
    63 ft (19.2 m)
    Hardware
    Shackle
    List Price:  $252.58 USD
    $187.00 USD

    Available to order · 5 options

  • Performance Cruise

    Genoa Halyard

    Diameter
    8 mm (5/16 in)
    Length
    63 ft (19.2 m)
    Hardware
    Shackle
    List Price:  $300.91 USD
    $223.00 USD

    Available to order · 4 options

  • Club Racing

    Genoa Halyard

    Diameter
    8 mm (5/16 in)
    Length
    63 ft (19.2 m)
    Hardware
    Shackle
    List Price:  $774.18 USD
    $574.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Genoa Halyard

    Diameter
    6 mm (1/4 in)
    Length
    63 ft (19.2 m)
    Hardware
    Shackle
    List Price:  $713.60 USD
    $529.00 USD

    Available to order · 10 options

  • Cruising

    Spinnaker Halyard

    Diameter
    8 mm (5/16 in)
    Length
    66 ft (20.1 m)
    Hardware
    Shackle
    List Price:  $255.88 USD
    $189.00 USD

    Available to order · 5 options

  • Performance Cruise

    Spinnaker Halyard

    Diameter
    8 mm (5/16 in)
    Length
    66 ft (20.1 m)
    Hardware
    Shackle
    List Price:  $309.73 USD
    $229.00 USD

    Available to order · 4 options

  • Club Racing

    Spinnaker Halyard

    Diameter
    6 mm (1/4 in)
    Length
    66 ft (20.1 m)
    Hardware
    Shackle
    List Price:  $301.56 USD
    $223.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Spinnaker Halyard

    Diameter
    6 mm (1/4 in)
    Length
    66 ft (20.1 m)
    Hardware
    Shackle
    List Price:  $719.79 USD
    $534.00 USD

    Available to order · 10 options

  • View moreAll Mirage 24 halyards & sheets

Made up to the lengths computed from the Mirage 24's rig dimensions above. Colour and taper are chosen when you add to cart.

Sheets & guys 12

  • Cruising

    Genoa Sheet

    Diameter
    10 mm (3/8 in)
    Length
    38 ft (116 m)
    Hardware
    None listed
    $61.05 USD

    Available to order · 5 options

  • Performance Cruise

    Genoa Sheet

    Diameter
    8 mm (5/16 in)
    Length
    36 ft (11.0 m)
    Hardware
    Soft shackle
    List Price:  $162.93 USD
    $120.00 USD

    Available to order · 4 options

  • Club Racing

    Genoa Sheet

    Diameter
    8 mm (5/16 in)
    Length
    36 ft (11.0 m)
    Hardware
    Soft shackle
    List Price:  $182.57 USD
    $135.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Genoa Sheet

    Diameter
    8 mm (5/16 in)
    Length
    36 ft (11.0 m)
    Hardware
    Soft shackle
    List Price:  $248.73 USD
    $184.00 USD

    Available to order · 8 options

  • Cruising

    Asymmetrical Spinnaker Sheet

    Diameter
    8 mm (5/16 in)
    Length
    48 ft (14.6 m)
    Hardware
    Shackle
    List Price:  $224.13 USD
    $166.00 USD

    Available to order · 5 options

  • Performance Cruise

    Asymmetrical Spinnaker Sheet

    Diameter
    8 mm (5/16 in)
    Length
    48 ft (14.6 m)
    Hardware
    Shackle
    List Price:  $652.43 USD
    $484.00 USD

    Available to order · 4 options

  • Club Racing

    Asymmetrical Spinnaker Sheet

    Diameter
    8 mm (5/16 in)
    Length
    48 ft (146 m)
    Hardware
    None listed
    List Price:  $222.83 USD
    $165.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Asymmetrical Spinnaker Sheet

    Diameter
    8 mm (5/16 in)
    Length
    48 ft (146 m)
    Hardware
    None listed
    List Price:  $310.12 USD
    $230.00 USD

    Available to order · 8 options

  • Cruising

    Symmetrical Spinnaker Sheet

    Diameter
    8 mm (5/16 in)
    Length
    48 ft (14.6 m)
    Hardware
    Shackle
    List Price:  $224.13 USD
    $166.00 USD

    Available to order · 5 options

  • Performance Cruise

    Symmetrical Spinnaker Sheet

    Diameter
    8 mm (5/16 in)
    Length
    48 ft (14.6 m)
    Hardware
    Shackle
    List Price:  $263.78 USD
    $195.00 USD

    Available to order · 4 options

  • Club Racing

    Symmetrical Spinnaker Sheet

    Diameter
    8 mm (5/16 in)
    Length
    48 ft (14.6 m)
    Hardware
    Shackle
    List Price:  $729.22 USD
    $541.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Symmetrical Spinnaker Sheet

    Diameter
    8 mm (5/16 in)
    Length
    48 ft (14.6 m)
    Hardware
    Shackle
    List Price:  $816.51 USD
    $606.00 USD

    Available to order · 8 options

  • View moreAll Mirage 24 halyards & sheets

Made up to the lengths computed from the Mirage 24's rig dimensions above. Colour and taper are chosen when you add to cart.

Compare grades

GradeRope, as described on each productColoursTapered optionFromFilter
Cruising6 lines Cruiser XTS Polyester Double Braid Up to 5 No $61.05
Performance Cruise6 lines DX Performance SK38 with polyester cover Up to 4 No $120.00
Club Racing6 lines S Cup (Stirotec with polyester cover) Up to 7 Yes $135.00
Grand Prix Racing6 lines DX Cup Dyneema SK78 core with polyester coverTN Racing - Stirotex core / Technora Polyester cover Up to 5 Yes $184.00

Rope names are quoted from each product's own description; prices are the lowest option for the Mirage 24. Not sure which grade suits your sailing? Ask us.

Winches 2

Blocks 5

  • Harken Block

    Carbo 57mm Single

    Fiddle

    Sized for this boat · Mainsheet block A (4:1 fiddle)

    $68.95 USD

    Available to order

  • Harken Block

    Carbo 57mm Single

    Ratchet Fiddle - 150 Cam-Matic / Becket

    Sized for this boat · Mainsheet block B (4:1 fiddle)

    List Price:  $251.30 USD
    $220.95 USD

    Available to order

  • Schaefer

    Schaefer Stand up Spring Loaded

    Lined Slide - Aluminum - For: 1.0 in (25.0 mm) T-Track

    Sized for this boat · Genoa lead block

    $261.00 USD

    Available to order

  • Harken Block

    Carbo 40mm Single

    Fiddle

    Sized for this boat · Boom vang fiddle block (4:1)

    $53.95 USD

    Available to order

  • Harken Block

    Carbo 40mm Single

    Fiddle - 471 Carbo-Cam / Becket

    Sized for this boat · Boom vang fiddle block with cam (4:1)

    $149.95 USD

    Available to order

  • View moreAll blocks

Traveler & genoa cars 5

  • Harken

    Harken Traveler Car 7/8 in (22.0 mm)

    Stand-Up Toggle

    Sized for this boat · Traveler car (Standard 3:1)

    List Price:  $263.05 USD
    $231.95 USD

    Available to order

  • Harken Block

    Carbo 29mm Single

    Fixed Head

    Sized for this boat · Traveler control block

    $17.95 USD

    Available to order

  • Harken End Controls

    For Travelers: 7/8 in (22.0 mm)

    Double Sheave and Cam Cleat (Pair)

    Sized for this boat · Traveler end controls

    List Price:  $507.30 USD
    $446.95 USD

    Available to order

  • Harken

    Harken Slider Car 7/8 in (22.0 mm)

    Pinstop

    Sized for this boat · Genoa lead car (pinstop slider)

    List Price:  $252.25 USD
    $221.95 USD

    Available to order

  • Harken Block

    Cruising ESP Aluminum 40mm Single

    Teardrop Footblock

    Sized for this boat · Genoa sheet footblock

    $75.66 USD

    Available to order

  • View moreAll travelers, tracks & genoa cars

Tracks are sold by length and are not included. Ask us for the track to suit your boat.

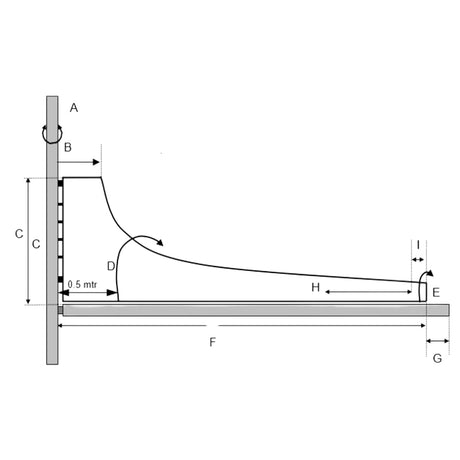

Mainsail covers 3

Parts marked "Sized for this boat" are chosen from the manufacturers' sizing guides (Harken, Forespar, Schaefer) using this boat's published dimensions. Check your boat's equipment before ordering.

Specifications

BuilderMirage
DesignerCuthbertson & Cassian
Years built1972
RigMasthead Sloop
HullFin w/transom hung rudder
ConstructionFG
Length overall23.8 ft 7.3 m
Waterline length20.1 ft 6.1 m
Beam8.4 ft 2.56 m
Displacement3,700 lb 1,678 kg
Ballast1,500 lb 680 kg
I · foretriangle height28 ft 8.53 m
J · foretriangle base9 ft 2.74 m
P · mainsail luff23.3 ft 7.1 m
E · mainsail foot8.3 ft 2.53 m
Forestay length9 ft 2.7 m
100% jib area126 sq ft 11.7 m²
Mainsail area104.4 sq ft 9.7 m²
Jib + mainsail area230.4 sq ft 21.4 m²
Cruising spinnaker area214.2 sq ft 20 m²

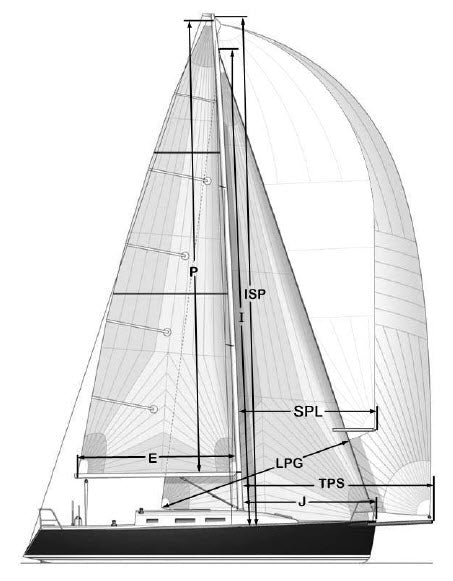

I 28.0 J 9.0 E 8.3 P 23.3
Sail plan drawn to scale from the rig dimensions above, in feet. Hull and keel are schematic.

Source: MAURIPRO Sailboat Data, updated 2026-07-01. Always confirm against your own boat.

More for the Mirage 24

Other Mirage models

Questions

What Mirage 24 parts does MAURIPRO carry?

The Mirage 24 page lists halyards and sheets made up to this boat's rig lengths, mainsail covers, sails, winches, blocks, travelers, genoa cars, boom vangs and spinnaker poles sized with manufacturer guides where the boat size allows. Prices and availability shown are live from our catalogue.

How do I know a part fits my Mirage 24?

Halyards and sheets are made up to lengths computed from the Mirage 24's published rig dimensions (I, J, P, E). Other parts are matched with manufacturer sizing guides and are labelled as sized for this boat. Fit can still depend on your boat's year, builder and rig, so check the product details or ask our technical team before you order.

Where can I find the Mirage 24 rig dimensions?

Our Mirage 24 Sailboat Data page lists the rig dimensions (I, J, P, E) and other published data we hold for this boat. Figures come from a sailboat database and may differ from your boat as built.
