MorganMasthead Sloop1968-1971

Morgan 22 Parts

Lines here are cut for this rig

Rig
Masthead Sloop
I
27 ft
J
8.5 ft
P
23.5 ft
E
10.5 ft
Full specifications
Different version? Compare 14 related rigs
ModelIJPE
Morgan 22 this page278.523.510.5
Morgan 24/25319.752711.5
Morgan 24/25 IB319.82711.5
Morgan 273711.753110
Morgan 27 IB3711.83110
Morgan 27 IB M3711.83110
Morgan 27 OB3711.83110
Morgan 27 OB M3711.83110
Morgan 2836.671131.512.67
Morgan 28 O/I35.510.53012
Morgan Out Island 2835.510.53012
Morgan 30391233.8313.75
Morgan 30-1/300391233.813.8
Morgan 30-24313.673811
Morgan 30 Classic391233.813.8

Feet, from MAURIPRO Sailboat Data. If your mast or boom differs from every row, send us your measurements before ordering.

Line type
Grade
Compare grades

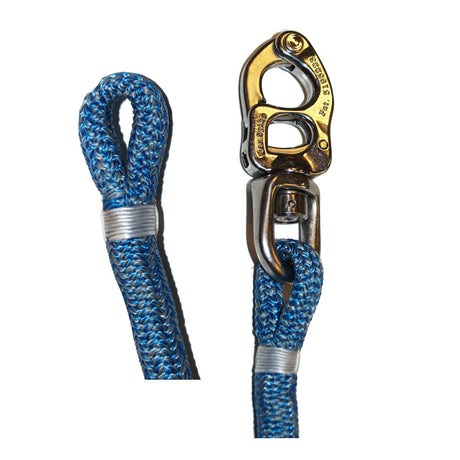

Halyards 9

  • Cruising

    Mainsail Halyard

    Diameter
    8 mm (5/16 in)
    Length
    57 ft (17.4 m)
    Hardware
    Shackle
    List Price:  $215.11 USD
    $159.00 USD

    Available to order · 5 options

  • Club Racing

    Mainsail Halyard

    Diameter
    6 mm (1/4 in)
    Length
    57 ft (17.4 m)
    Hardware
    Shackle
    List Price:  $222.72 USD
    $165.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Mainsail Halyard

    Diameter
    6 mm (1/4 in)
    Length
    57 ft (17.4 m)
    Hardware
    Shackle
    List Price:  $535.13 USD
    $397.00 USD

    Available to order · 10 options

  • Cruising

    Genoa Halyard

    Diameter
    8 mm (5/16 in)
    Length
    63 ft (19.2 m)
    Hardware
    Shackle
    List Price:  $252.58 USD
    $187.00 USD

    Available to order · 5 options

  • Club Racing

    Genoa Halyard

    Diameter
    6 mm (1/4 in)
    Length
    63 ft (19.2 m)
    Hardware
    Shackle
    List Price:  $685.36 USD
    $508.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Genoa Halyard

    Diameter
    6 mm (1/4 in)
    Length
    63 ft (19.2 m)
    Hardware
    Shackle
    List Price:  $713.60 USD
    $529.00 USD

    Available to order · 10 options

  • Cruising

    Spinnaker Halyard

    Diameter
    6 mm (1/4 in)
    Length
    66 ft (20.1 m)
    Hardware
    Shackle
    List Price:  $233.28 USD
    $173.00 USD

    Available to order · 5 options

  • Club Racing

    Spinnaker Halyard

    Diameter
    6 mm (1/4 in)
    Length
    66 ft (20.1 m)
    Hardware
    Shackle
    List Price:  $301.56 USD
    $223.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Spinnaker Halyard

    Diameter
    6 mm (1/4 in)
    Length
    66 ft (20.1 m)
    Hardware
    Shackle
    List Price:  $719.79 USD
    $534.00 USD

    Available to order · 10 options

  • View moreAll Morgan 22 halyards & sheets

Made up to the lengths computed from the Morgan 22's rig dimensions above. Colour and taper are chosen when you add to cart.

Sheets & guys 12

  • Cruising

    Genoa Sheet

    Diameter
    8 mm (5/16 in)
    Length
    33 ft (101 m)
    Hardware
    None listed
    $46.02 USD

    Available to order · 5 options

  • Performance Cruise

    Genoa Sheet

    Diameter
    8 mm (5/16 in)
    Length
    33 ft (10.1 m)
    Hardware
    Soft shackle
    List Price:  $157.91 USD
    $117.00 USD

    Available to order · 4 options

  • Club Racing

    Genoa Sheet

    Diameter
    8 mm (5/16 in)
    Length
    33 ft (10.1 m)
    Hardware
    Soft shackle
    List Price:  $175.97 USD
    $130.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Genoa Sheet

    Diameter
    8 mm (5/16 in)
    Length
    33 ft (10.1 m)
    Hardware
    Soft shackle
    List Price:  $236.85 USD
    $175.00 USD

    Available to order · 8 options

  • Cruising

    Asymmetrical Spinnaker Sheet

    Diameter
    8 mm (5/16 in)
    Length
    43 ft (13.1 m)
    Hardware
    Shackle
    List Price:  $218.63 USD
    $162.00 USD

    Available to order · 5 options

  • Performance Cruise

    Asymmetrical Spinnaker Sheet

    Diameter
    8 mm (5/16 in)
    Length
    43 ft (13.1 m)
    Hardware
    Shackle
    List Price:  $644.05 USD
    $478.00 USD

    Available to order · 4 options

  • Club Racing

    Asymmetrical Spinnaker Sheet

    Diameter
    8 mm (5/16 in)
    Length
    43 ft (131 m)
    Hardware
    None listed
    List Price:  $211.83 USD
    $157.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Asymmetrical Spinnaker Sheet

    Diameter
    8 mm (5/16 in)
    Length
    43 ft (131 m)
    Hardware
    None listed
    List Price:  $290.31 USD
    $215.00 USD

    Available to order · 8 options

  • Cruising

    Symmetrical Spinnaker Sheet

    Diameter
    8 mm (5/16 in)
    Length
    43 ft (13.1 m)
    Hardware
    Shackle
    List Price:  $218.63 USD
    $162.00 USD

    Available to order · 5 options

  • Performance Cruise

    Symmetrical Spinnaker Sheet

    Diameter
    8 mm (5/16 in)
    Length
    43 ft (13.1 m)
    Hardware
    Shackle
    List Price:  $255.40 USD
    $189.00 USD

    Available to order · 4 options

  • Club Racing

    Symmetrical Spinnaker Sheet

    Diameter
    8 mm (5/16 in)
    Length
    43 ft (13.1 m)
    Hardware
    Shackle
    List Price:  $718.22 USD
    $533.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Symmetrical Spinnaker Sheet

    Diameter
    8 mm (5/16 in)
    Length
    43 ft (13.1 m)
    Hardware
    Shackle
    List Price:  $796.70 USD
    $591.00 USD

    Available to order · 8 options

  • View moreAll Morgan 22 halyards & sheets

Made up to the lengths computed from the Morgan 22's rig dimensions above. Colour and taper are chosen when you add to cart.

Compare grades

GradeRope, as described on each productColoursTapered optionFromFilter
Cruising6 lines Cruiser XTS Polyester Double Braid Up to 5 No $46.02
Performance Cruise3 lines DX Performance SK38 with polyester cover Up to 4 No $117.00
Club Racing6 lines S Cup (Stirotec with polyester cover) Up to 7 Yes $130.00
Grand Prix Racing6 lines DX Cup Dyneema SK78 core with polyester coverTN Racing - Stirotex core / Technora Polyester cover Up to 5 Yes $175.00

Rope names are quoted from each product's own description; prices are the lowest option for the Morgan 22. Not sure which grade suits your sailing? Ask us.

Spinnaker poles 1

Blocks 1

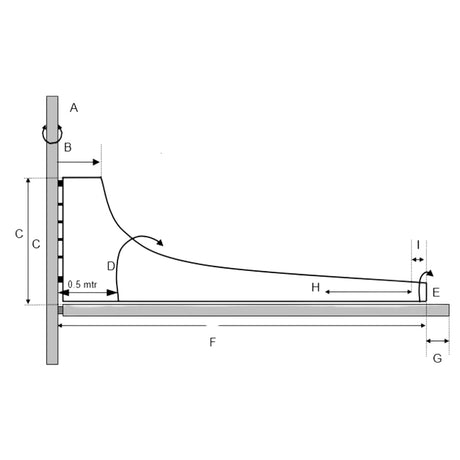

Mainsail covers 2

Parts marked "Sized for this boat" are chosen from the manufacturers' sizing guides (Harken, Forespar, Schaefer) using this boat's published dimensions. Check your boat's equipment before ordering.

Specifications

BuilderMorgan
DesignerCharles Morgan
Years built1968-1971
RigMasthead Sloop
HullKeel/Cbrd.
ConstructionFG
Length overall21.4 ft 6.5 m
Waterline length20.3 ft 6.2 m
Beam7.9 ft 2.4 m
Draft1.8 ft 0.55 m
Displacement2,700 lb 1,225 kg
Ballast1,400 lb 635 kg

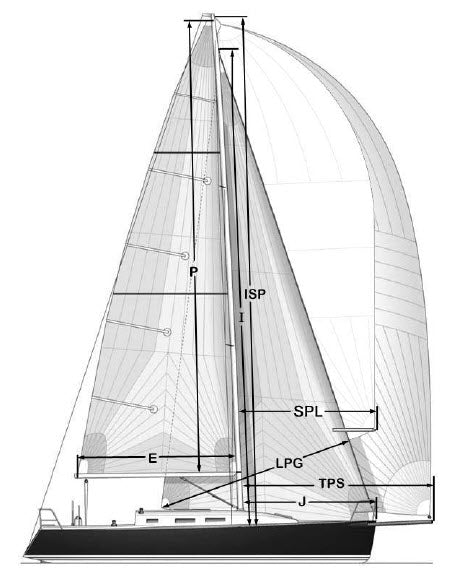

I · foretriangle height27 ft 8.23 m
J · foretriangle base8.5 ft 2.59 m
P · mainsail luff23.5 ft 7.16 m
E · mainsail foot10.5 ft 3.2 m
Forestay length8.5 ft 2.6 m
100% jib area114.8 sq ft 10.7 m²
Mainsail area133.2 sq ft 12.4 m²
Jib + mainsail area248 sq ft 23 m²
Cruising spinnaker area195.1 sq ft 18.2 m²
I 27.0 J 8.5 E 10.5 P 23.5
Sail plan drawn to scale from the rig dimensions above, in feet. Hull and keel are schematic.

Source: MAURIPRO Sailboat Data, updated 2026-07-01. Always confirm against your own boat.

More for the Morgan 22

Other Morgan models

Questions

What Morgan 22 parts does MAURIPRO carry?

The Morgan 22 page lists halyards and sheets made up to this boat's rig lengths, mainsail covers, sails, winches, blocks, travelers, genoa cars, boom vangs and spinnaker poles sized with manufacturer guides where the boat size allows. Prices and availability shown are live from our catalogue.

How do I know a part fits my Morgan 22?

Halyards and sheets are made up to lengths computed from the Morgan 22's published rig dimensions (I, J, P, E). Other parts are matched with manufacturer sizing guides and are labelled as sized for this boat. Fit can still depend on your boat's year, builder and rig, so check the product details or ask our technical team before you order.

Where can I find the Morgan 22 rig dimensions?

Our Morgan 22 Sailboat Data page lists the rig dimensions (I, J, P, E) and other published data we hold for this boat. Figures come from a sailboat database and may differ from your boat as built.
