SnapdragonMasthead Sloop1962

Snapdragon 24 Parts

Lines here are cut for this rig

Rig
Masthead Sloop
I
29.08 ft
J
8.5 ft
P
24.66 ft
E
10 ft
Full specifications
Different version? Compare 2 related rigs
ModelIJPE
Snapdragon 24 this page29.088.524.6610
Snapdragon 26309.52511.42
Snapdragon 67029.58.5259

Feet, from MAURIPRO Sailboat Data. If your mast or boom differs from every row, send us your measurements before ordering.

Line type
Grade
Compare grades

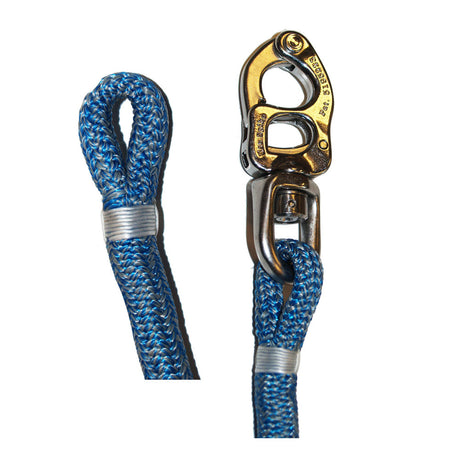

Halyards 12

  • Cruising

    Mainsail Halyard

    Diameter
    8 mm (5/16 in)
    Length
    60 ft (18.3 m)
    Hardware
    Shackle
    List Price:  $218.41 USD
    $162.00 USD

    Available to order · 5 options

  • Performance Cruise

    Mainsail Halyard

    Diameter
    8 mm (5/16 in)
    Length
    60 ft (18.3 m)
    Hardware
    Shackle
    List Price:  $518.43 USD
    $384.00 USD

    Available to order · 4 options

  • Club Racing

    Mainsail Halyard

    Diameter
    8 mm (5/16 in)
    Length
    60 ft (18.3 m)
    Hardware
    Shackle
    List Price:  $601.48 USD
    $446.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Mainsail Halyard

    Diameter
    6 mm (1/4 in)
    Length
    60 ft (18.3 m)
    Hardware
    Shackle
    List Price:  $541.31 USD
    $401.00 USD

    Available to order · 10 options

  • Cruising

    Genoa Halyard

    Diameter
    8 mm (5/16 in)
    Length
    66 ft (20.1 m)
    Hardware
    Shackle
    List Price:  $255.88 USD
    $189.00 USD

    Available to order · 5 options

  • Performance Cruise

    Genoa Halyard

    Diameter
    8 mm (5/16 in)
    Length
    66 ft (20.1 m)
    Hardware
    Shackle
    List Price:  $305.93 USD
    $227.00 USD

    Available to order · 4 options

  • Club Racing

    Genoa Halyard

    Diameter
    8 mm (5/16 in)
    Length
    66 ft (20.1 m)
    Hardware
    Shackle
    List Price:  $780.78 USD
    $579.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Genoa Halyard

    Diameter
    6 mm (1/4 in)
    Length
    66 ft (20.1 m)
    Hardware
    Shackle
    List Price:  $719.79 USD
    $534.00 USD

    Available to order · 10 options

  • Cruising

    Spinnaker Halyard

    Diameter
    8 mm (5/16 in)
    Length
    69 ft (21.0 m)
    Hardware
    Shackle
    List Price:  $259.18 USD
    $192.00 USD

    Available to order · 5 options

  • Performance Cruise

    Spinnaker Halyard

    Diameter
    8 mm (5/16 in)
    Length
    69 ft (21.0 m)
    Hardware
    Shackle
    List Price:  $314.76 USD
    $233.00 USD

    Available to order · 4 options

  • Club Racing

    Spinnaker Halyard

    Diameter
    6 mm (1/4 in)
    Length
    69 ft (21.0 m)
    Hardware
    Shackle
    List Price:  $306.44 USD
    $227.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Spinnaker Halyard

    Diameter
    6 mm (1/4 in)
    Length
    69 ft (21.0 m)
    Hardware
    Shackle
    List Price:  $725.98 USD
    $538.00 USD

    Available to order · 10 options

  • View moreAll Snapdragon 24 halyards & sheets

Made up to the lengths computed from the Snapdragon 24's rig dimensions above. Colour and taper are chosen when you add to cart.

Sheets & guys 12

  • Cruising

    Genoa Sheet

    Diameter
    10 mm (3/8 in)
    Length
    38 ft (116 m)
    Hardware
    None listed
    $61.05 USD

    Available to order · 5 options

  • Performance Cruise

    Genoa Sheet

    Diameter
    8 mm (5/16 in)
    Length
    37 ft (11.3 m)
    Hardware
    Soft shackle
    List Price:  $164.62 USD
    $122.00 USD

    Available to order · 4 options

  • Club Racing

    Genoa Sheet

    Diameter
    8 mm (5/16 in)
    Length
    37 ft (11.3 m)
    Hardware
    Soft shackle
    List Price:  $184.77 USD
    $137.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Genoa Sheet

    Diameter
    8 mm (5/16 in)
    Length
    37 ft (11.3 m)
    Hardware
    Soft shackle
    List Price:  $252.69 USD
    $187.00 USD

    Available to order · 8 options

  • Cruising

    Asymmetrical Spinnaker Sheet

    Diameter
    8 mm (5/16 in)
    Length
    49 ft (14.9 m)
    Hardware
    Shackle
    List Price:  $225.23 USD
    $167.00 USD

    Available to order · 5 options

  • Performance Cruise

    Asymmetrical Spinnaker Sheet

    Diameter
    8 mm (5/16 in)
    Length
    49 ft (14.9 m)
    Hardware
    Shackle
    List Price:  $654.12 USD
    $485.00 USD

    Available to order · 4 options

  • Club Racing

    Asymmetrical Spinnaker Sheet

    Diameter
    8 mm (5/16 in)
    Length
    49 ft (149 m)
    Hardware
    None listed
    List Price:  $225.03 USD
    $167.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Asymmetrical Spinnaker Sheet

    Diameter
    8 mm (5/16 in)
    Length
    49 ft (149 m)
    Hardware
    None listed
    List Price:  $314.07 USD
    $233.00 USD

    Available to order · 8 options

  • Cruising

    Symmetrical Spinnaker Sheet

    Diameter
    8 mm (5/16 in)
    Length
    49 ft (14.9 m)
    Hardware
    Shackle
    List Price:  $225.23 USD
    $167.00 USD

    Available to order · 5 options

  • Performance Cruise

    Symmetrical Spinnaker Sheet

    Diameter
    8 mm (5/16 in)
    Length
    49 ft (14.9 m)
    Hardware
    Shackle
    List Price:  $265.45 USD
    $197.00 USD

    Available to order · 4 options

  • Club Racing

    Symmetrical Spinnaker Sheet

    Diameter
    8 mm (5/16 in)
    Length
    49 ft (14.9 m)
    Hardware
    Shackle
    List Price:  $731.42 USD
    $543.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Symmetrical Spinnaker Sheet

    Diameter
    8 mm (5/16 in)
    Length
    49 ft (14.9 m)
    Hardware
    Shackle
    List Price:  $820.47 USD
    $609.00 USD

    Available to order · 8 options

  • View moreAll Snapdragon 24 halyards & sheets

Made up to the lengths computed from the Snapdragon 24's rig dimensions above. Colour and taper are chosen when you add to cart.

Compare grades

GradeRope, as described on each productColoursTapered optionFromFilter
Cruising6 lines Cruiser XTS Polyester Double Braid Up to 5 No $61.05
Performance Cruise6 lines DX Performance SK38 with polyester cover Up to 4 No $122.00
Club Racing6 lines S Cup (Stirotec with polyester cover) Up to 7 Yes $137.00
Grand Prix Racing6 lines DX Cup Dyneema SK78 core with polyester coverTN Racing - Stirotex core / Technora Polyester cover Up to 5 Yes $187.00

Rope names are quoted from each product's own description; prices are the lowest option for the Snapdragon 24. Not sure which grade suits your sailing? Ask us.

Winches 2

Blocks 5

  • Harken Block

    Carbo 57mm Single

    Fiddle

    Sized for this boat · Mainsheet block A (4:1 fiddle)

    $68.95 USD

    Available to order

  • Harken Block

    Carbo 57mm Single

    Ratchet Fiddle - 150 Cam-Matic / Becket

    Sized for this boat · Mainsheet block B (4:1 fiddle)

    List Price:  $251.30 USD
    $220.95 USD

    Available to order

  • Schaefer

    Schaefer Stand up Spring Loaded

    Lined Slide - Aluminum - For: 1.0 in (25.0 mm) T-Track

    Sized for this boat · Genoa lead block

    $261.00 USD

    Available to order

  • Harken Block

    Carbo 40mm Single

    Fiddle

    Sized for this boat · Boom vang fiddle block (4:1)

    $53.95 USD

    Available to order

  • Harken Block

    Carbo 40mm Single

    Fiddle - 471 Carbo-Cam / Becket

    Sized for this boat · Boom vang fiddle block with cam (4:1)

    $149.95 USD

    Available to order

  • View moreAll blocks

Traveler & genoa cars 5

  • Harken

    Harken Traveler Car 7/8 in (22.0 mm)

    Stand-Up Toggle

    Sized for this boat · Traveler car (Standard 3:1)

    List Price:  $263.05 USD
    $231.95 USD

    Available to order

  • Harken Block

    Carbo 29mm Single

    Fixed Head

    Sized for this boat · Traveler control block

    $17.95 USD

    Available to order

  • Harken End Controls

    For Travelers: 7/8 in (22.0 mm)

    Double Sheave and Cam Cleat (Pair)

    Sized for this boat · Traveler end controls

    List Price:  $507.30 USD
    $446.95 USD

    Available to order

  • Harken

    Harken Slider Car 7/8 in (22.0 mm)

    Pinstop

    Sized for this boat · Genoa lead car (pinstop slider)

    List Price:  $252.25 USD
    $221.95 USD

    Available to order

  • Harken Block

    Cruising ESP Aluminum 40mm Single

    Teardrop Footblock

    Sized for this boat · Genoa sheet footblock

    $75.66 USD

    Available to order

  • View moreAll travelers, tracks & genoa cars

Tracks are sold by length and are not included. Ask us for the track to suit your boat.

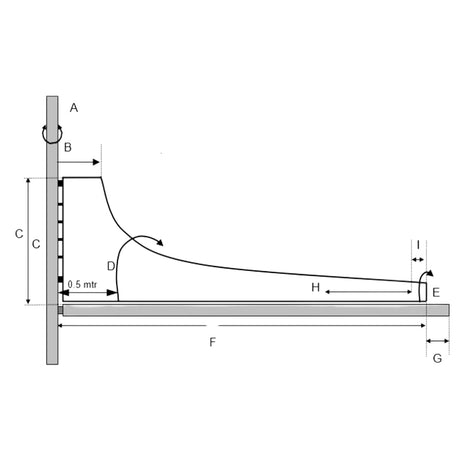

Mainsail covers 2

Parts marked "Sized for this boat" are chosen from the manufacturers' sizing guides (Harken, Forespar, Schaefer) using this boat's published dimensions. Check your boat's equipment before ordering.

Specifications

BuilderSnapdragon
DesignerThames Structural Plastics/Thames Marine
Years built1962
RigMasthead Sloop
HullTwin Keel
ConstructionFG
Length overall24.5 ft 7.5 m
Waterline length20.5 ft 6.3 m
Beam7.9 ft 2.4 m
Displacement3,850 lb 1,746 kg
Ballast1,550 lb 703 kg

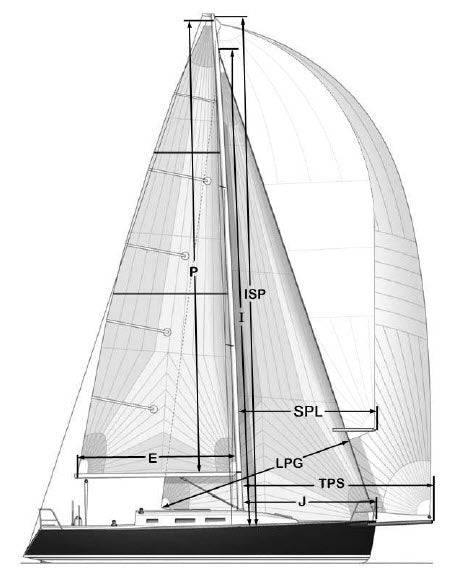

I · foretriangle height29.08 ft 8.86 m
J · foretriangle base8.5 ft 2.59 m
P · mainsail luff24.66 ft 7.52 m
E · mainsail foot10 ft 3.05 m
Forestay length8.5 ft 2.6 m
100% jib area123.6 sq ft 11.5 m²
Mainsail area133.2 sq ft 12.4 m²
Jib + mainsail area256.8 sq ft 23.9 m²
Cruising spinnaker area210.1 sq ft 19.6 m²
I 29.1 J 8.5 E 10.0 P 24.7
Sail plan drawn to scale from the rig dimensions above, in feet. Hull and keel are schematic.

Source: MAURIPRO Sailboat Data, updated 2026-07-01. Always confirm against your own boat.

More for the Snapdragon 24

Other Snapdragon models

Questions

What Snapdragon 24 parts does MAURIPRO carry?

The Snapdragon 24 page lists halyards and sheets made up to this boat's rig lengths, mainsail covers, sails, winches, blocks, travelers, genoa cars, boom vangs and spinnaker poles sized with manufacturer guides where the boat size allows. Prices and availability shown are live from our catalogue.

How do I know a part fits my Snapdragon 24?

Halyards and sheets are made up to lengths computed from the Snapdragon 24's published rig dimensions (I, J, P, E). Other parts are matched with manufacturer sizing guides and are labelled as sized for this boat. Fit can still depend on your boat's year, builder and rig, so check the product details or ask our technical team before you order.

Where can I find the Snapdragon 24 rig dimensions?

Our Snapdragon 24 Sailboat Data page lists the rig dimensions (I, J, P, E) and other published data we hold for this boat. Figures come from a sailboat database and may differ from your boat as built.
