SonataMasthead Sloop1976

Sonata 6 Parts

Lines here are cut for this rig

Rig
Masthead Sloop
I
23.6 ft
J
8.3 ft
P
19.49 ft
E
8 ft
Full specifications
Different version? Compare 6 related rigs
ModelIJPE
Sonata 6 this page23.68.319.498
Sonata 7289.8423.268.76
Sonata 825.7592811.48
Sonata Thomas24.25823.58.5
Sonata 2625.7592811.48
Sonata 6.322.688.123.268.14
Sonata 6.724.747.7427.19.48

Feet, from MAURIPRO Sailboat Data. If your mast or boom differs from every row, send us your measurements before ordering.

Line type
Grade
Compare grades

Halyards 9

  • Cruising

    Mainsail Halyard

    Diameter
    8 mm (5/16 in)
    Length
    48 ft (14.6 m)
    Hardware
    Shackle
    List Price:  $205.21 USD
    $152.00 USD

    Available to order · 5 options

  • Club Racing

    Mainsail Halyard

    Diameter
    6 mm (1/4 in)
    Length
    48 ft (14.6 m)
    Hardware
    Shackle
    List Price:  $208.12 USD
    $154.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Mainsail Halyard

    Diameter
    6 mm (1/4 in)
    Length
    48 ft (14.6 m)
    Hardware
    Shackle
    List Price:  $516.56 USD
    $383.00 USD

    Available to order · 10 options

  • Cruising

    Genoa Halyard

    Diameter
    8 mm (5/16 in)
    Length
    54 ft (16.5 m)
    Hardware
    Shackle
    List Price:  $242.68 USD
    $180.00 USD

    Available to order · 5 options

  • Club Racing

    Genoa Halyard

    Diameter
    6 mm (1/4 in)
    Length
    54 ft (16.5 m)
    Hardware
    Shackle
    List Price:  $670.75 USD
    $497.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Genoa Halyard

    Diameter
    6 mm (1/4 in)
    Length
    54 ft (16.5 m)
    Hardware
    Shackle
    List Price:  $695.04 USD
    $516.00 USD

    Available to order · 10 options

  • Cruising

    Spinnaker Halyard

    Diameter
    6 mm (1/4 in)
    Length
    57 ft (17.4 m)
    Hardware
    Shackle
    List Price:  $226.36 USD
    $168.00 USD

    Available to order · 5 options

  • Club Racing

    Spinnaker Halyard

    Diameter
    6 mm (1/4 in)
    Length
    57 ft (17.4 m)
    Hardware
    Shackle
    List Price:  $286.97 USD
    $213.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Spinnaker Halyard

    Diameter
    6 mm (1/4 in)
    Length
    57 ft (17.4 m)
    Hardware
    Shackle
    List Price:  $701.23 USD
    $520.00 USD

    Available to order · 10 options

  • View moreAll Sonata 6 halyards & sheets

Made up to the lengths computed from the Sonata 6's rig dimensions above. Colour and taper are chosen when you add to cart.

Sheets & guys 12

  • Cruising

    Genoa Sheet

    Diameter
    8 mm (5/16 in)
    Length
    31 ft (94 m)
    Hardware
    None listed
    $44.39 USD

    Available to order · 5 options

  • Performance Cruise

    Genoa Sheet

    Diameter
    8 mm (5/16 in)
    Length
    31 ft (9.4 m)
    Hardware
    Soft shackle
    List Price:  $154.55 USD
    $114.00 USD

    Available to order · 4 options

  • Club Racing

    Genoa Sheet

    Diameter
    8 mm (5/16 in)
    Length
    31 ft (9.4 m)
    Hardware
    Soft shackle
    List Price:  $171.57 USD
    $127.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Genoa Sheet

    Diameter
    8 mm (5/16 in)
    Length
    31 ft (9.4 m)
    Hardware
    Soft shackle
    List Price:  $228.93 USD
    $169.00 USD

    Available to order · 8 options

  • Cruising

    Asymmetrical Spinnaker Sheet

    Diameter
    8 mm (5/16 in)
    Length
    41 ft (12.5 m)
    Hardware
    Shackle
    List Price:  $216.43 USD
    $160.00 USD

    Available to order · 5 options

  • Performance Cruise

    Asymmetrical Spinnaker Sheet

    Diameter
    8 mm (5/16 in)
    Length
    41 ft (12.5 m)
    Hardware
    Shackle
    List Price:  $640.70 USD
    $475.00 USD

    Available to order · 4 options

  • Club Racing

    Asymmetrical Spinnaker Sheet

    Diameter
    8 mm (5/16 in)
    Length
    41 ft (125 m)
    Hardware
    None listed
    List Price:  $207.44 USD
    $154.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Asymmetrical Spinnaker Sheet

    Diameter
    8 mm (5/16 in)
    Length
    41 ft (125 m)
    Hardware
    None listed
    List Price:  $282.40 USD
    $209.00 USD

    Available to order · 8 options

  • Cruising

    Symmetrical Spinnaker Sheet

    Diameter
    8 mm (5/16 in)
    Length
    41 ft (12.5 m)
    Hardware
    Shackle
    List Price:  $216.43 USD
    $160.00 USD

    Available to order · 5 options

  • Performance Cruise

    Symmetrical Spinnaker Sheet

    Diameter
    8 mm (5/16 in)
    Length
    41 ft (12.5 m)
    Hardware
    Shackle
    List Price:  $252.03 USD
    $187.00 USD

    Available to order · 4 options

  • Club Racing

    Symmetrical Spinnaker Sheet

    Diameter
    8 mm (5/16 in)
    Length
    41 ft (12.5 m)
    Hardware
    Shackle
    List Price:  $713.81 USD
    $529.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Symmetrical Spinnaker Sheet

    Diameter
    8 mm (5/16 in)
    Length
    41 ft (12.5 m)
    Hardware
    Shackle
    List Price:  $788.78 USD
    $585.00 USD

    Available to order · 8 options

  • View moreAll Sonata 6 halyards & sheets

Made up to the lengths computed from the Sonata 6's rig dimensions above. Colour and taper are chosen when you add to cart.

Compare grades

GradeRope, as described on each productColoursTapered optionFromFilter
Cruising6 lines Cruiser XTS Polyester Double Braid Up to 5 No $44.39
Performance Cruise3 lines DX Performance SK38 with polyester cover Up to 4 No $114.00
Club Racing6 lines S Cup (Stirotec with polyester cover) Up to 7 Yes $127.00
Grand Prix Racing6 lines DX Cup Dyneema SK78 core with polyester coverTN Racing - Stirotex core / Technora Polyester cover Up to 5 Yes $169.00

Rope names are quoted from each product's own description; prices are the lowest option for the Sonata 6. Not sure which grade suits your sailing? Ask us.

Blocks 1

Mainsail covers 2

Parts marked "Sized for this boat" are chosen from the manufacturers' sizing guides (Harken, Forespar, Schaefer) using this boat's published dimensions. Check your boat's equipment before ordering.

Specifications

BuilderSonata
DesignerJim Voysey
Years built1976
Number built166
RigMasthead Sloop
HullSwing Keel
ConstructionFG
Length overall20.2 ft 6.2 m
Waterline length17.4 ft 5.3 m
Beam6.8 ft 2.1 m
Draft0.8 ft 0.24 m
Displacement2,006 lb 910 kg
Ballast500 lb 227 kg
I · foretriangle height23.6 ft 7.19 m
J · foretriangle base8.3 ft 2.53 m
P · mainsail luff19.49 ft 5.94 m
E · mainsail foot8 ft 2.44 m
Forestay length8.3 ft 2.5 m
100% jib area97.9 sq ft 9.1 m²
Mainsail area84.2 sq ft 7.8 m²
Jib + mainsail area182.1 sq ft 16.9 m²
Cruising spinnaker area166.5 sq ft 15.6 m²
I 23.6 J 8.3 E 8.0 P 19.5
Sail plan drawn to scale from the rig dimensions above, in feet. Hull and keel are schematic.

Source: MAURIPRO Sailboat Data, updated 2026-07-01. Always confirm against your own boat.

More for the Sonata 6

Other Sonata models

Questions

What Sonata 6 parts does MAURIPRO carry?

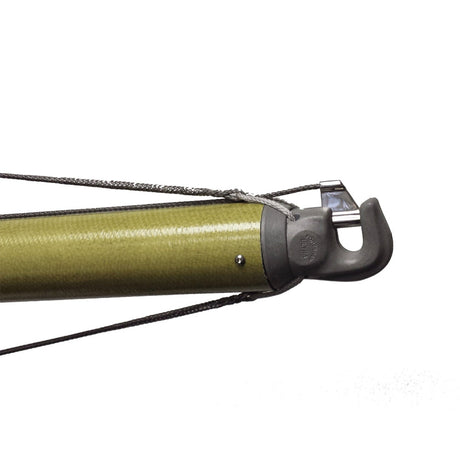

The Sonata 6 page lists halyards and sheets made up to this boat's rig lengths, mainsail covers, sails, winches, blocks, travelers, genoa cars, boom vangs and spinnaker poles sized with manufacturer guides where the boat size allows. Prices and availability shown are live from our catalogue.

How do I know a part fits my Sonata 6?

Halyards and sheets are made up to lengths computed from the Sonata 6's published rig dimensions (I, J, P, E). Other parts are matched with manufacturer sizing guides and are labelled as sized for this boat. Fit can still depend on your boat's year, builder and rig, so check the product details or ask our technical team before you order.

Where can I find the Sonata 6 rig dimensions?

Our Sonata 6 Sailboat Data page lists the rig dimensions (I, J, P, E) and other published data we hold for this boat. Figures come from a sailboat database and may differ from your boat as built.
